• Model NO.：STYE-2000B
• Control：Digital
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Way：Digital Display
• Specimen：for Concrete, Cement, Brick
• Certificate：ISO9001:2000
• Product Name：Concrete Compression Test
• Measuring Range：0-2000kn
• Max.Piston Stroke：90mm
• Piston Free Back Speed：20mm,Min
• Noise：Below 80dB
• Max.Piston Lift Speed：50mm,Min
• Diameter of The Piston：Dia250mm
• Transport Package：Standard Wooden Packing
• Specification：950X400X1560mm
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. STYE-2000B Control Digital Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Under Display Way Digital Display Specimen for Concrete, Cement, Brick Certificate ISO9001:2000 Product Name Concrete Compression Test Measuring Range 0-2000kn Max.Piston Stroke 90mm Piston Free Back Speed 20mm/Min Noise Below 80dB Max.Piston Lift Speed 50mm/Min Diameter of The Piston Dia250mm Transport Package Standard Wooden Packing Specification 950X400X1560mm Trademark YF Origin China HS Code 9031809090 Production Capacity 10000pieces/Year

Product Description

Product Description:STYE-2000B concrete compression testApplication:

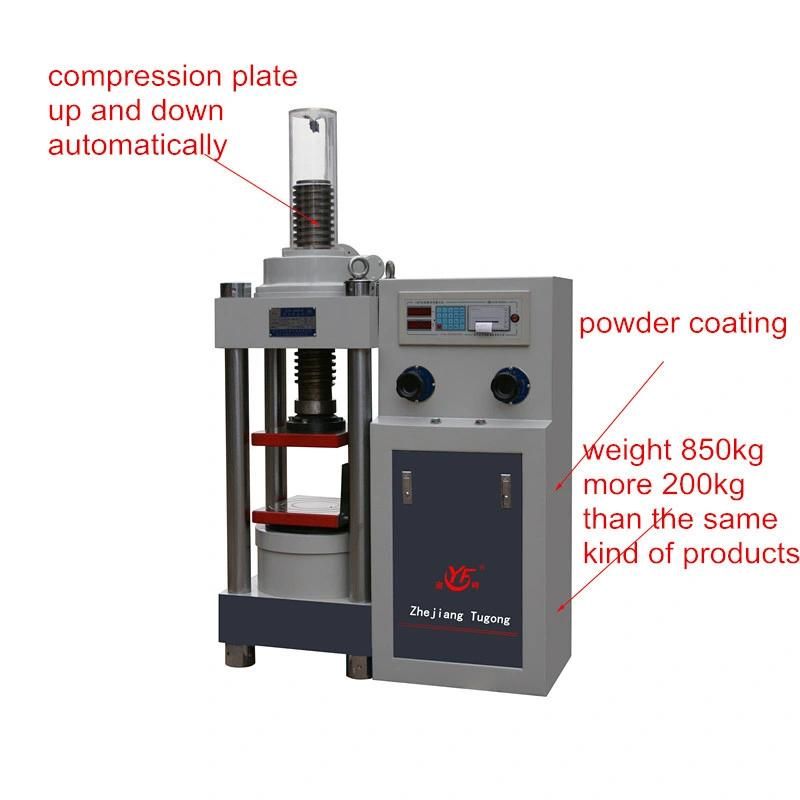

STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes and cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:
Screw pole automatic moving
Efficient hydraulic power packs
Economic machines ideal for site use
Designed to meet the need for a simple, economic  and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.
Specification:

STYE-2000B
Max. Testing power: 2000kN
Measuring range: 0-2000kN
Relative indication error: ±1%
Max. distance between the up and down
bearing plates: 310mm
Max. piston stroke: 90mm
Diameter of the piston: Φ250mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 950×400×1560mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Noise: ≤80Db

Why choose us:

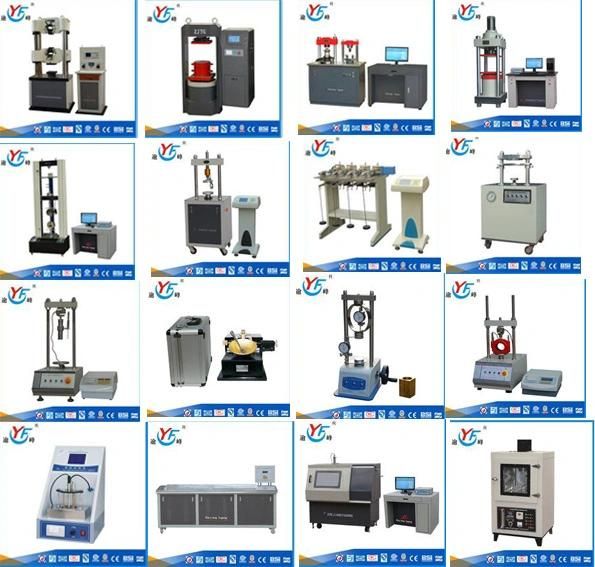

a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.




b. Good quality control


c.Competitive price, save your money.

d. We are factory

FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.
