DC Winding Resistance Test equipment Test of Transformer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：DC Winding Resistance Test equipment Test of Transf
  • Resolution：1μΩ
  • Max. Error：0.2%Rdg+2D
  • Voltage Output：20V
  • Power Supply：AC220V±10%% 50Hz,60Hz
  • Working Environment：-10ºC-+40ºC Rh≤85%

Base Info

  • Model NO.：GDZC
  • Application：Measurement of DC Resistance
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

PARAMETERGDZC-5GDZC-10GDZC-100GDZC-20S
(SINGLE&THREE PHASE)Max. test current5A10A25A, 50A, 100ASingle phase:
1A,5A,10A,20A, 40A
Three phase:
1A, 5A, 10A, 20AMeasuring range1mA: 10Ω~20KΩ
10mA: 1Ω~2KΩ
1A: 10mΩ~20Ω
5A: 1mΩ~4Ω1Ω~1000Ω(20mA)
100mΩ~100Ω(200mA)
10mΩ~20Ω(1A)
4mΩ~8Ω(2.5A)
1mΩ~2Ω(10A)200μΩ-800 mΩ(25A)
100μΩ-400 mΩ(50A)
50μΩ-200mΩ(100A)Single phase:
10mΩ~20Ω(1A)
1mΩ~4Ω(5A)
1mΩ~2Ω(10A)
1mΩ~1Ω(20A)
1mΩ~0.5Ω(40A)
Three-phase:
10mΩ~6Ω(1A, each phase)
1mΩ~1Ω(5A, each phase)
1mΩ~0.6Ω(10A, each phase)
1mΩ~0.3Ω(20A, each phase)Resolution1μΩ1μΩ1μΩ1μΩMax. Error0.2%RDG+2D0.2%RDG+2D0.2%RDG+2D0.2%RDG+2DVoltage Output20V20V20V20VPower SupplyAC220V±10%% 50Hz/60HzWorking Environment-10ºC-+40ºC RH≤85%
  • Product Show:

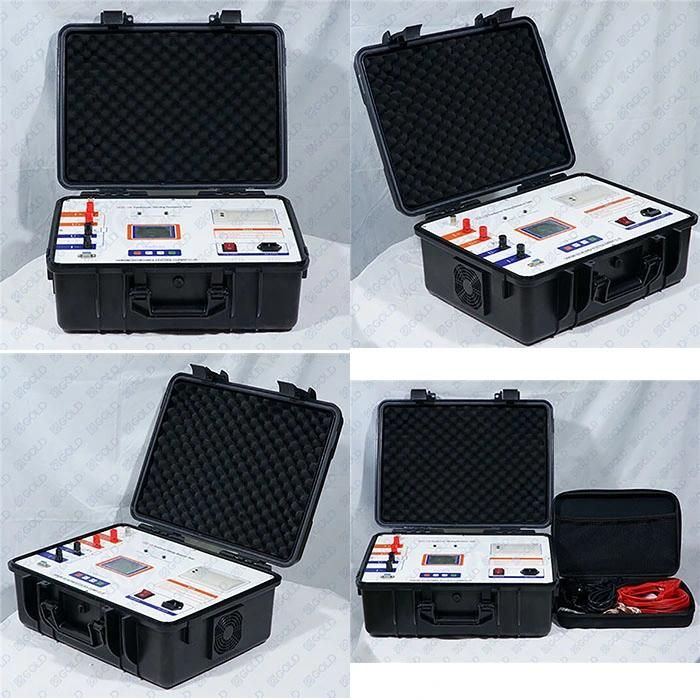

DC Winding Resistance Test equipment Test of Transformer
