Photovoltaic Module Hail System Testing Machine with Solar Panel IEC61215-2: 2016 Testing

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：Hail Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HTPV-09BC
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Product Name：Hail Testing Machine
  • Material：Stainless Steel and Aluminum Alloy
  • The Barrel Length Approx：940mm
  • Ice Ball Speed：23.0m,S
  • Ice Ball Diameter：25 mm
  • Impact Area：2000*1000mm
  • Air Pressure：6-8bar
  • Speed Catch Range：0~50 M,S
  • Warranty：One Year
  • Transport Package：Strong Wooden Case
  • Specification：IEC 61215 standard
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

Launch devicea. power source is air compressor
b. Air pressure :6-8bar
c.Ice ball single filled by manual
d. the barrel length approx 940mm
e. the barrel can changeMoving locating devicea. x shaft move distance approx 2100mm
b. y shaft move distance appprox 1100mm
c. locating accurate:≤1mm
d. Impact area:2000×1000mm
e. Guide ways i high quality import guide rail
f. Driving ways adopt import servo motor+synchronous wheel
g.Locaing control ways i spc control and automaitc locatingTest velocity system and theorya. via determine ice through the infrared test velocityy sensor, meanwhile catch byh the breaking time T, according to V=S/t calculation ice ball flight velocity
b. Test speed sensor use high accurate infrared test speed sensor
c.Infrared test speed sensor accurate±5%
d.Speed catch range 0-40m/s
e.Ice ball speed: diameter 25mm, ice ball speed 23.0m/s ±5%
                           diameter 35mm, ice ball speed 27.2m/s±5%
                           diameter 45mm, ice ball speed 30.7m/s±5%Ice mmake ways and moulda. take the ice mould filled water and placed in the refrigerator freezing chamber, waiting for the water cooling after, take the mould separate take out ice ball, placed in the ice ball storage chamber cold storage spare
b. inner cavity diameter 25mm, 35mm, 45mm
c. one mould have 6 ice balls , one specifications at least have 2 sets of mould
d.one mould have 6 ice balls , one specifications at least have 2 sets of mould
e. mould inner cavity process technical use high accurate CNC machine processing
f. ice ball diameter 25mm<5%, 35mm<5%, 45mm<5%
g.Ice ball weight :7.53g<5%, 20.7g<5%, 43.9g<5%Control ways Computer contorl Electricity220V 60HZImpact pointConform IEC61215 testing standard requirement, 11 impact point

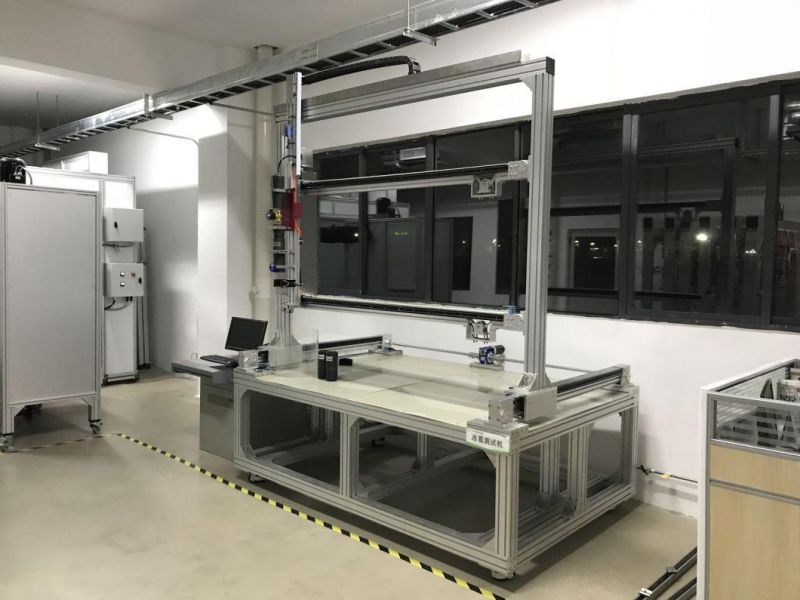

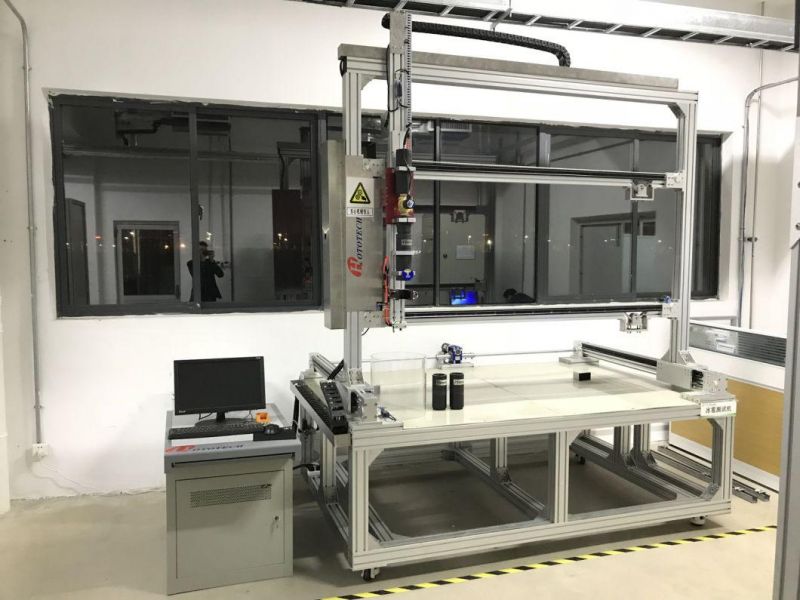

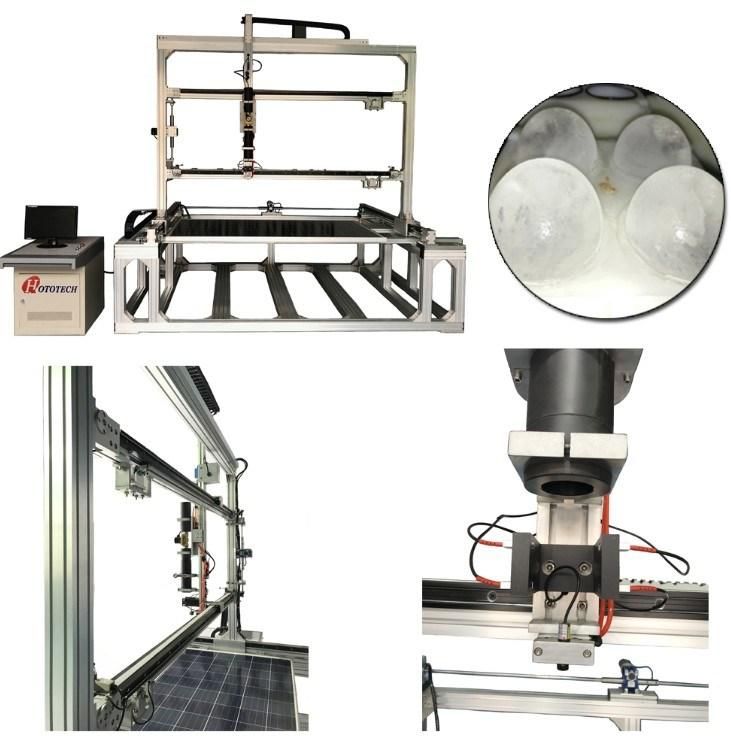

Photovoltaic Module Hail System Testing Machine images display
