• Model NO.：HD-P303
• Weight：100-500Kg
• Power Source：AC220V
• Certificate：ISO9001: 2008
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Deposit
• Drop Hammer Weight：(En)20± 0.2kg, (BS, ANSI) 22.7kg
• Falling Altitude：(En)0-1100mm
• Impact Capability：(En)200j, (BS, ANSI)100± 2j
• Impact Blade Ring：(En)3± 0.1mm R, (ANSI)25.4 D
• Horsepower：AC 1,8HP
• Volume-Mainframe：21.5*19*12.6
• Design Criteria：BS-953, 1870, En-344, ANSI-Z41
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9023000000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-P303 Weight 100-500Kg Power Source AC220V Certificate ISO9001: 2008 Warranty Period One Year Delivery Time 15 Days After Receive The Deposit Drop Hammer Weight (En)20± 0.2kg, (BS, ANSI) 22.7kg Falling Altitude (En)0-1100mm Impact Capability (En)200j, (BS, ANSI)100± 2j Impact Blade Ring (En)3± 0.1mm R, (ANSI)25.4 D Horsepower AC 1/8HP Volume-Mainframe 21.5*19*12.6 Design Criteria BS-953, 1870, En-344, ANSI-Z41 Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China HS Code 9023000000 Production Capacity 150 Sets Per Month

Product Description

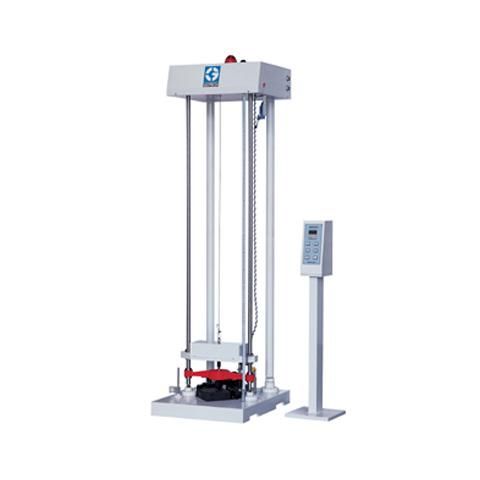

 Safety Shoes Compression Test Machine China Supplier
Product Introduction
Safety Footware Impact Tester comply with EN, ANSI, BS, CSA regulations. Impacting the the steel toe caps of satety shoes through 100J or 200J power, then observe the sinkage to value its quality. The design is different among EN, ANSI, BS, CSA, so please prescribe the regulation when ordering.



Standard Parameters:

Model	HD-306
Drop hammer weight	(EN)20± 0.2kg, (BS, ANSI) 22.7kg
Falling altitude	(EN)0-1100mm
Impact capability	(EN)200J, (BS, ANSI)100± 2J
Impact blade ring	(EN)3± 0.1mm R, (ANSI)25.4 D
Horsepower	AC 1/8HP
Volume-mainframe	21.5*19*12.6
Weight	227kg
Power	AC220V, 2A
Design criteria	BS-953, 1870, EN-344, ANSI-Z41 CSA-Z195, ISO8782

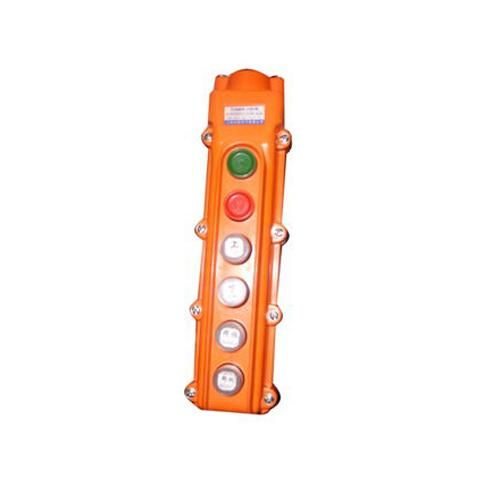

Program control instruction:
Function instruction:
(up): Control the beam and its rise when it grips the impact head
(down):Control the beam and its fall when it grips the impact head
ON/OFF:Switch on the control panel
(release):The impact falls down (the test method is as follow)
Note :The impact speed in the range of 4.35~4.5 is normal
(The speed is shown on the speed chart)



HAIDA Company Introduction:

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.




If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
