• Model NO.：QT-10095
• Trademark：SUZHOU QIANTONG
• Origin：Jiangsu, China
• HS Code：9024109000
• Production Capacity：231 Sets

Basic Info.

Model NO. QT-10095 Trademark SUZHOU QIANTONG Origin Jiangsu, China HS Code 9024109000 Production Capacity 231 Sets

Product Description

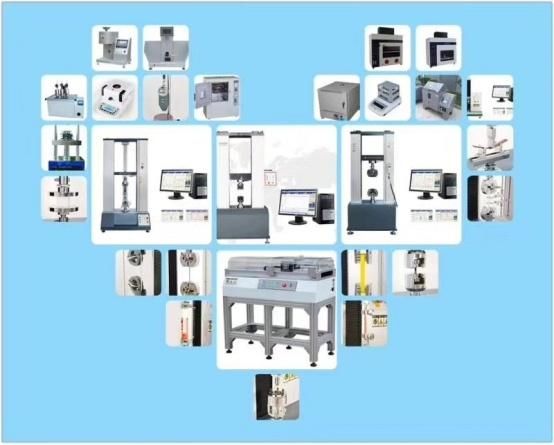

1. Qiantong main scope of testing machinesElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)2. Product
Meeting standard:GB/T12347-2008,YB/T5196-2005,YB/T5197-2005
It can test the number of bending fatigue when the first wire/ a group/ all is fractured. Or the sample arrived at the number of special bending fatigue.3. Specifications 3.1 sample diameter 1.6mm-10.0mm
3.2 specimen bending fatigue frequency 20-120 times/min
3.3 the tension value of the sample is 20n-600n
3.4 display by touch screen
3.5 motor 1.5kw
3.6 external size 1500×600×1465(mm)
3.7 weight about 800kg
3.8 ambient temperature: -10ºC-40ºC
3.9 power supply: 220V 50Hz
