• Model NO.：TD-508C,TD-508D
• HS Code：90248000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. TD-508C/TD-508D HS Code 90248000 Production Capacity 500 Sets/Year

Product Description

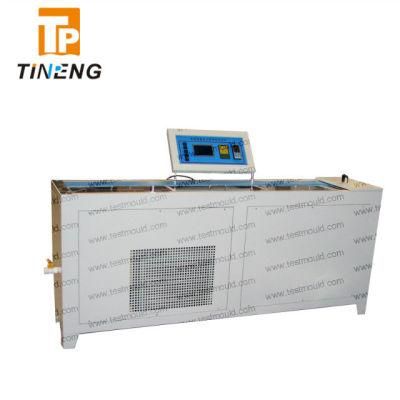

Asphalt Ductility testing machine

STANDARD: ASTMD113

    Test the length of asphaltum when asphaltum is drawn to break under certain temperature and speed.
    The machine can perform three simultaneous tests. The bath is fi tted with an immersion heater in order to obtain, in normal conditions, the 50°C test temperature using, as stabilising element, the cold water circulation in the stainless steel interspace.


Model TD-508C
Maximum measuring length: 2000mm  1500mm
Stretch slider speed: 10mm/min or 50mm/min   convenient to switch
Stretch motor power: servomotor   power adjustable
Water bath mixing pump: 45W
Electric heating tube power: 2KW
Refrigeration power: 2KW
Water bath temperature range: 0-50ºC
Temperature controlling precision: ±0.1ºC
Refrigeration capacity: 4000 cal/min
Working power source voltage: 220V 50HZ
Dimension: 2680×450×950mm
Weight: 210kg

Ductility mould and ductility mould plate
It is made of brass, accurately machined to the specified dimension. This need to be ordered separately.
