• Model NO.：EDIAG BM310
• Material：Plastic & Copper
• Certification：Ce
• Features：Copper Clips
• Transport Package：Carton
• Specification：0.1kg; 4.7*2*0.7inch
• Trademark：EDIAG
• Origin：China
• HS Code：9031809090
• Production Capacity：1000000

Basic Info.

Model NO. EDIAG BM310 Material Plastic & Copper Certification Ce Features Copper Clips Transport Package Carton Specification 0.1kg; 4.7*2*0.7inch Trademark EDIAG Origin China HS Code 9031809090 Production Capacity 1000000

Product Description

EDIAG BM310 Auto Battery Mate Supporting 12V Gasoline Car Motorcycle

Why choose our products?
1. All products in our company are 100% original EDIAG products.
2. The lowest price in whole Made-in-China.
3.Overseas warehouse: Fast shipping & Seller paying customs tax for EU countries.
4.Countries with local free return: United States, Canada, Australia, United Kingdom, France, Spain, Germany, Russia, Brazil, Israel, South Korea, Saudi Arabia, UAE, Poland, Netherlands, Italy. ( Note: If products are blamed of any quality problem, free return service to local country will be open. )

Top 4 Reasons to Choose BM310 :
1 : Battery Mate: For 12V Car battery health condition checking with 6 LEDs' display indicating condition.
2 : Alternator check: Accelerate your engine to 2000 rpm when the green light is lit ,charging circuit is ok.
3 : Pure copper wire and clips, good conductivity, accuracy reaches 0.1V, high sensitivity.
4 : Reverse protection function. Misoperation will not lead to burnout of the product, the same product on the market does not have this function.



Product Introduction :

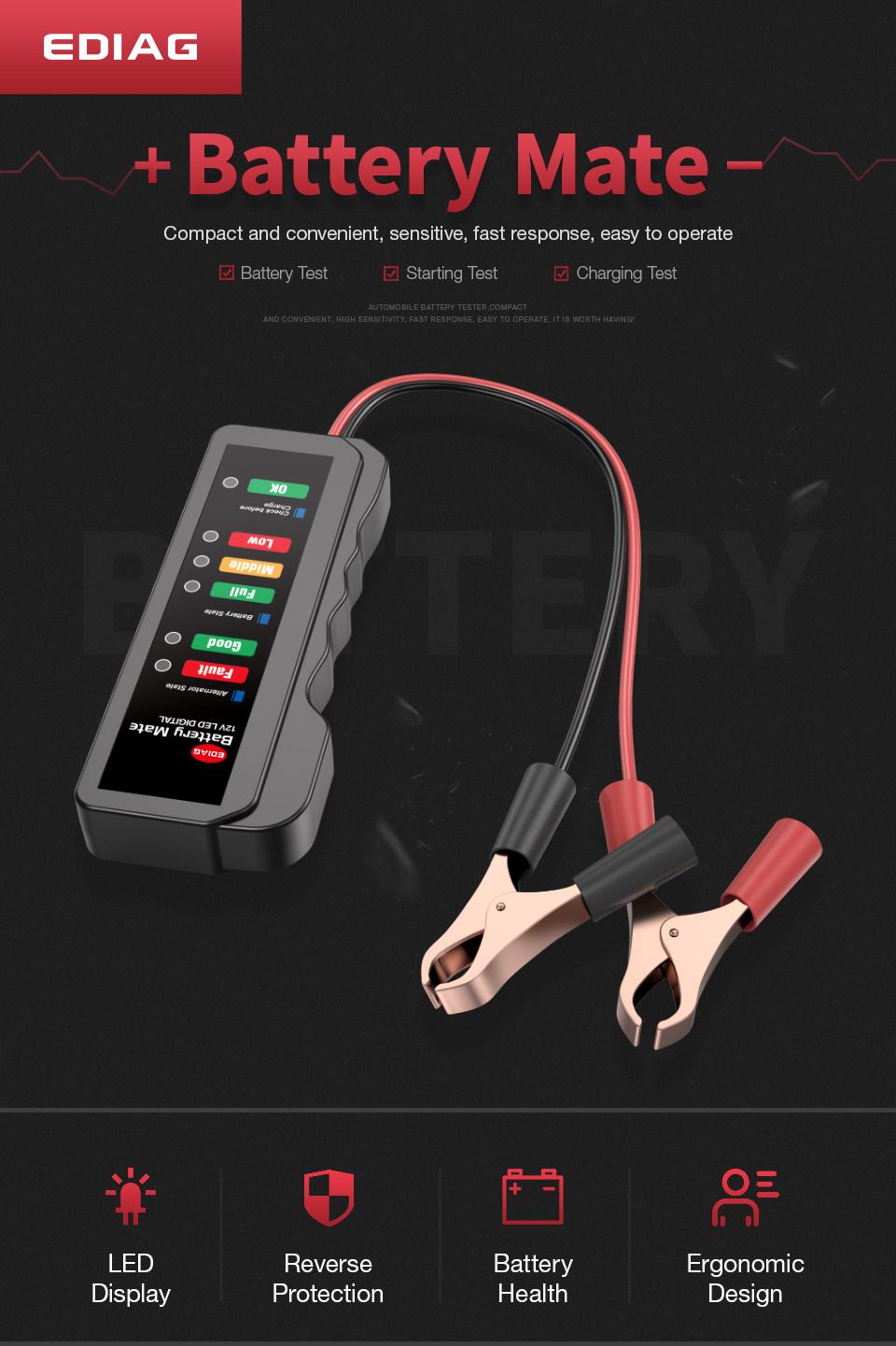

BM310 is a professional digital battery mate especially for 12V gasoline automobile as well as motorcycle.
It is a simple but efficacious battery testing tool which is capable of determining the battery state with 6 LEDs' display indicating the battery health condition, and it's very easy to use and be understood.

SKU:SR74,SR74-D01,SR74-D02,SR74-D03



Main Functions of BM310 :
1. Checking charge level
2. Functional test of battery
3. Checking battery starting capability
4. Battery overload display



How to use the battery mate BM310 ?

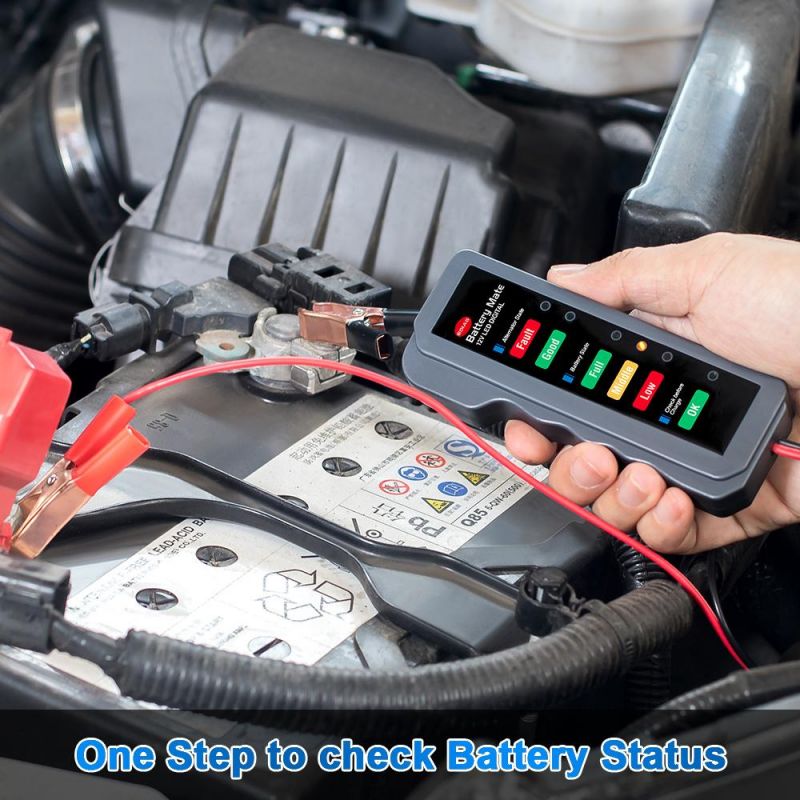

Connect the test clips to the positive and negative position of battery, and check the 6 LEDs' display to know the car battery condition.



Connections:
Attach the cable clip of the red cable to the plus point( + ) of the battery and the cable clip of the black cable to the minus point( - ) of the battery.

6 LED Lights:
Alternator state check :
First light (red) : Fault
Second light (green) : Good
Third light (green) : Full
Battery state check :
First light (yellow) : Middle
Second light (red) : Low
Third light (green) : OK







Different LED light's display to show Battery State :

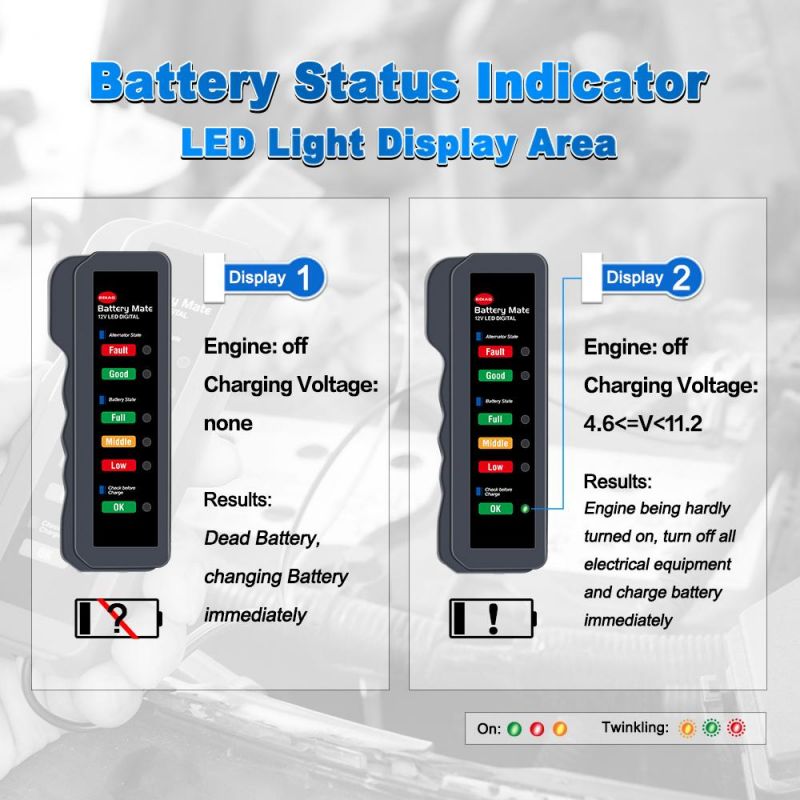

Display 1 : All LED lights off; Testing results: none Charging Voltage, Dead Battery.
Display 2 : "ON" LED twinkling, other LED off; Testing results : 4.6-11.2V Charging Voltage, Engine being hardly turned on, turn off all electrical equipment and charge battery immediately.

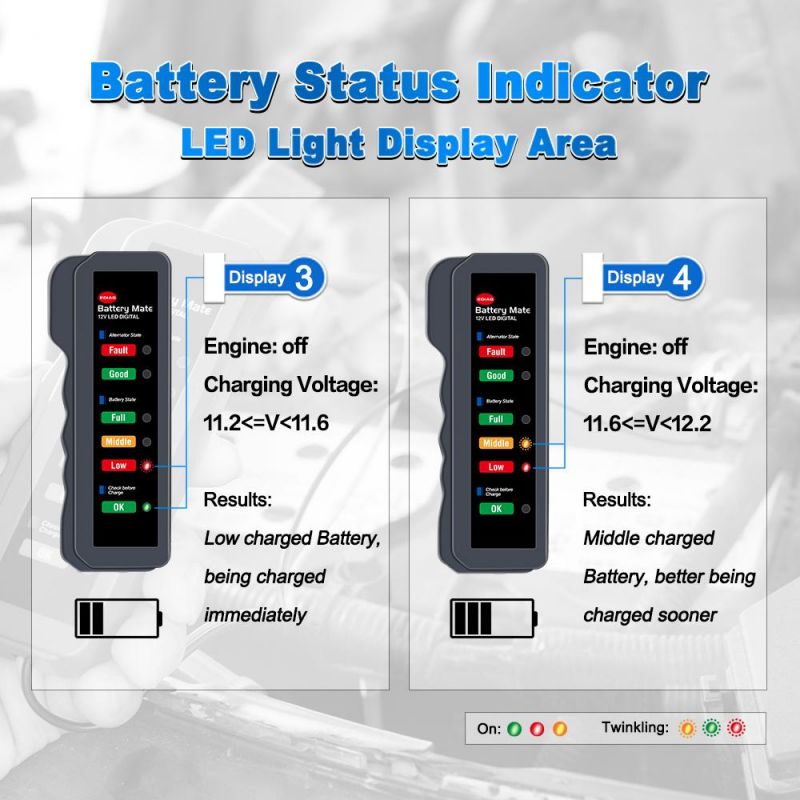

Display 3 : "ON" LED ON, "LOW" LED twinkling; Testing results : 11.2-11.6V Charging Voltage, Low charged Battery, being charged immediately.
Display 4 : "Low" LED on, "Middle" LED twinkling; Testing results : 11.6-12.2V Charging Voltage, Middle charged Battery, better being charged sooner.

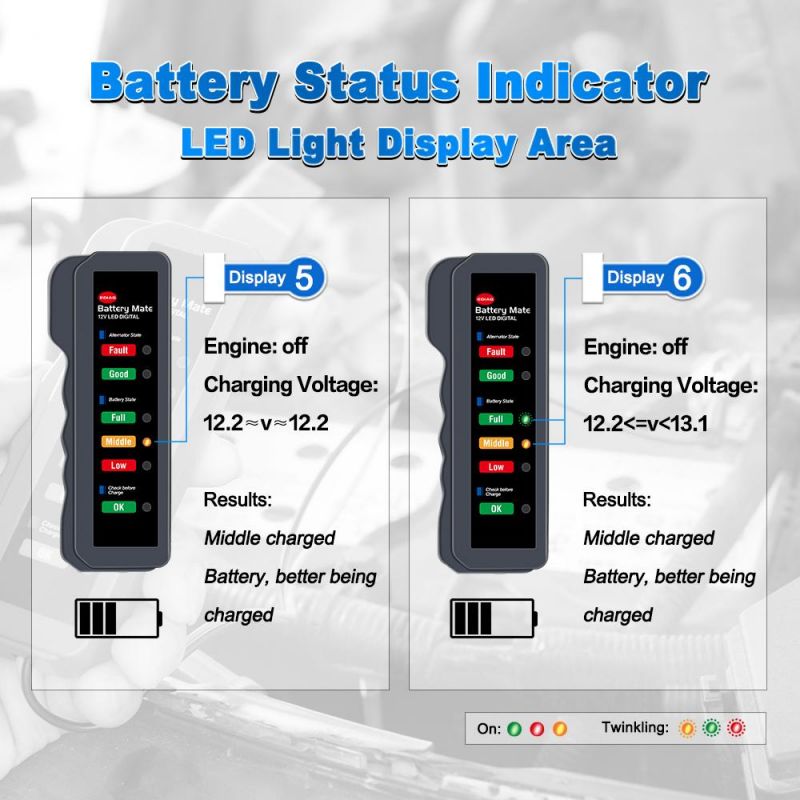

Display 5 : "Middle" LED on; Testing results: 12.2V Charging Voltage, Middle charged Battery, better being charged.
Display 6 : "Middle" LED on, "Full" LED twinkling; Testing results: 12.2-13.1V Charging Voltage, Middle charged Battery, better being charged.

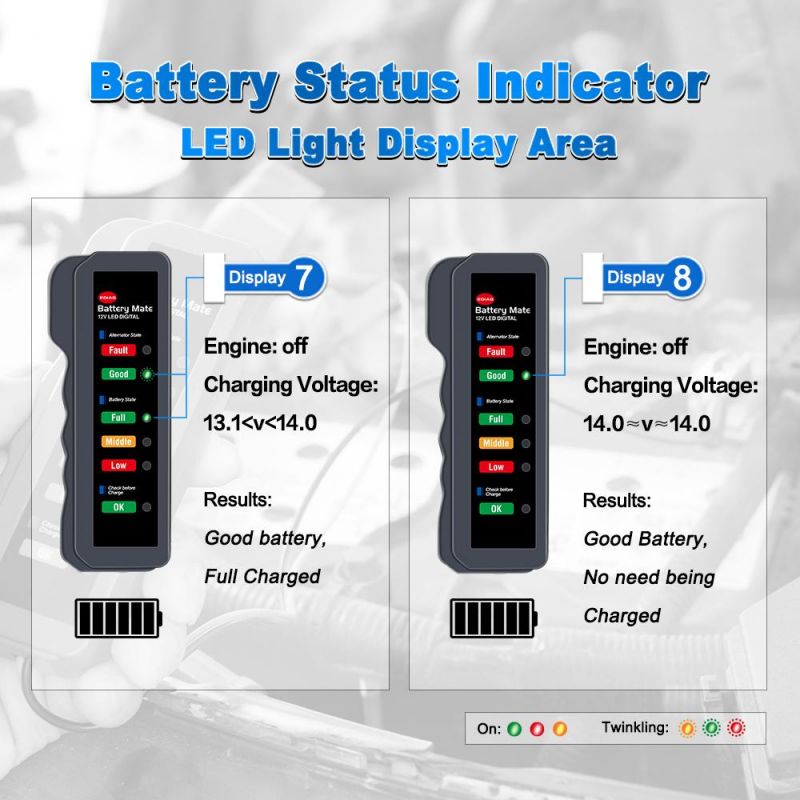

Display 7 : "Full" LED on, "Good" LED twinkling; Testing results: 13.1-14V Charging Voltage, Good battery, Full Charged.
Display 8 : "Good" LED on; Testing results: 14V Charging Voltage, Good battery, Full Charged.

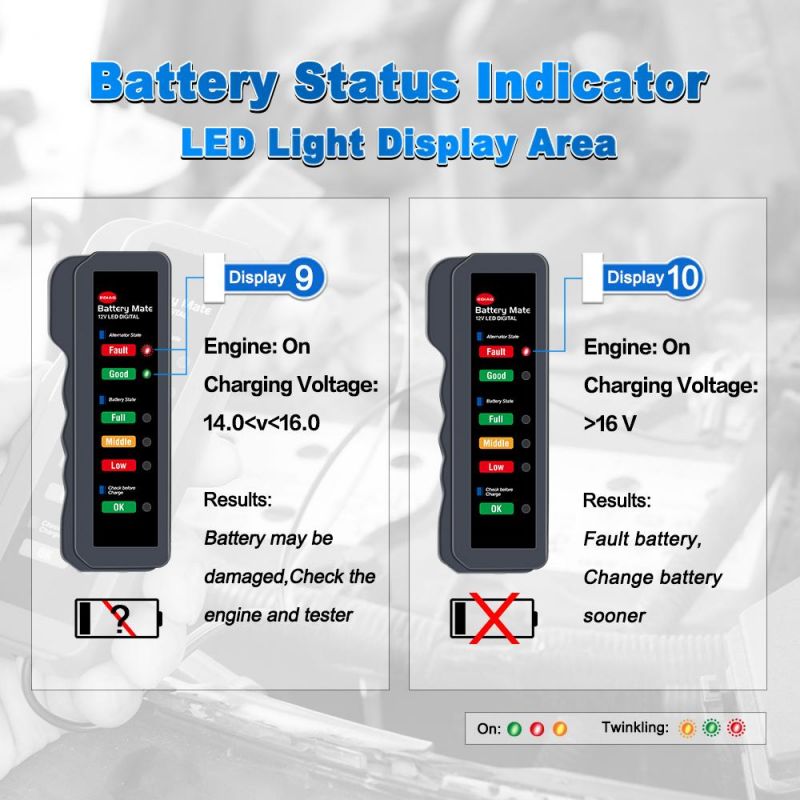

Display 9 : "Good" LED on, "Fault" LED twinkling; Testing results: 14-16V Charging Voltage, Battery may be damaged, Check the engine and tester.
Display 10 : "Fault" LED on; Testing results: Above 16V Charging Voltage, fault Battery.



Specifications:

Item Type	car battery tester	Maxium Voltage	12V
LED quantity	6 (2 red, 3 green & 1 yellow)	Maxium Current	15A
Color	grey/blue/orange/yellow/red	Item Weight	around 0.1kg
Material	plastic, copper	Item Volume	12*5.2*1.8cm³ / 4.7*2*0.7inch
Features	copper clips	Material of Wire	0.06 mm² copper
Certifications	CE	Wire Length	25cm / 9.84inch

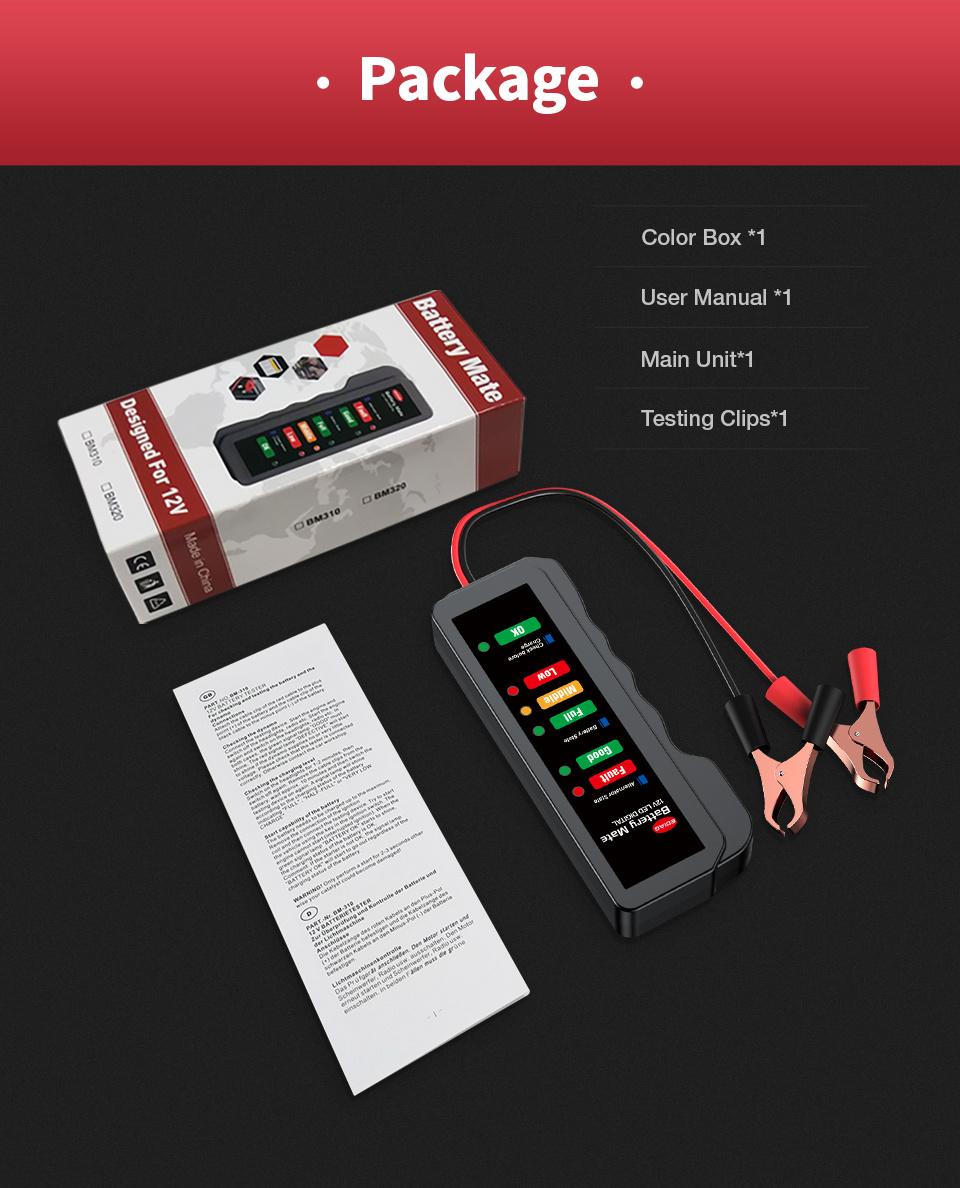

Packing List of BM310 :
12V Digital Battery Alternator Tester *1
User Manual *1
Color Box *1
Testing Clip *2

Warm Tips :
EDIAG BM310 is a kind of car battery mate designed for testing car batteries outside vehicles.
