• Model NO.：STYE-1000(Equip Safety Door)
• Control：Digital
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Way：Digital Display
• Specimen：for Concrete, Cement, Brick
• Certificate：ISO9001:2000
• Product Name：1000kn Compression Test Equipment
• Measuring Range：0-1000kn
• Size of The Bearing Plate：300X250mm
• Max.Piston Stroke：90mm
• Piston Free Back Speed：20mm,Min
• Noise：Below 80dB
• Door：Have Equip Safety Door
• Transport Package：Standard Wooden Packing
• Specification：950x420x1160mm
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. STYE-1000(Equip Safety Door) Control Digital Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Under Display Way Digital Display Specimen for Concrete, Cement, Brick Certificate ISO9001:2000 Product Name 1000kn Compression Test Equipment Measuring Range 0-1000kn Size of The Bearing Plate 300X250mm Max.Piston Stroke 90mm Piston Free Back Speed 20mm/Min Noise Below 80dB Door Have Equip Safety Door Transport Package Standard Wooden Packing Specification 950x420x1160mm Trademark YF Origin China HS Code 9031809090 Production Capacity 10000pieces/Year

Product Description

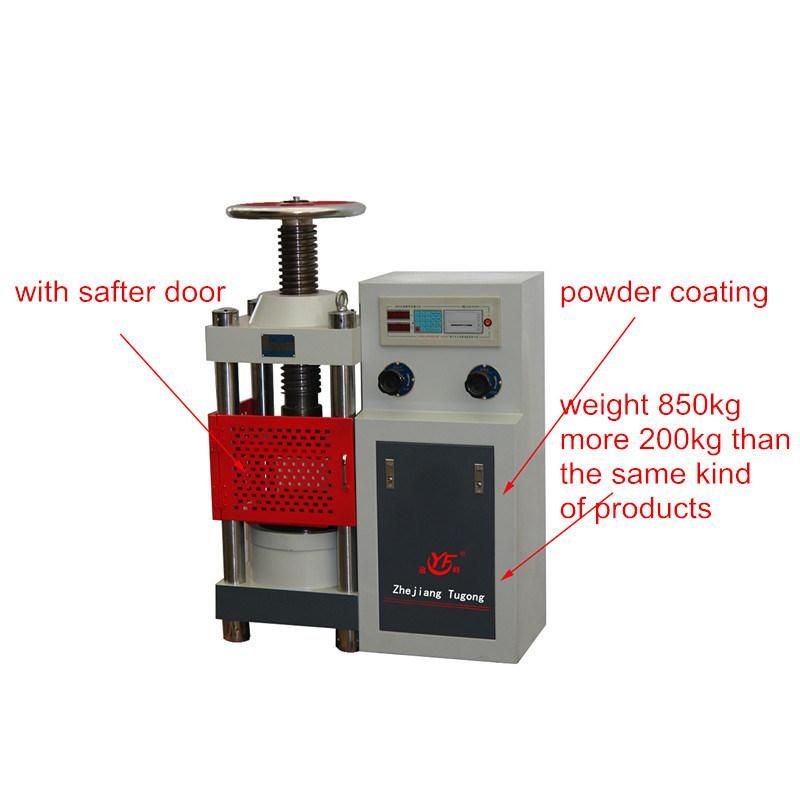

Product Description:STYE-1000KN 1000KN Digital Display Hydraulic Compression Test Equipment with equip safety door

Use:
    STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes,cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:
Efficient hydraulic power packs
Economic machines ideal for site use
Designed to meet the need for a simple, economic and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines inthe range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.

Specification:
STYE-1000
Max. testing power: 1000kN
Measuring range: 0-1000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 300×250mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 900×400×1090mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 650KGS
Noise: ≤80Db


Why choose us:
a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


b. Good quality control


c.Competitive price, save your money.

d. We are factory

FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.

Send us an inquiry and we will contact you soon!
If you want to know more,pls view our official website:cnzjtg.en.made-in-china.com
