• Model NO.：GBW-60B
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Computer Display
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Plywood Exporting Package
• Specification：270kg 1.3CMB
• Trademark：HST
• Origin：Jinan, Shandong, China
• HS Code：9031809090
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. GBW-60B Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Computer Display Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Transport Package Plywood Exporting Package Specification 270kg 1.3CMB Trademark HST Origin Jinan, Shandong, China HS Code 9031809090 Production Capacity 1000 Sets/Month

Product Description

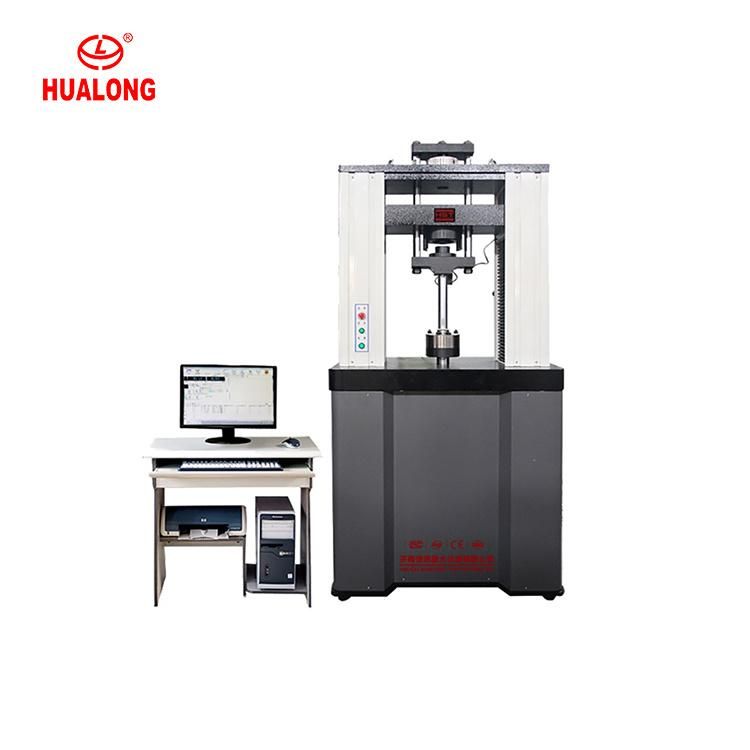

GBW-60B Computerized Erichsen Cupping Testing Machine

Application:
The Cupping testing Machine ( Erichsen Tester ) is precise technology testing machine which is used for sheet metal &  strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .

Standard:
It conforms to ASTM E 643-78 & GB4156-84 named Testing Machine for Metal Cupping test

Feature:
1, Computer control operation, according to the preset program and data, automatic clamping, stamping, measurement, calculation, parking
2, Auto stop when crack appears, convenient to observe the crack;
3, With computer controlled the test, user can easy get test report, and save, recall, print test result;
4, Turnover grips, punch and sample is easy to change;
5, With peak value memory function, like max. punch load, max. deformation deep etc;
6., Adopting a composite oil cylinder can meet hydraulic clamp and press piston and cylinder;

Specification:

Model	GBW-60B
Specimen thickness	Standard 0.1-2mm,( Non-Standard 0.1-3mm)
Max. Specimen Width	100mm
Max. Punch stroke	60mm
Clamping piston stroke	19-21mm
Max. Cupping Force	60kN
Max. Clamping Force	25kN
Test mold specifications (Standard)	Punch diameter:Φ20±0.05mm,cushion mold hole diameter : Φ33±0.1mm Fixed mold hole diameter: Φ27±0.05mm Standard press mold hole diameter : Φ27±0.05mm; ( Non-Standard )
Test mold specifications (Non-Standard)	Punch diameter : Φ15±0.05mm , Φ8±0.02mm, Φ3±0.02mm Press mold hole diameter : Φ18±0.1mm, Φ10±0.1mm ,Φ3.5±0.1mm Fixed mold hole diameter : Φ21±0.02mm ,Φ11±0.02mm , Φ5±0.02mm
Display resolution	0.01mm
Display value	Clamping force, stamping force, displacement and cup drawing value, speed rate, drawing force - displacement curve
Control method	Computer automatic test process
Structure features	Composite cylinder, double oil pump supply oil, grating measurement

 Configuration :

1. 60KN Cupping test machine host --- 1 Set;
2. Cupping test control systems --- 1 Set ;
3. The electrical control system --- 1 Set ;
4. Standard punch pin punch mold  --- 1 Set ;
5. 10Mpa sensor --- 1 Pc
6. 20 Mpa sensor --- 1 Pc
7. Computer with accessories --- 1 Set
8. Testing machine dedicated control software under the Windows operating environment --- 1 Set
