• Model NO.：PN-HT300
• Specification：ISO
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：500sets,Year

Basic Info.

Model NO. PN-HT300 Specification ISO Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 500sets/Year

Product Description

1. INTRODUCTION:

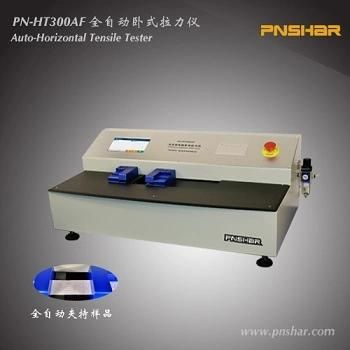

High precision Horizontal paper tensile strength tester is used to measure paper (specially tissue paper), aluminum foil, aluminum, etc for tensile strength, tensile absorbed energy index, elongation, breaking length ect.
1). Tensile force, tensile strength, fracture length, tensile energy absorption, tensile index, tensile energy absorption index of paper
2). Tensile force, tensile strength, peel strength and elongation of foil and aluminum polymer tape
3). Tensile strength, elongation and tensile modulus of elasticity of plastic membrane
4). Heat-sealing strength, tensile strength and peel strength of food packing bags
5). Adhesive strength, edge strength, tensile strength and elongation of sanitary napkins
6). Peel strength and tensile strength of pressure sensitive adhesive tape
7). Fracture strength and elongation of synthetic fiber
8). Easy slide degree of pulling chain.
2. APPLICATIONS:
Paper(specially tissue paper), Newsprint,as well as Packaging Papers, Liner, Medium, Foils, Low elongation films, Plastic film
3. STANDARDS:ISO1924-2,GB/T12914

NO.	ITEM	SPECIFICATION
1	Power supply:	AC220V±10%, 2A 50Hz
2	Accuracy:	±1%
3	Resolution:	0.1N
4	Force value resolution:	0.1N (0.01N for 0.6-30N testing range.)
5	Testing range:	0.6-30N(for toilet paper)/2-100N/6-300N
6	Work speed:	≤300.0mm/min (digital adjustable)
7	Chuck space:	20-300mm (digital adjustable)
8	Human machine interface:	LCD screen, tensile curve display at real time
9	Communication output:	Standard RS232
10	Printer:	Built-in micro printer
