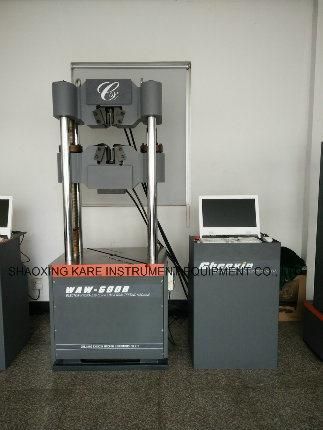

• Model NO.：WAW-600B
• Power Source：AC380V
• Oil Cylinder Position：Under
• Column Qty：4
• Lead Screw Qty：2
• Transport Package：Wooden Case
• Origin：Zhejiang
• HS Code：9024101000
• Production Capacity：20 Sets,Month

WAW-500(600)BMax. testing force500KN (600)Measuring range10~500KN (12~600KN)Min. resolution0.01KNMax. tensile test space≥700mm
≥670mmFlat sample holding thickness0-15mmDiameter of round specimen13-40mmPiston stroke250mmUpper and lower platen size (mm)Φ235Bending test pressed rolling distance100~600mmTensile and compression space between two columns≥565mmMax. platen rise speed≥70mm/minMax. moving beam speed≥300mm/minMotor power≈2.1KWMain body dimension (L×W×H) (mm)880×600×2240Control & measurement cabinet dimension(L×W×H) (mm)1080×650×1200Weight≈2500KgNoise≤75dB
