• Model NO.：GW-026C
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-026c
• Sampling：3 PCS
• Test Table Speed：25.4mm,S
• Test Table Size：305*305mm
• Specimen：76*76*64mm
• Volume：63*47*158 Cm
• Transport Package：Wooden Case
• Specification：44*26*48mm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-026C Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-026c Sampling 3 PCS Test Table Speed 25.4mm/S Test Table Size 305*305mm Specimen 76*76*64mm Volume 63*47*158 Cm Transport Package Wooden Case Specification 44*26*48mm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

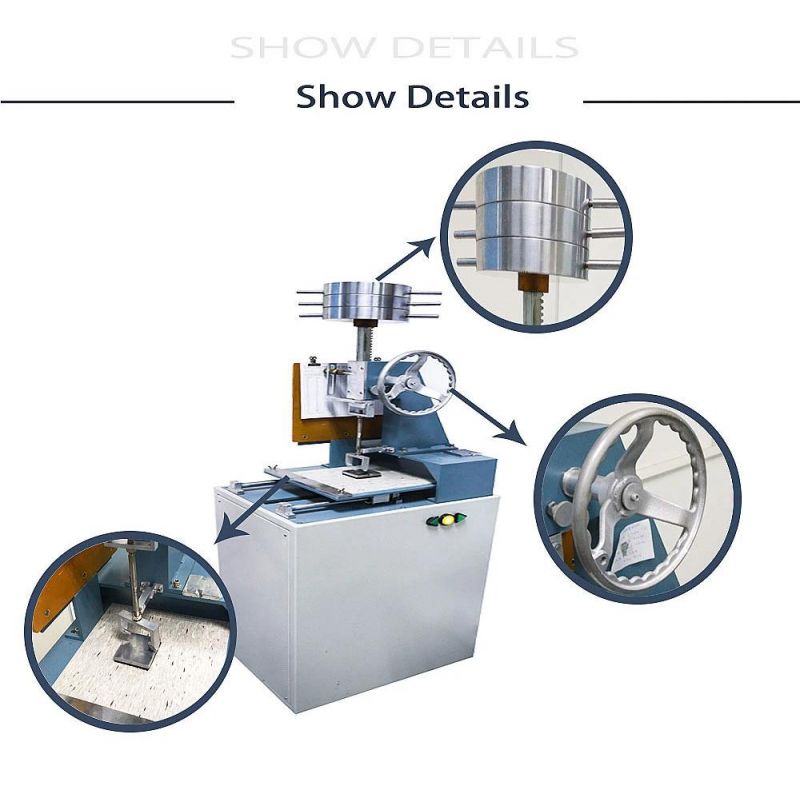

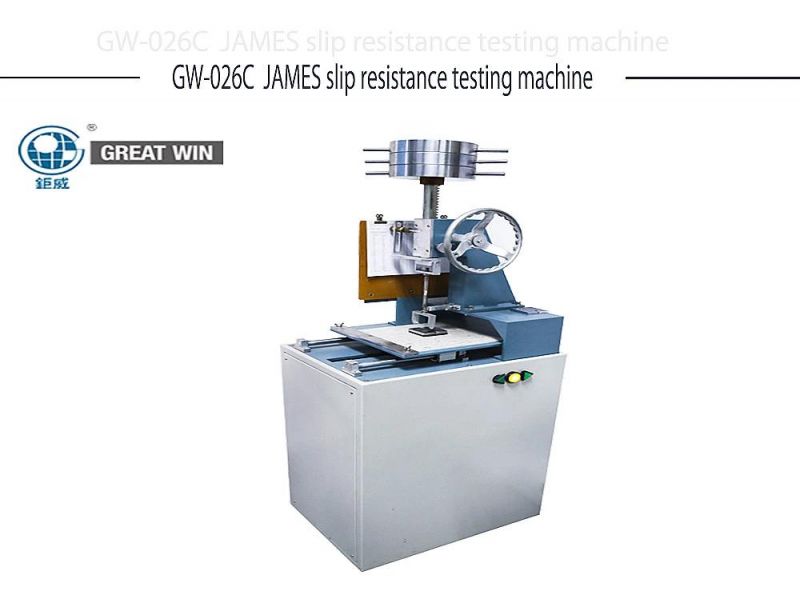

       JAMES slip resistance testing machine(GW-026C )

•Brief introduction:
This tester is used to determine the dry static coefficient of friction of shoe sole and the heel materials, under the specified load on a controlled walking surface, calculate its tangent and perpendicular forces to get the static coefficient of the friction.

•Technical Specifications:

Model	GW-026C  JAMES slip resistance testing machine
weight:	25lb*3(pieces)
Weight setting:	5lb
Test table speed:	25.4mm/sec.
Test table size:	305*305mm
specimen:	76*76*64mm
Volume:	63*47*158cm
Weight:	150kG


•Standard for:
ASTM-F489 ASTM D2047

•Attached accessories:
specimen setting 2 PCS
Automatic test pen 1 Set(with 5 PCS refills)
Standard test table 2 PCS
Test sheet 100 Pages






What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
