• Model NO.：YUV-080
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Good Package
• Specification：126L
• Trademark：Yuanyao
• Origin：China
• HS Code：8419899090
• Production Capacity：100000

YUV-080Test area size W×H×D(cm)40×50×40Exterior chamber size W×H×D(cm)Depends on the chamber designperformanceTemp.rangeRT+10ºC~70ºCHumi.range75%RH~95%RHRain time1~99999mins,adjustableRain period1~240mins,interval adjustableLight modelUV-A(295~360nm),UV-B(280~315nm)optionalUVA/UVB light power40W(lifetime 1800h)Irradiance1.0W/m² adjustableStandard specimen size75×150mm or 75×300mmControl accuracy±0.1ºC,±1%RHSystemTemp.controllerImported LED digital display PID+SSR microcomputer integratorSensorPerkin resistance PT100Ω/MVTime controllerImported programmable time controllerHeating systemNichrome heaterCondensation humidification systemStainless steel humidifierBlackboard tempMetal blackboard thermometerWater supply systemAuto water filling systemCirculating systemQuiet motor,multi-vane centrifugal fanMaterialExterior chamber materialStainless steelInner chamber materialSUS#304 stainless steelSample holder materialSUS#304 stainless steelStandard configurationStandard sample holder 24pcs,light tubes 8pcs(UVA/UVB)Safety ProtectionLeakage,short circuit,over temp.,water shortage,over current protectionPower supplyAC 1ψ220V 60/50HzOperation condition5ºC~+30ºC≤85%RHCustomization serviceNon-standard or special requirements are all welcome

2. Features:

1. Black aluminum plate is used to connect the temperature sensor, and the blackboard temperature meter is used to control the heating, and the temperature is more stable.
2. The amount of radiation is measured by a high-precision display and measurement of a dedicated ultraviolet radiation meter.
3. Irradiance is not more than 50 W/m2.
4. Illumination and condensation can be independently controlled and alternate cysle control.
5. The independent control time for illumination and condensation and the time for alternate cycle control can be set arbitrarily within 1000 hours.

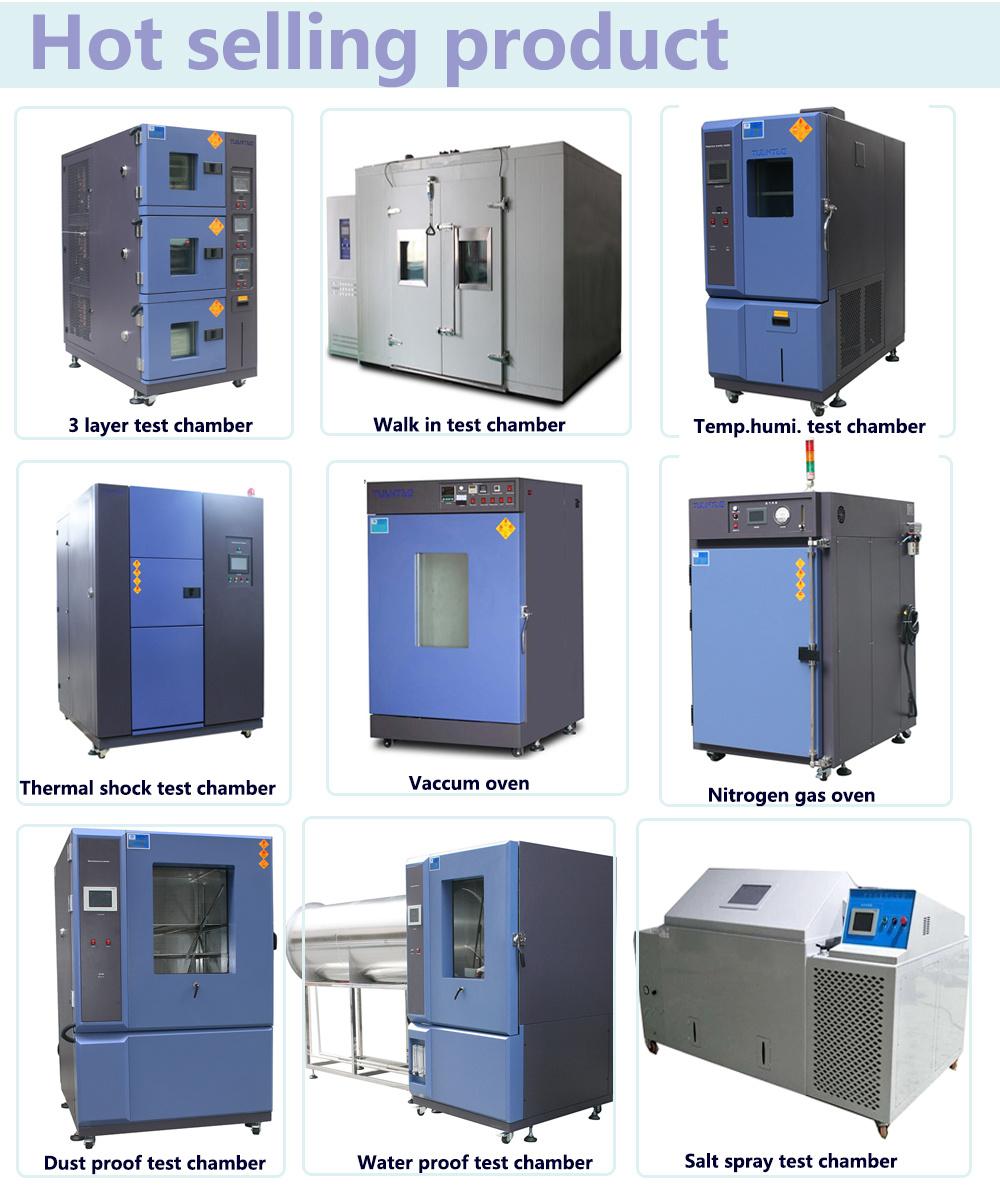

Our hot selling products:



3. Our company:







After-sales service

1. Free parts for 12 months.
2. One year warranty, during in this year, we provide free maintenance. Beyong the warranty, we provide accessories with low cost, lifetime maintenance service is available.

If you want to know more and tell us what is your idea technical spec, please let me know, thanks.
