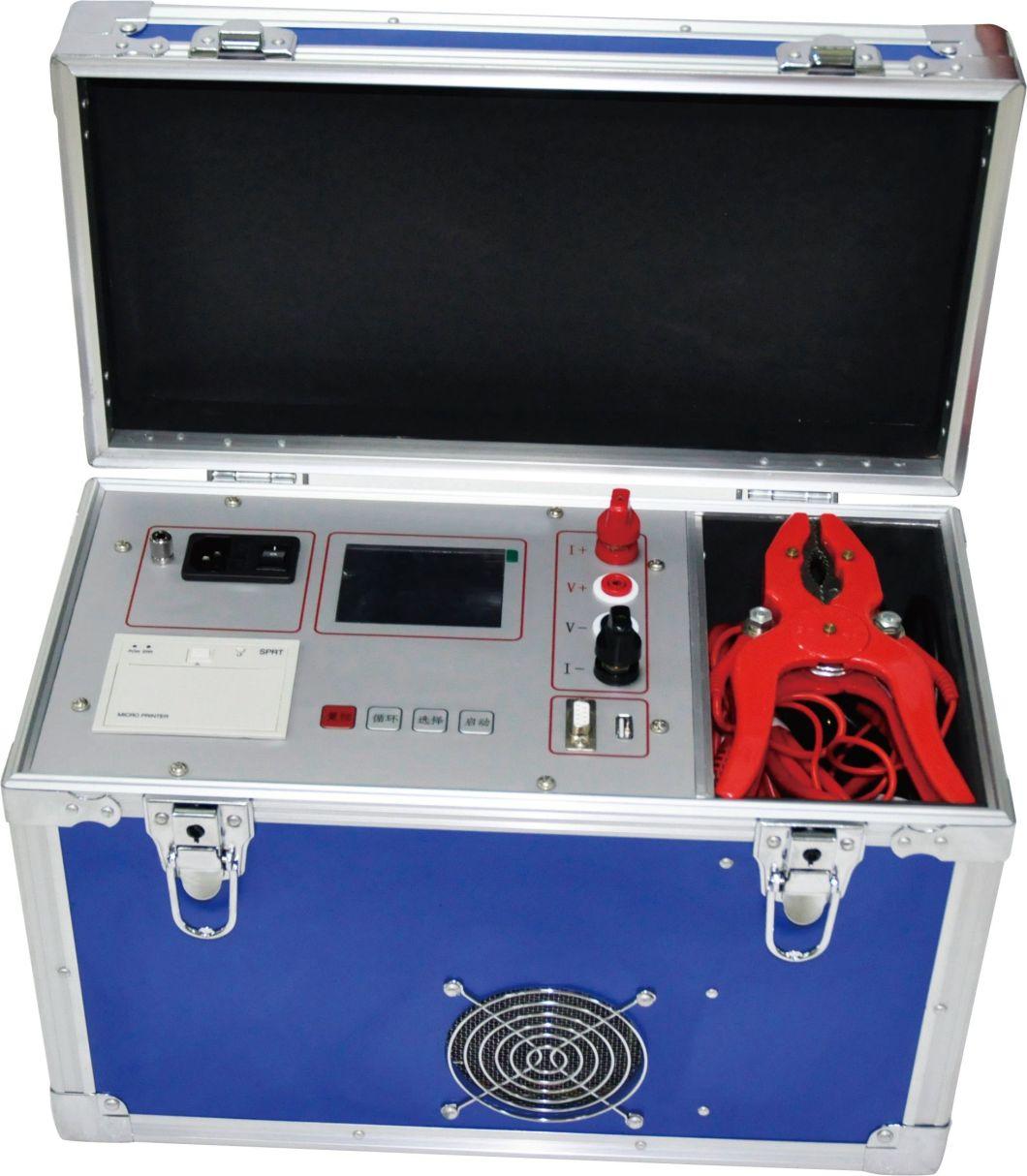

5A DC Resistance Tester

Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
  • Warranty：12 Months
  • Power：Electricity

Base Info

  • Model NO.：XHZ1005
  • Certification：CE
  • Customized：Customized
  • Color：Black
  • Transport Package：Exported Wooden Case
  • Trademark：XZH TEST
  • Origin：China
  • Production Capacity：2000PCS,Year

Description




Measuring range and accuracy1mΩ-2Ω          (5 A)
5mΩ-10Ω            ( 1 A)
100mΩ-50Ω      (200mA)
1Ω-250Ω         (40mA)
±(0.2%+2 readings)                                                 100Ω-20KΩ      (<20mA)
±(0.5%+2 readings) Minimum resolution0.1μΩ Displaytouch color LCDResistance display effective digits are 4 digitsData storage1000groups Working environmentAmbient temperature:0ºC~40ºC     Relative humidity: <90%RH,No condensation Power supplyAC 220V±10V,50Hz±1 HzFuse 2AMaximum power consumption200W Dimensions360*290*170(mm) WeightHost:5.6 KG  Wire box:4.45 KG








Packing & Shipping
5A DC Resistance Tester


Packaging: Wooden case filled with foam

Shipping: by Air, Sea, Express, etc.

Shipping time: 7-15 days if it's in stock.





Other model of DC resistance tester

5A DC Resistance Tester



Company Profile:


 Xi'an Xu&Hui Electromechanical Technology Co.,Ltd is one of famous brand of electrical equipment
tester manufacturer in China, mainly produced TDR underground cable fault locator, capacitors,
insulation resistance tester, transformer oil tester, high voltage generator and earth resistance tester etc.
We have several patents in this industry, and our products are exported well in the global market,
such as America, Brazil, Turkey, Russian,Israel, Thailand, India, etc.



5A DC Resistance Tester



Factory Certificates:

5A DC Resistance Tester
5A DC Resistance Tester



FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
