• Model NO.：HD-F750-1
• Weight：0-100Kg
• Power Source：AC220V
• Warranty Period：1 Year
• Technology：Professional
• Max Capacity：100kg
• Plane Plate：Holes Diameter 6mm, Space 20mm
• Speed：(70+_ 5) Times Per Minute.(Adjustable)
• Counter：6 Digits Cycle Counter for Test Cycle Setting
• Height Adjustable：After Finish to Test Specified Times, The Below
• Dimension：760*780*1350mm
• Power：AC220V+_10%, 50,60Hz, Single Phase
• Model：HD-F750-1
• Transport Package：Strong Wooden Case
• Specification：CE, ISO, SGS
• Trademark：HaiDa
• Origin：Guangdong, China
• Production Capacity：15 Sets,Month

Basic Info.

Model NO. HD-F750-1 Weight 0-100Kg Power Source AC220V Warranty Period 1 Year Technology Professional Max Capacity 100kg Plane Plate Holes Diameter 6mm, Space 20mm Speed (70+_ 5) Times Per Minute.(Adjustable) Counter 6 Digits Cycle Counter for Test Cycle Setting Height Adjustable After Finish to Test Specified Times, The Below Dimension 760*780*1350mm Power AC220V+_10%, 50/60Hz, Single Phase Model HD-F750-1 Transport Package Strong Wooden Case Specification CE, ISO, SGS Trademark HaiDa Origin Guangdong, China Production Capacity 15 Sets/Month

Product Description

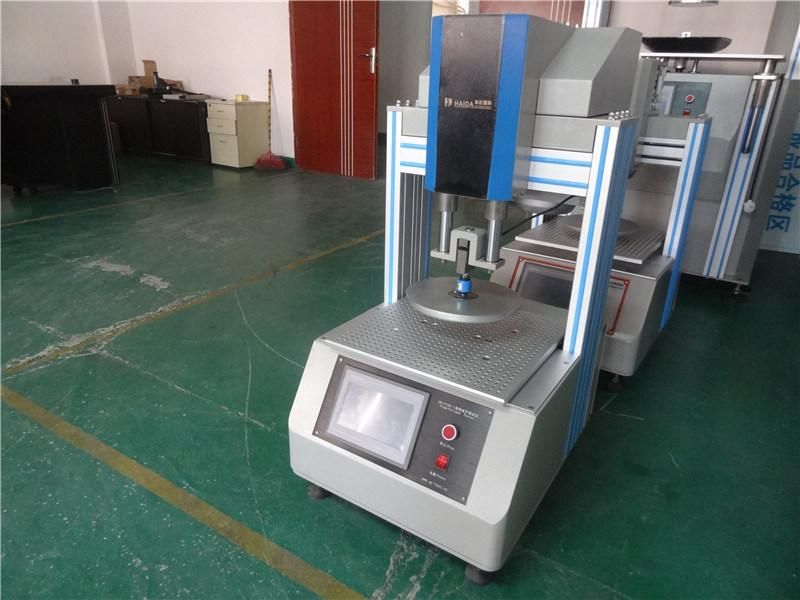

                            ASTM D3475 Foam Dynamic Fatigue Tester/ Testing Machine/ Test Equipment

The machine is used to test foam fatigue by repeating indentation of a test piece by an indentor smaller in area than the test piece, the maximum load reached during each cycle being kept

Within specified limits. After finish test, check the determination of indentation hardness characteristics according to 1S0 2439 test standards.

Max capacity	100kg
Plane plate	Holes diameter 6mm, space 20mm

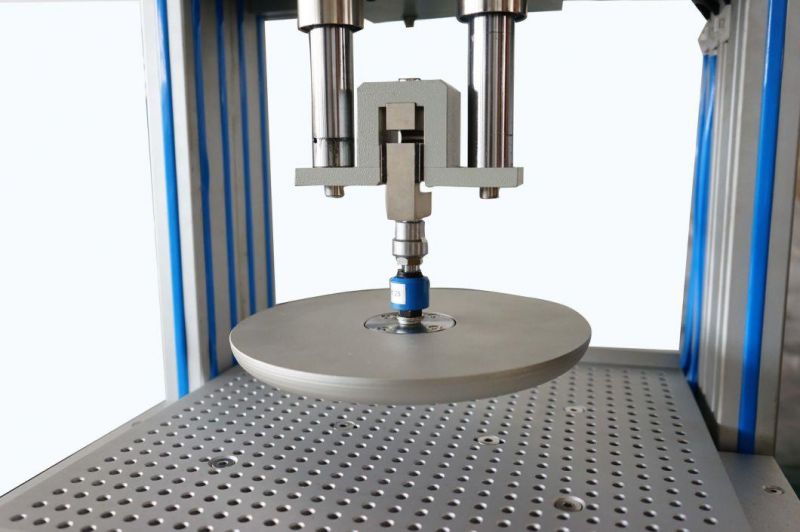

Indentor	Having an overall diameter of 250 mm± 1 mm   with a 25 mm± 1 mm radius at its lower edge, provided with a device for   applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed	(70 ± 5) times per minute.(adjustable)
Sample size	Test pieces shall be right parallelepipeds   having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter	6 digits cycle counter for test cycle setting
Height adjustable	After finish to test specified times, the   below plate can go up automatically to continue test.
Display	LCD
Dimension	760×780×1350mm
Power	AC220V±10%, 50/60Hz, single phase

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
