Gd-III Portable Digital Integrated Phase Shifter
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Apparatus：Gd-III Portable Digital Integrated Phase Shifter
- Max. Output Capacity：3*300va
- Voltage Withstand Test：1.0kv,Min
- Features：Easy to Operate, Small in Volume, Low Noise
- Display：128*64 LCD
- Dimension：480mm*360mm*230mm
Base Info
- Model NO.：GD-III
- Weight：35kg
- Power Supply：3 Phse 4-Wire 3*380 (220)V 50Hz
- Warranty：1 Year
- Transport Package：Wooden Case
- Specification：ISO Certificate
- Trademark：Gold
- Origin：Chongqing of China
- HS Code：9031809090
- Production Capacity：200PCS,Month
Description
Basic Info.
Model NO. GD-III Weight 35kg Power Supply 3 Phse 4-Wire 3*380 (220)V 50Hz Warranty 1 Year Transport Package Wooden Case Specification ISO Certificate Trademark Gold Origin Chongqing of China HS Code 9031809090 Production Capacity 200PCS/MonthProduct Description

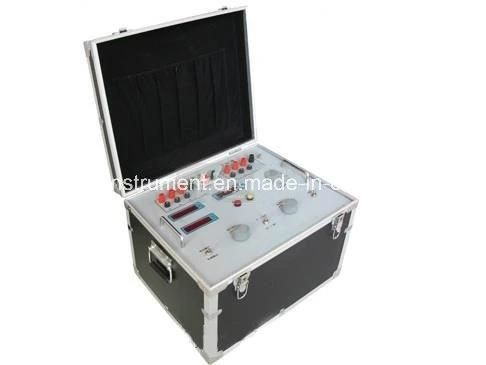

GD-III Portable Digital Integrated Phase Shifter
Introduction:
- GD-III Portable Digital Integrated Phase Shifter is newest, portable electric equipment which composed by Phase shifting transformer, Digital phase indicator, Current& transformer digital meter, output voltage regulated, phase fine tuning and power source.
- GD-III Portable Digital Integrated Phase Shifter uses transformer phase shifting technique perfectly combined with digital measurement, in high accuracy, accurate and visualized to read.
- GD-III Portable Digital Integrated Phase Shifter with strong and reliably structure, easy to carry and convenient for open country tests and on-site tests.
Features:GD-III Portable Digital Integrated Phase Shifter with the features of: easy to operate, small in volume, low noise, fine output wave.GD-III Portable Digital Integrated Phase Shifter can meet high accuracy tests for single phase and three phases AC power, phasing meters, it also applies to calibrated apparatus of watt-hour meter.
Parameters:
| Item Name | GD-III Portable Digital Integrated Phase Shifter |
| Input voltage | 3-phse 4-wire 3*380(220)V 50Hz |
| Output voltage | 3-phse 4-wire 3*(0~380) / (0~220), LCD display, precision 3 grade |
| Max. output capacity | 3*300VA |
| Three phase fine tuning | 00~3600,300 phase shifting each step |
| Three phase coarse tuning | -30~180,120~330, LCD display, precision 1.0 grade |
| Voltage fluctuation | Coarse tuning≤1.5%,fine tuning≤2.0% |
| Waveform distortion | Output waveform distortion≤input waveform distortion |
| Temperature | <60ºC |
| Insulation resistance | ≥22MΩ |
| Voltage withstand test | 1.0kV/min |
| Work Environment | Temperature : -10ºC~40ºC Humidity:<80 %RH |
| Dimension | 480mm*360mm*230mm |
| Weight | 35kg |
