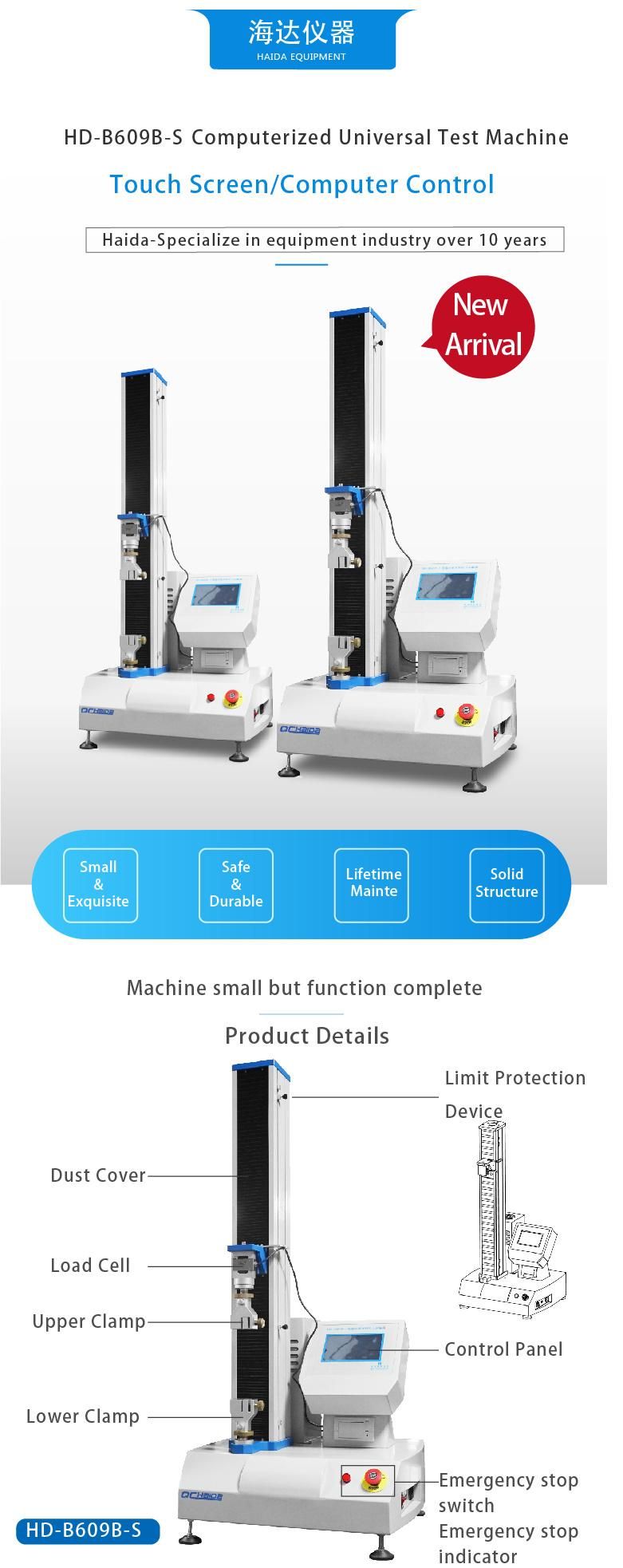

Plastic, Rubber, Paper Tension Testing Equipment

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Tensile Testing Machine
  • Maxcapacity：200kn
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-B609B-S
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Control and Display：LCD Controller or Computer
  • Test Speed：0.01 to 500 mm,Min
  • Resolution：1,250, 000
  • Accuracy：0.5%
  • Certificate：CE, ISO, SGS
  • Delivery Time：15 Days After Receie The Deposit
  • Max. Stroke：1000mm (Including Fixture)
  • Screw：High Precise Ball Screw
  • Elongation Accuracy：0.001mm
  • Transport Package：Strong Wooden Case
  • Specification：ASTM D903; GB,T16491; GB,T1040; GB,T8808; GB13022;
  • Trademark：Haida
  • Origin：Donguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Plastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing Equipment
Plastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing EquipmentPlastic, Rubber, Paper Tension Testing Equipment

FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
