• Model NO.：Hj-4
• Weight：0-100Kg
• Power Source：AC220V
• Test Rate：10-60 Times,Minute Adjustable
• Station：Conduct 6 Plug Lead Tests at The Same Time Each Ti
• Detection Function：Turn-on Times Detection
• Number of Bends：0-999999 Can Be Preset
• Volume：85*60*75cm
• Heavy Appointment：100kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. Hj-4 Weight 0-100Kg Power Source AC220V Test Rate 10-60 Times/Minute Adjustable Station Conduct 6 Plug Lead Tests at The Same Time Each Ti Detection Function Turn-on Times Detection Number of Bends 0-999999 Can Be Preset Volume 85*60*75cm Heavy Appointment 100kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Summary

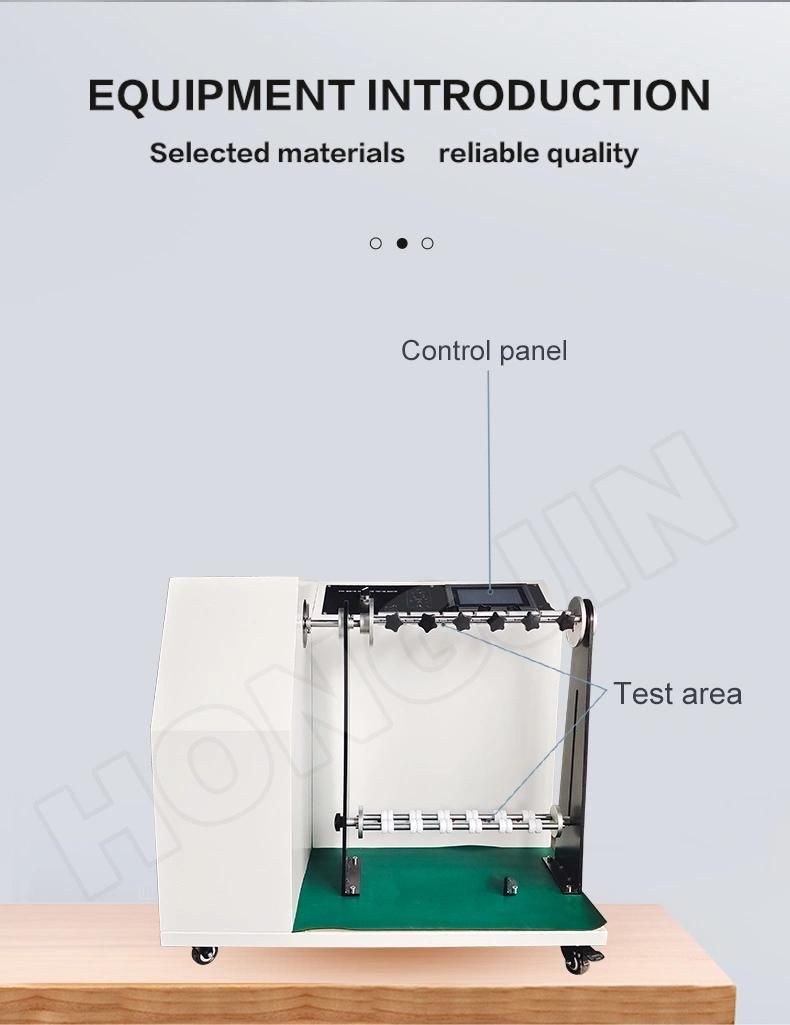

Wire bending testing machine is suitable for the plug pinouts, power cord, USB cable, headphone cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view the total number of oscillations, it can automatically count, try to bend to break when not powering on, and automatically stop operation. Native UL817 related standards such as "cords-General safety requirements for components and power supply cords" provisions and general technical requirements for the headphone wire bending tests of the standard GB/T14471-93.

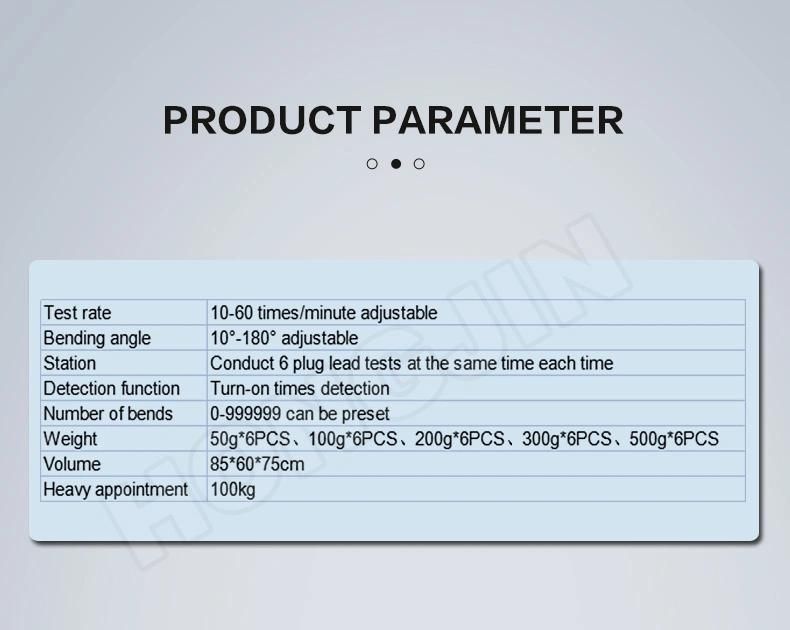

Test rate	10-60 times/minute adjustable
Bending angle	10°-180° adjustable
Station	Conduct 6 plug lead tests at the same time each time
Detection function	Turn-on times detection
Number of bends	0-999999 can be preset
Weight	50g*6PCS,100g*6PCS,200g*6PCS,300g*6PCS,500g*6PCS
Volume	85*60*75cm
Heavy appointment	100kg

Features
1,The Cabinet with electrostatic paint treatment, according to various standards of design, machine design is reasonable, Fastening structure, safe, stable and accurate;
2, Counter can be preset, test, test automatic counting of conduction, reached number machine Stop with power off memory function, convenient and practical;

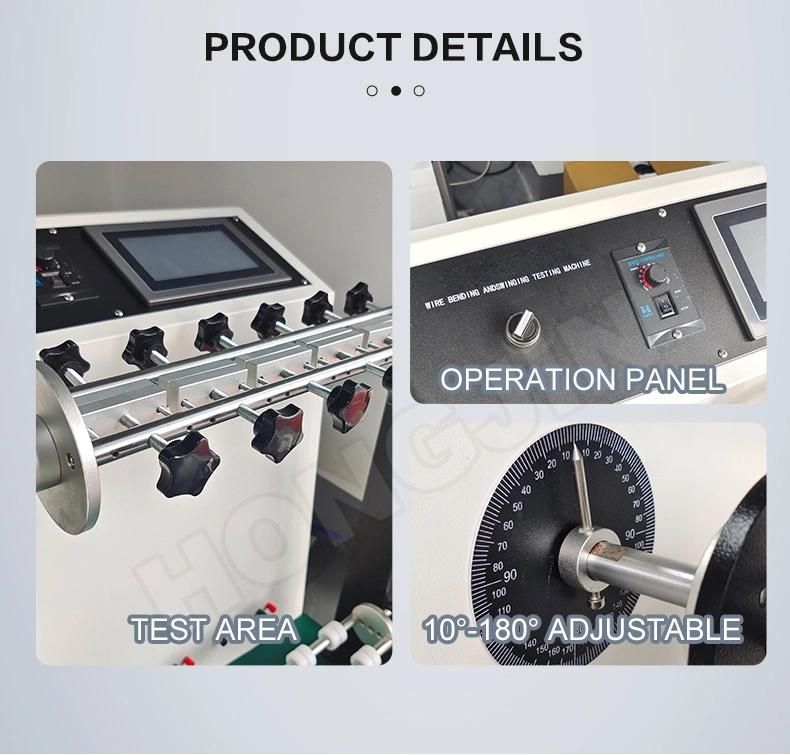

3, Speed knob adjustable, LCD display, set customers according to their requirements, the user-friendly design;
4, Manually adjustable bending angle, indicates the needle indicates the scale dial, to better regulation;
5, Six stations while working independently, respectively, counting, one line, the corresponding counter
 Stop counting machine as usual test, improve testing efficiency;
6,Six groups of nonslip, easy to damage materials specially designed handle, clamping products more convenient, fast;
7, Test rods can be adjusted up and down, according to the standard requirements, and test better;
8, The distribution of weights with hook loading, multiple stacking, hanging more convenient.
