• Model NO.：GD-NFP92
• Transport Package：Standard Export Case
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-NFP92 Transport Package Standard Export Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

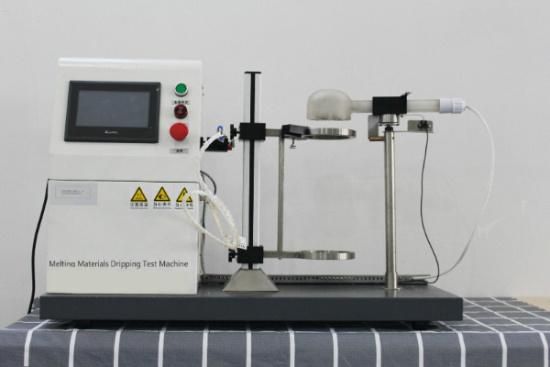

ECE R118 Annex 7  Melting Materials Dripping Test Machine NF P92-505

Introduction:

Thermal radiation dripping tester meets international standards NF P92-505, EU 95/28 / EC, ECE technical specifications and requirements of R118 Annex 7 of these Regulations. According to the NF P 92-505 request, the test is an additional test for M-class building materials. It is suitable for hot melt material effect in the primary heat source to evaluate the performance of dripping and burning performance testing. Flexible and thin materials can be tested.

Standard:
NF P92-505
EU 95/28/EC
ECE R118 Annex 7

Main Feature:

1. All fixtures are made of stainless steel material, appearance nice and corrosion resistance.
2. Radiation bracket can be rotated, the rotation angle is greater than 90 degrees and easy to install the sample.
3. Sample installation height can be adjusted.
4. The radiation heat of the radiator is 30KW/m2, up to 100KW/m2.
5. The output power of electric radiator: 500W.
6. The radiant heat radiator can be adjusted linear through the power control automatic adjustment.
7. The radiation shield is a quartz glass and the opening diameter is 100mm ± 5mm.
8. The heat radiation reaches to to3W / cm³ the position 30mm from the radiation shield plane.

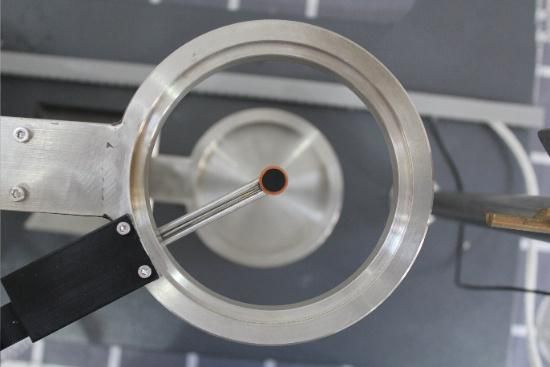

9. Sample holder ring is made of stainless steel and the inner diameter is 118mm.
10. Take off the plate inner diameter is 118mm, depth 12mm, the internal plug of cotton.
11. Radiation cone can move up and down.
12. Automatic timing warning of sample ignition.
13. Radiometer imported from the USA which range is 0~100Kw/m2.

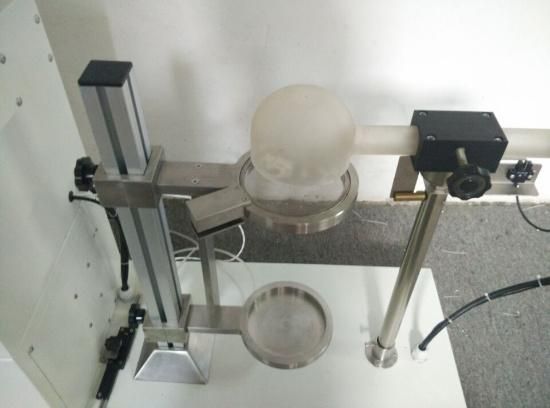

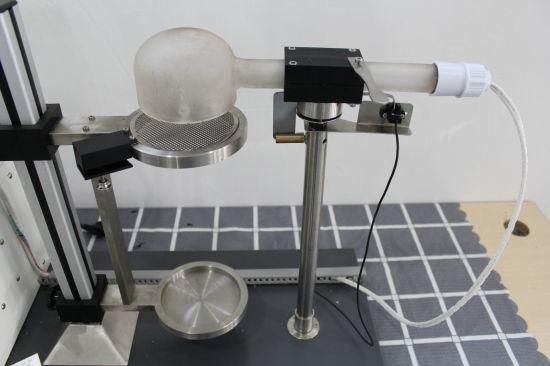

Product details:






Specification:

Size	500mm(L)×400mm(W)×700mm(H)
Power	500W
Weight	50KG
Model	GD-NFP92
Gas regulator valve pressure range	<0.1MPa
Warranty	12 months
