• Model NO.：Hzrc3200
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Model Number：Hzcr300
• Test Report：Yes
• Work Temperature：-10ºC~55ºC
• MOQ：1
• Soil Resistivity：0.00Ω~9000kΩ
• After Sale Service：Yes
• Certificate：ISO Ce
• Earth Voltage：0.0V~100.0V
• AC Current：0.00mA~600A
• Measurement Range：0.00Ω-9000kΩ
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030332000
• Production Capacity：100 PCS,Month

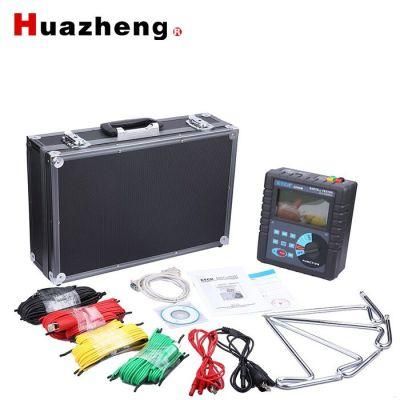

Function4-pole, 3-pole and simple 2-pole, selection, double clamp method measure grounding resistance, soil resistivity; Measurement of earth voltage, AC voltage, leakage current of AC currentPower SupplyDC 9V(Zn-Mn dry battery R14S 1.5V 6 PCS, continuous standby for 300 hours )Caliber of clampΦ68mmMeasurement RangeSelection method: 0.00Ω-3000ΩDouble clamp method: 0.00Ω-9000kΩ2/3/4 pole method:0.00Ω~30.00kΩSoil resistivity:0.00Ω~9000kΩDC resistance:0.00Ω~30.00kΩEarth voltage:0.0V~100.0VAC current:0.00mA~600AMeasuring ModePrecise 4-pole measurement, 3-pole measurement, simple 2-pole measurement, selection method, double clamp method measure grounding resistanceMeasuring Method2/3/4 pole method: change-pole method, measurement current 20mA Max
Selection method: change-pole method, measurement current 20mA Max
Double clamp method: disconnect mutual inductance method, measurement current 1mA Max
Soil Resistivity: 4-pole measurement (Wenner method)
Earth Voltage: average rectification(between P(S)-ES)
AC current: mutual inductance methodTest Frequency128Hz/111Hz/105Hz/94Hz(AFC)Short-circuit Test CurrentAC 20mA maxOpen-circuit Test CurrentAC 40V maxTest Voltage WaveSine waveElectrode Distance RangeCan be set 1m-100mShiftautomatic shiftBacklightBlue screen backlight, suitable for dim placesDisplay Mode4-digital super-large LCD display, blue screen backlightMeasuring IndicatorDuring measurement, LED flash indicator, LCD countdown display, progress bar indicatorLCD Frame Dimension128mm*75mmLCD Window Dimension124mm*67mmDimensionL*W*H: 215mm*190mm*95mmStandard Test Wire4 wires: each for red 20m, black 20m, yellow 10m, and green 10mSimple Test Wire2 wires: each for red 1.6m and black 1.6mAuxiliary Earthing Rod4 wires: Φ10mm*150mm Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)Measuring RateVoltage to ground: about 2 times/secondCurrent to ground: about 2 times/secondEarth resistance, soil resistivity: about 5 seconds/timeMeasuring TimesOver 5000 times (Short-circuit test, interval time should be at least 30 seconds)RS232 InterfaceRS232 interface, software supervision, storage data can be uploaded to computer, saved or printed.Communication WireOne piece of RS232 communication wire, with length 1.5mData Storage2000 sets, "MEM" icon storage indicator, flash display "FULL" icon to indicate storage is fullData HoldData hold function: "HOLD" icon displayData ReadData read function: "READ" icon displayOverflow DisplayExceeding measuring range overflow function: "OL" icon displayInterference TestRecognize interference signal automatically, "NOISE" icon display when interference voltage exceed 5VAuxiliary Earthing TestCan measure auxiliary earth resistance, 0.00KΩ-30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ)Alarm FunctionWhen measuring value exceeds alarm setting value, there is "Toot-toot-toot" alarm hintBattery VoltageWhen battery voltage decreases to about 7.5V, battery voltage low icon     will display, reminding to replace battery.Auto-shut offAutomaticlly shut down 15minutes after bootingPower ConsumptionStandby: about 20mA (Backlight shut off)Boot and with backlight: about 45mA (25mA without backlight)Measurement: about 100mA (Backlight shut off)WeightTotal weight: 8.0kg (including package)Tester: 1653g (including battery)Testing wires: 1560gAuxiliary earthing rods: 935g (4pcs)Working Temperature & Humidity-10ºC-40ºC, below 80%rhStorage temperature & humidity-20ºC-60ºC, below 70%rhOverload ProtectionMeasuring earth resistance: between each interfaces of C(H)-E,P(S)-ES,AC 280V/3 secondsInsulation ResistanceOver 20MΩ (between circuit and enclosure it is 500V)Withstanding VoltageAC 3700V/rms. (Between circuit and enclosure)Electromagnetic FeaturesIEC61326(EMC)Protection TypeIEC61010-1 (CAT 300V,CAT IV 150V,Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004

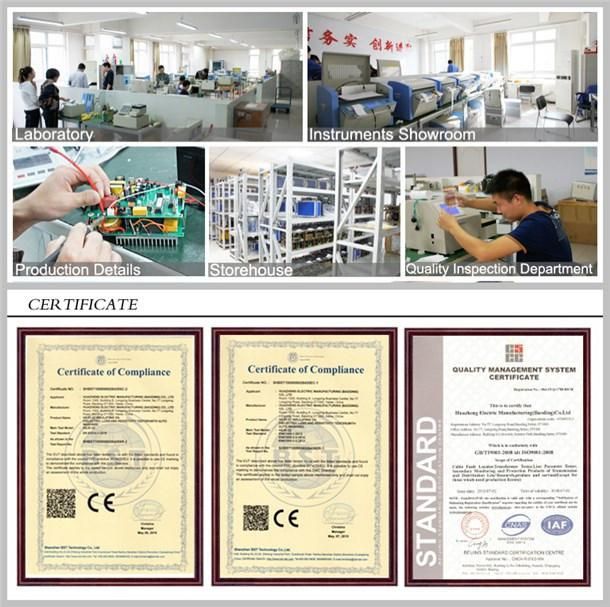

III.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


 IV.Customer Visit



V.Exhibition

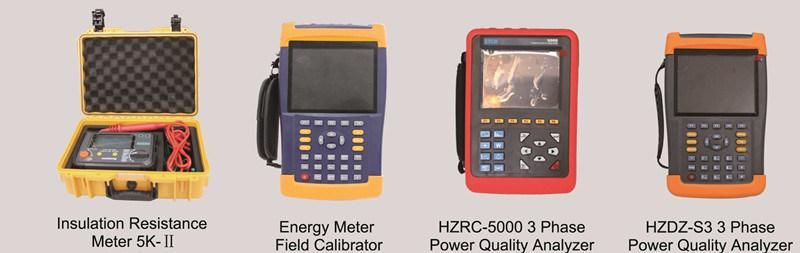

VI.Similar Recommendation
