Test Instrument

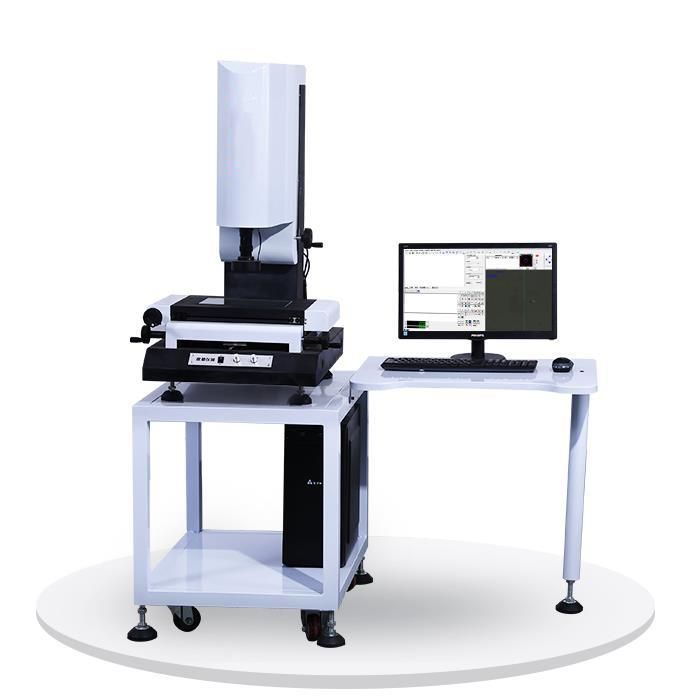

Automatic Image Measuring Instrument/Tester

Suzhou Qiantong Instrument Equipment Co., Ltd.
  • Max Diameter of Workpiece:<500mm
  • Mass Scope of Workpiece:5kg
  • Type:Image Measurer
  • Accuracy Grade:0.5
  • Load Way:Electronic Load
  • Loading Method:Static Load

Base Info

  • Model NO.:DL auto model
  • Display:PC Computer
  • Control:Computer Control
  • Weight:100-500Kg
  • Power Source:AC220V
  • Probe:Renishaw
  • Transport Package:Wooden Case
  • Specification:625*777*1080mm
  • Trademark:SUZHOU QIANTONG
  • Origin:Jiangsu, China
  • HS Code:9024800000
  • Production Capacity:1000 Set,Year

Description

220 V ± 10% ,50 Hz
Reliable grounding for electrical equipment: grounding resistance less than 4 ohms
5. Introduction of software and function
Element measurement:measurement point, line, circle, angle, oval, specified point measurement rectangle, automatically discern point, line, circle and arcs;
Element structure: center point, intersection point, midpoint point, line point, circle point, angle point;
Element preset:point, line, circle, arcs;
Graphic processing:coordinate transition, workpiece alignment. Any axis alignment, coordinate reset;
Graphic amplification, reduction, translation, print, select, cancel and delete;
Setting modification, reduction. Graphic print circle selected and unchecked and cancel the graphic;
Set the gray scale, saturation, contrast of the image, and save the image in BMP format;
Multiple edge-finding modes, the computer automatically picks up points, automatically identifies circles and arcs, and greatly improves the speed of picking points;
Support S terminal input. The size is 640*480mm;
The measurement data can directly send to AutoCAD, and the graphic can be saved in the DXF document;
The measurement data can be send to WORD, Excel. And it can have statistic analysis and draw the simple Xbar-S control chart so that it can get Ca and other parameters. Besides, there are many kinds of languages can be changed.

Automatic Image Measuring Instrument/TesterAutomatic Image Measuring Instrument/TesterAutomatic Image Measuring Instrument/Tester


Automatic Image Measuring Instrument/TesterSome cooperative partner(Ranking in any order)
Automatic Image Measuring Instrument/Tester
Automatic Image Measuring Instrument/Tester

FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
