• Model NO.：GD-0719
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Transport Package：Wooden Case
• Specification：1320mm*750mm*1400mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200unit,Month

Main Technical Specifications:
(1) Standards: T0719-2011 in the industry standard JTG E20-2011 of Chiese Ministry of Transport
(2) Rolling speed of grinding wheel:  42 times/min+1time/min (one way)
(3) Walking distance of dolly:  (230±10)mm
(4) Rubber Hardness of grinding wheel:  78±2 (International Standard Hardness)
(5) Contact pressure between roller and test mode:  (0.7 ± 0.05) Mpa (at 60°C), adjustable to 0.8 or 0.9Mpa
(6) Displacement detection range:  (0 to 30) mm
(7) Displacement detection accuracy:  less than ±0.01mm
(8) Test time:  (60-240) min
(9) Incubator control range:  Ambient temperature to 80°C (can be set up optionally), control accuracy is ±0.5ºC
(10) Overall dimensions:  1320mm*750mm*1400mm
(11) Overall weight:  250kg
(12) Test mold size:  300mm*300mm*50mm (standard), can be used to do the wheel tracking test of

the test mold with thickness of (30 ~ 100) mm.

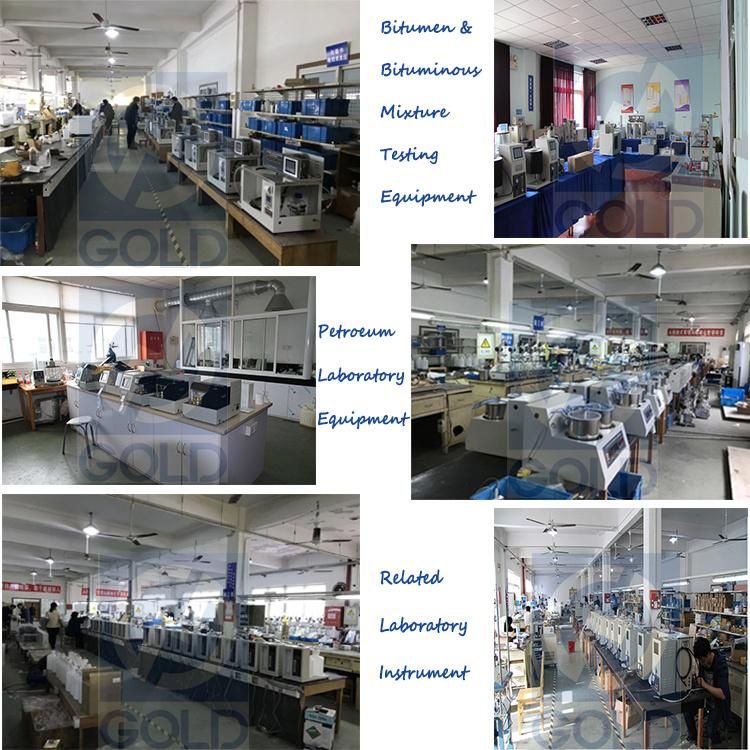

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer
of Petroleum Products test kits and electrical testing equipment in China.Our products
are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.
At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree
or above.With strong technical force and strong development, new products have been launched continuously.




Gold Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:steel tensile test

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
