• Model NO.：XP-1A
• Transport Package：Wooden Case or Carton
• Specification：see details
• Trademark：HV TEST
• Origin：China
• HS Code：9030899090
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. XP-1A Transport Package Wooden Case or Carton Specification see details Trademark HV TEST Origin China HS Code 9030899090 Production Capacity 200 Sets Per Month

Product Description

Product overview
Micro-tech central processing unit is the core of the product; its digital signal processing capabilities can better manage the circuit and deal with the detection signal. Due to extensive use of integrated circuits reduce the quantity of circuit elements 40%, greatly improve the reliability and efficiency. Microprocessor can monitor probes and battery voltage with 4000 times per second, tiny signal can also be captured, in any circumstance can work stable and reliable.

 Products features
1 Adopt microprocessor control with advanced digital signal processing capabilities
2 Three -color video display
3 Seven-gear sensitivity setting, maximum enhanced 64 times
4 Touch Keyboard
5 Adjust sensitivity at any time
6 Automatic battery test function
7 Battery voltage indication
8 Detect R134a, R12, R22
9 Can detect all halogen refrigerants
10 Vacuum mechanical pump sampling, provide positive draft for the probe
11 With gradient function
12 Wireless, portable, just need two batteries.
13 35 cm flexible stainless steel probe rod

Technique parameters

Power supply	DC 3V, two alkaline batteries
Maximum sensitivity	R12, R22, R134a are approved by (14 g / year)
Sensitivity limit	Less than 3 g / year for halogen refrigerants
Usage time of probe	About 20 hours
Temperature	0ºC-52ºC
Usage time of battery	About 30 hours under normal use
Working method	Continuous, unlimited
Response time	instantaneous
Reset time	1s
Warm-up time	about 2s
Weight	560 g
Dimension	229×65×65mm3
Length of probe rod	35.5cm

Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

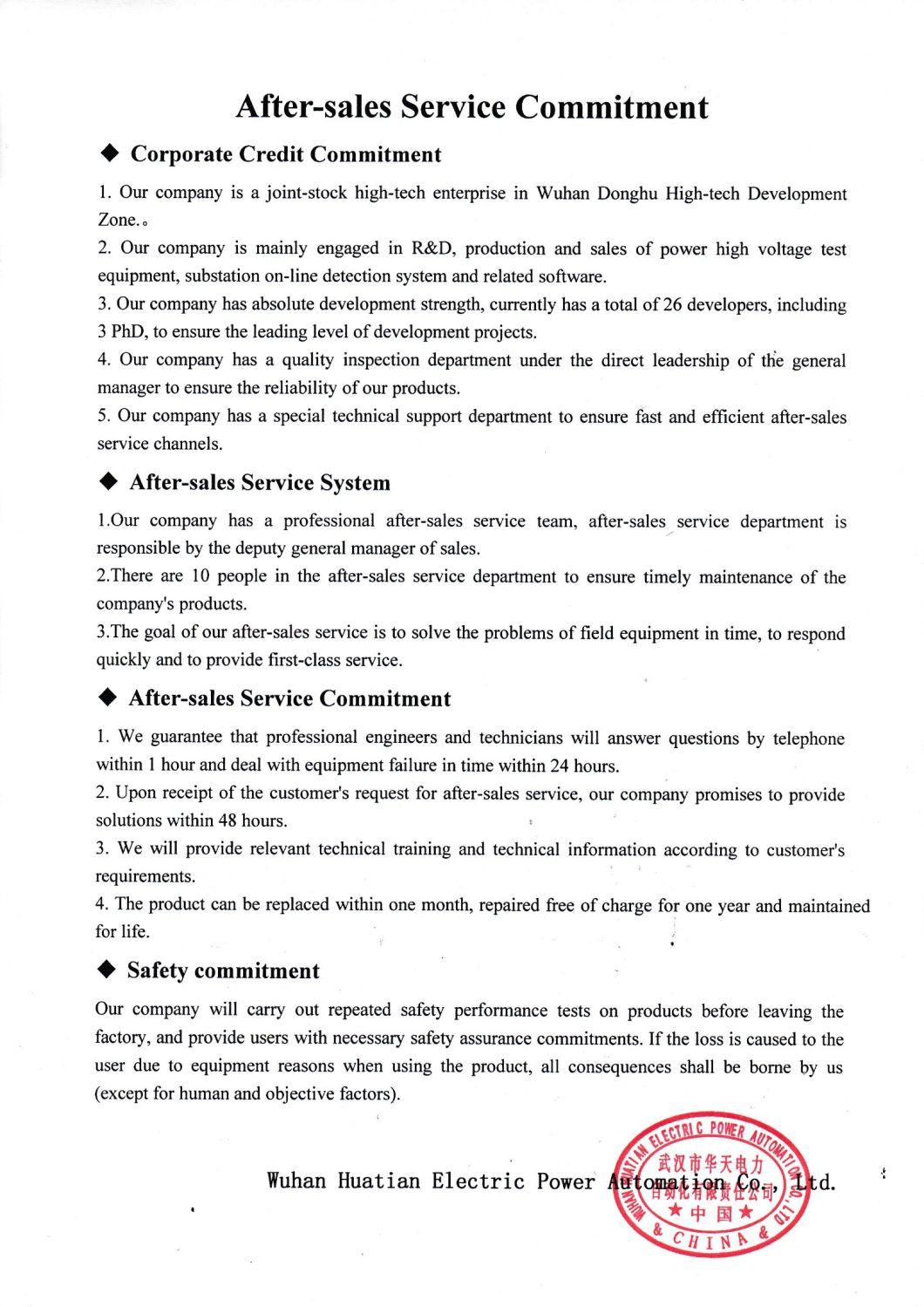

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
