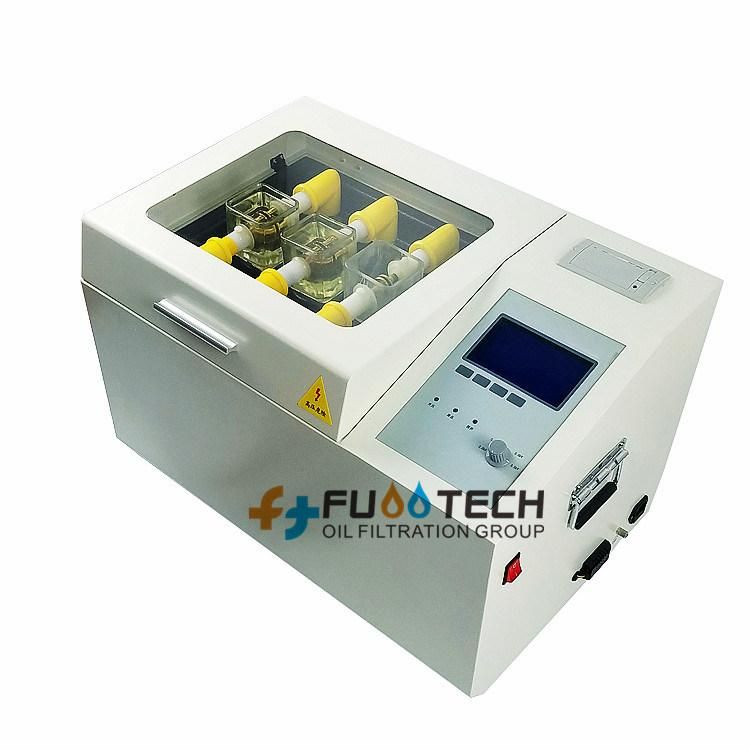

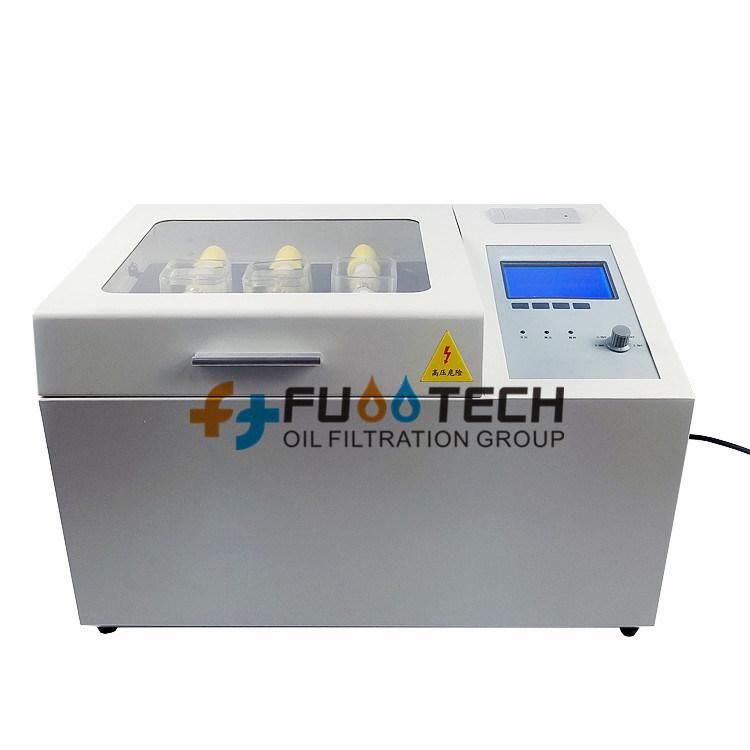

• Model NO.：FOT-III-80 Oil BDV Tester
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Waveform Distortion：<1 %
• Voltage Inspection Accuracy：1 %
• Output Voltage：0 ~ 80kv (0-100kv Can Be Set)
• Booster Capacity：1.5 kVA
• Speed of Voltage Increase：2.0~3.5 Kv,S
• Breakdown Sensitivity：< 0.1 Kv
• Certificate：ISO, CE, IEC156, SGS
• Delivery Time：7 Days
• Net Weight：45 Kgs
• Transportation：by Sea, Air, Courier, etc.
• Power：Less Than 200 W
• Transport Package：in Standard Exportation Plywood Case
• Specification：730mm*410mm*390mm
• Trademark：FUOOTECH
• Origin：Chongqing, China
• HS Code：9030899090
• Production Capacity：1000 Units Per Month

 Main features:

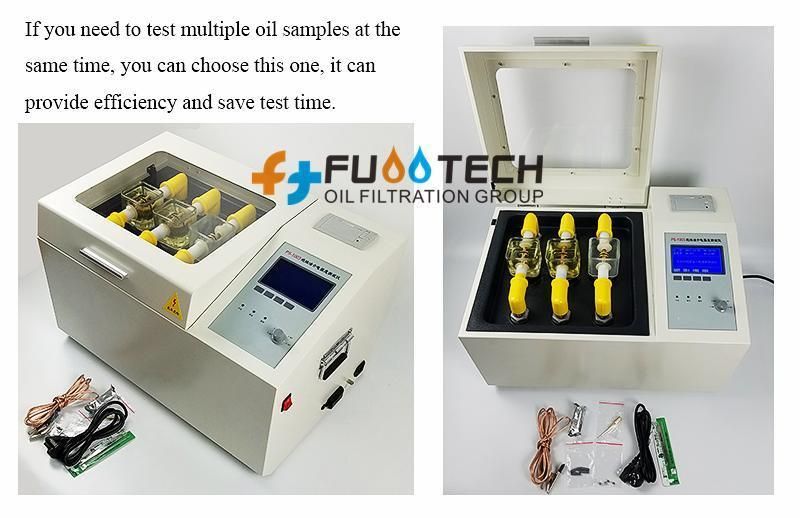

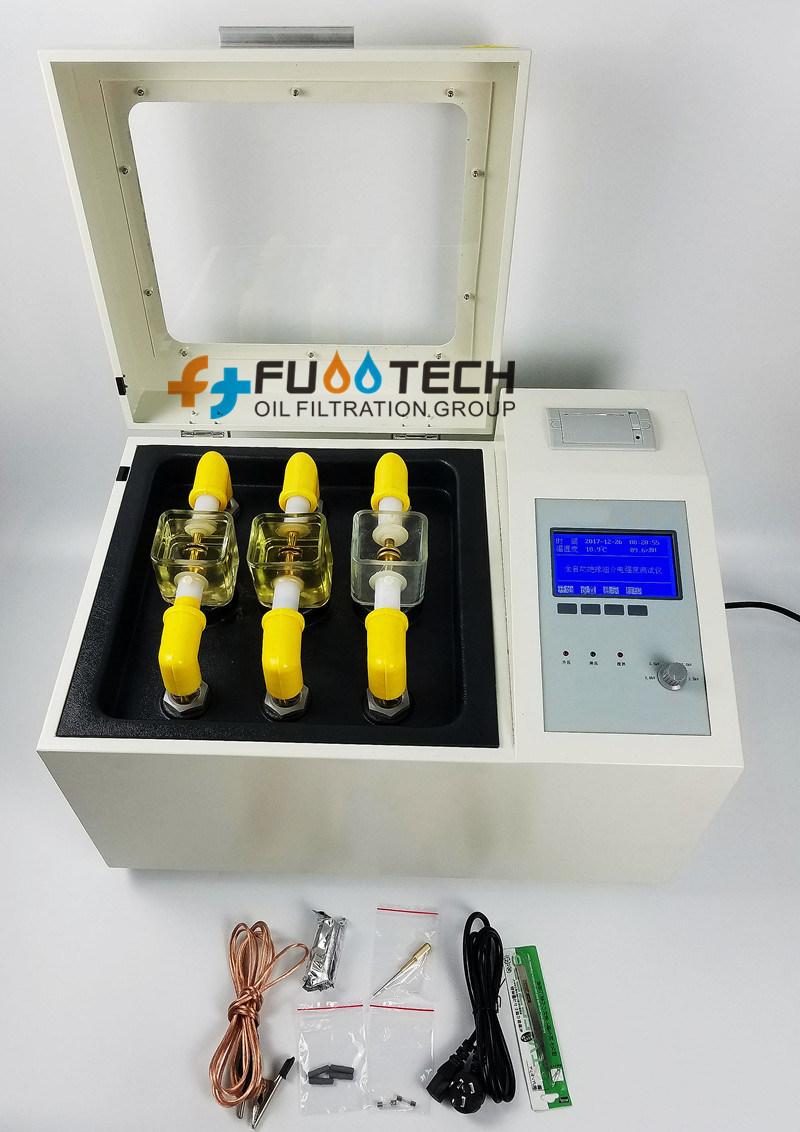

1.    3 Cups is designed for measuring the oil samples at same time.
1.    Simple operation, fully automatically.
2.    Menu controlled. Input data can be cleared
3.    Can store 99 groups' oil testing data which is convenient to reading and print.
4.    Can upgrade software through RS232 (Optional)
5.    High capacity of anti-jamming and high precision of testing.

6.    Small volume, light which operated in the open air very conveniently.
7.    The set shall be provided with smooth and continuous of output voltage between zero and maximum having no distortion of waveform.
8.    Audio sound and visual signal will indicate at the instant of sample failure.

Technology and parameter data

Item Name	Paramters
Output voltage	0~80 kV(0-100KV can be designed)
THDu	<1%
pressure rate	2.0~3.5 kV/s(Δ = 0.5 kV/s)
Booster capacity	1.5 kVA
measurement accuracy	±2%
supply voltage	AC 220 V ±10%
Power frequency	50 Hz ±2%
Power	200 w
Applicable temperature	0~45ºC
Applicable humidity	<85 % RH
Width x high x depth	730×410×390 (mm)
Net weight	~ 32 kg
