• Model NO.：PN-CT50KB
• Specification：SGS, ISO, CE
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：300sets,Year

NO.ITEMSPECIFICATION1 Power: AC 380V 5A 50HZ2 Measuring range: 0 ~ 30kN3 Indication error: +/-1%4 Plate Size: 800 mm X800 mm or 1000 mm X 1000 mm5 MAX stroke: 800mm or 1000 mm6 Pressing Speed: 10 mm/min7Return speed: 250 mm/min (maximum)8 Display:LCD Display Module, Show Pressure Curve real-time9 Printer: direct thermal printer, high speed while noiseless.10Communication Output: standard RS-232 interfaceFEATURES:
1. Strength test
Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
2. Constant Value Test
There are two parameters which are to be set in the constant value test: Load force value and deformation value. The user can set one or both of them according to the practical requirement; The measure is complete when any parameter reaches the set value.
3. Stacking Test
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: Compressive strength and testing time (hour). When the test starts, the system will check the current pressure at any moment to ensure the set value; The measure is complete when the test time is expired or the deformation value exceeds the set one within testing time.
4. The overall system is in good parallelism, stationarity and high return speed.
CONNECTIONS:
Electrical: None required
PN-CT50KB is the standard model: You should operate the tester by its buttons. The test report is
Saved in the tester, and can be printed by the micro-printer of the tester.

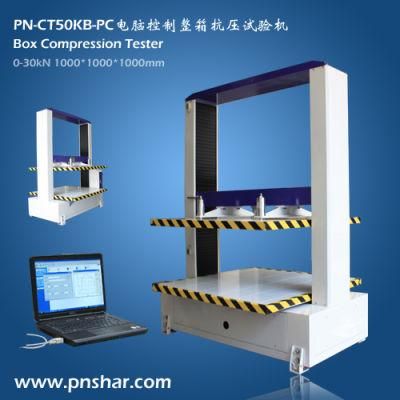

PN-CT50KB-PC is the PC-control model: It can be connected with your PC, you can control and operate the tester by your PC. The test display can be showing and test report can be saved in your PC.

COMPANY INTRODUCTION:
PNSHAR, as one SGS-Audited company & ISO-Certified company, has been engaged in the R&D and production of lab equipment for paper & packaging industries since 1985.Our products has achieved CE certificate.
As the leading manufacturer from China, we are enjoying the Chinese market, competing the European suppliers, American suppliers and Taiwan Suppliers.
Based on good quality and reliable performance, our lab equipments also have been exported to more than 50 countries, such as follows:
1). Europe: Italy, Germany, Hungry, Macedonia, Latvia, Czech, Switzerland, Russia, Poland, Turkey etc;
2). Asia & Oceania: Japan, Indonesia, Singapore, Australia, Hongkong, South Korea, Iran, Thailand, Viet Nam, India, Bangladesh, Jordan, Saudi Arab, Bahrain, Pakistan, Malaysia, Philippines, Myanmar, Taiwan, Oman, Uzbekistan, etc;
3). America:USA, Mexico, Argentina, Brazil, Peru, Costa Rica, Guyana, Uruguay, etc;
4). Africa: Kenya, Egypt, South Africa, Cote d'Ivoire, Cameroon, etc.
