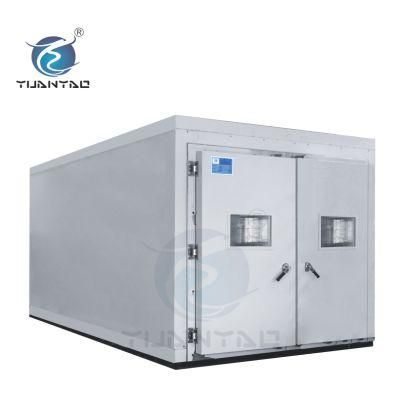

Temperature Humidity Automotive Stability Walk in Test Equipment
Guangdong Yuanyao Test Equipment Co., Ltd.- Certification：CE, TUV, ISO, SGS
- Warranty：1 Year
- Usage (Application)：Temperature Humidity Test Machine
- Color：Ivory , Blue, Other
- Temperature Range：-70~ +80 Celsius Degree
- Humidity Range：30% - 95%Rh
Base Info
- Model NO.：YWER-42000
- Controller：Digital Touch Screen (Imported Japanese Unique)
- Compressor：Imported French Tecumseh
- Inspection & Calibration：in House
- Transport Package：Well Packed in Strong Plywood Cases.
- Specification：CE, SGS, TUV certified.
- Trademark：Yuanyao
- Origin：Dongguan, China
- HS Code：8479899090
- Production Capacity：100 Sets a Month
Description
Non-standardExterior chamber sizeW×H×D(mm) Temperature range 0ºC;-20ºC;-40ºC;-60ºC,-70ºC~+70ºC(+80ºC) Humidity range 30% RH~95%RH Temp.Humi fluctuation ±0.3ºC;±0.5%RH Temp.Humi uniformity ±3ºC;±5%RH Indication Resolution Temperature:0.01 humidity:0.1%RH Heat-up and Cool-down time Heat-up:2ºC/min(Average),cool-down time 1ºC/min(Average) Air cirulation system Centrifugal fan air circulation system Heating system SUS#Stainless steel high-speed heater Humidification system Electrothermal steam humidification Refrigeration system Compressor + Finned evaporator + Air (Water) cooled condenser Dehumidifying system Dew point dehumification method Controlling system Touch screen controller+SSR+PID Exterior chamber material Cold rolled plate + Powder coating Interior chamber material SUS#304 Stainless steel Insulation material PU +fibergalss wool components Vacuum glass observation window
Test hole (50mm)
Control status indicator
Interior light Safety protection device Overheat protection circuit breaker
Humidification system overheat protection
Compressor overload protection
Control system overload protection
Overload indicator
Phase sequence protection
Water shortage protection
High voltage and low voltage protection
Over temperature protection
Water supply delay protection
Fan overcurrent protection Power supply AC 3Ψ380V 60/50Hz (Power supply can be customized) Customization service Non-standard or special requirements are all welcome
Customization service is available, we can set & design equipments according to your own specific requirements!
Our advantages: 1. Ten years factory experience, competitive price, quality warranty.
2. Provide after sales service on site to serve more customers at home and abroad. Till now, our technicists have been to HongKong, Australia, USA, UK, Singapore, Indonesia, Turkey, UAE, Pakistan and Russia for the ltest chamber installation and training.
3. Local agent or representatives in foreign countries: Thailand, Pakistan, Vietnam, Belarus, Russia.

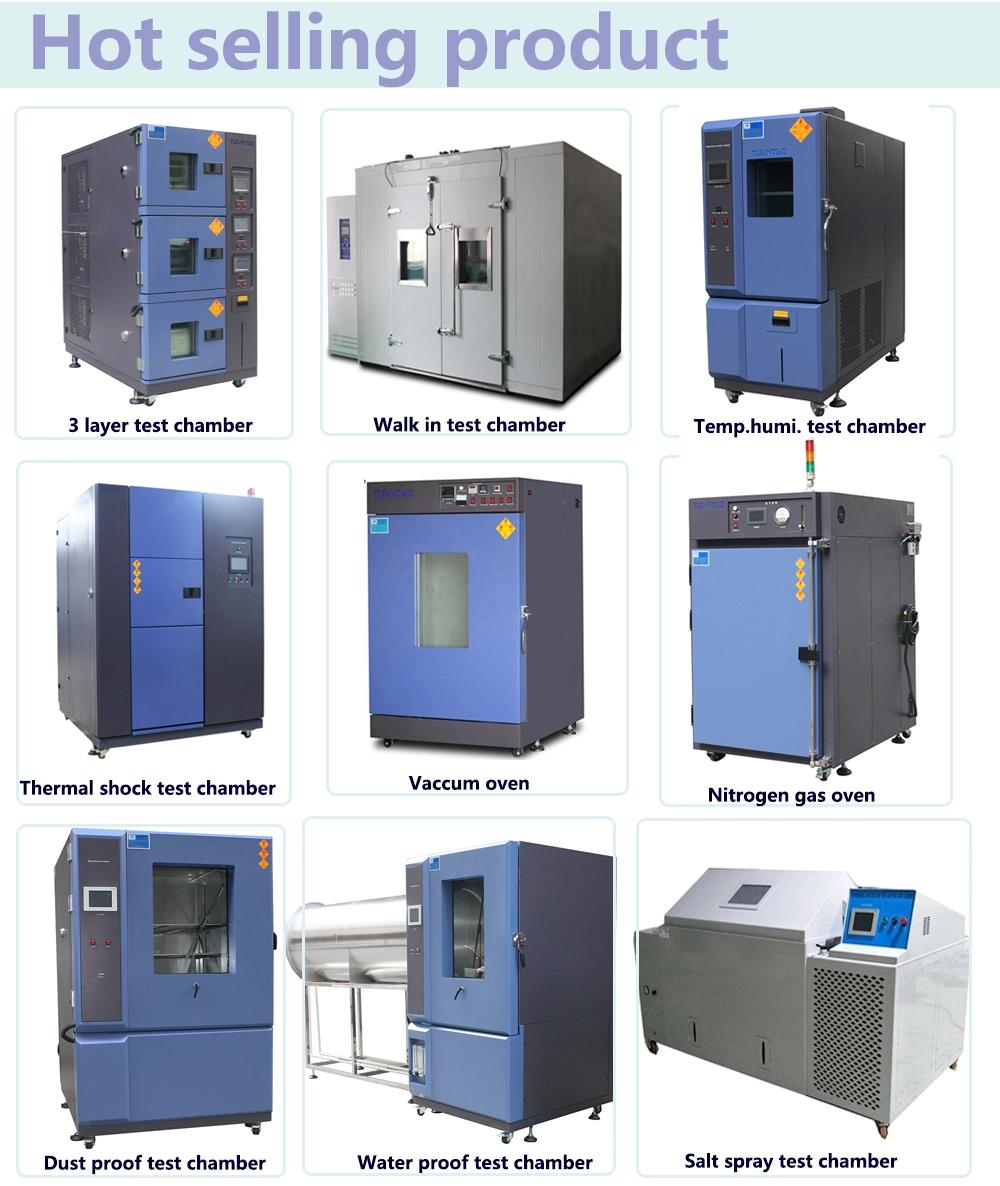

Besides Programmable constant Hot Cold Climate Test Chamber, we are also supply: Thermal shock chamber, Temperature & humidity Control Host, Ozone test chamber, Salt Spray Tester, Walk In environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.
11+ Patents
Any questions/inquiries, please directly send mail to me !
