Viscosity Analyzer Portable Laboratory Viscosity Meter Rotational Viscometer
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Control：Manual Control
- Power Source：AC220V
- Product Name：Portable Laboratory Viscosity Meter Rotational Vis
- Measurement Range：10~2000000 MPa.S
- Spindle：No.1~No.4, Total Four Spindles
- Rotation Speed：0.3 Rpm, 0.6 Rpm, 1.5 Rpm, 3 Rpm, 6 Rpm, 12 Rpm, 3
Base Info
- Model NO.：GDJ-8S
- Optional Accessories：Circulatory Water Bath, Double-Layer Sample Cup
- Transport Package：Wooden Case for Viscosity Meter Rotational Viscome
- Trademark：GOLD
- Origin：China
- Production Capacity：100 Sets, Month
Description
Optional accessoriesHWY-10 Circulatory water bath Special double-layer sample cup No.0 spindle(low viscosity adapter) Small sample adaptor
I.Summary
1. This digital rotational viscometer is the upgraded product of the rotational viscometers manufactured by our company.
2. It adopts advanced machinery design, manufacturing process and micro-computer technology.
3. The data acquisition is accurate.
4. The high subdivision drive stepping motor rotate stably and accurate.
5. The display adopts high light LCD screen to make the data showed clearly.
6. It can show viscosity, rotate speed, temperature of sample, percentage, spindle number, and maximum measurement range.
7. The power supply adopts 12V adapter.
8. Its capacity of resisting disturbance is good.
9. The digital viscometer is equipped with a specialized print port.
10. It can print out the test result by the printer.
II.Related products
III. Our Packing:
IV.Detail Images:
V.About us:
Every year we participate in the various countries of the exhibition, will recommend our products to the needs of customers around the world.We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
VI. Contact Us:
I.Summary
1. This digital rotational viscometer is the upgraded product of the rotational viscometers manufactured by our company.
2. It adopts advanced machinery design, manufacturing process and micro-computer technology.
3. The data acquisition is accurate.
4. The high subdivision drive stepping motor rotate stably and accurate.
5. The display adopts high light LCD screen to make the data showed clearly.
6. It can show viscosity, rotate speed, temperature of sample, percentage, spindle number, and maximum measurement range.
7. The power supply adopts 12V adapter.
8. Its capacity of resisting disturbance is good.
9. The digital viscometer is equipped with a specialized print port.
10. It can print out the test result by the printer.
II.Related products
| Type | GDJ-1B | GDJ-5S | GDJ-8S | GDJ-1E |
| Range(mPa.s) | 10~2,000,000 | 10~100,000 | 10~2,000,000 | 1~6,000,000 |
| RPM | 0.3/0.6/1.5/3/6/12/30/60 | 6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 | 0.1~100, Stepless speed regulation |
| Spindle | 1#,2#,3#,4# | 1#,2#,3#,4# | 1#,2#,3#,4# | 0#,1#,2#,3#,4# |
| Accuracy | ±1% Full Scale F.S. | ±1% Full Scale F.S. | ±1% Full Scale F.S. | ±1% Full Scale F.S. |
| Repeatibility | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Output | Microprinter, Application software | Optional printer | Optional printer | Microprinter, Application software |
| Optional parts | Spindle 0#(low viscosity adapter) Adapter for little sample HWY-10 HWY-501 Water bath Glassware constant temperature cup | Spindle 0#(low viscosity adapter) Adapter for little sample HWY-10 HWY-501 Water bath Glassware constant temperature cup | Spindle 0#(low viscosity adapter) Adapter for little sample HWY-10 HWY-501 Water bath Glassware constant temperature cup | Adapter for little sample HWY-10 HWY-501 Water bath |

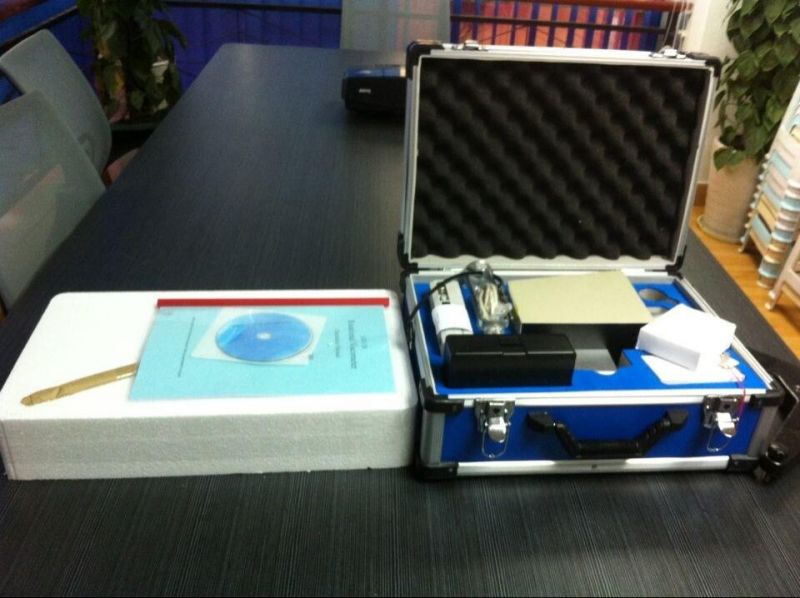

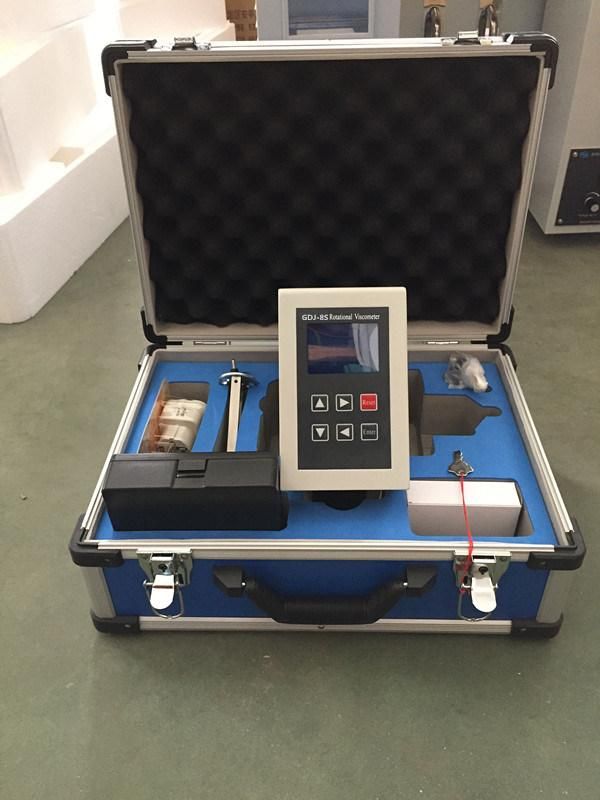

III. Our Packing:

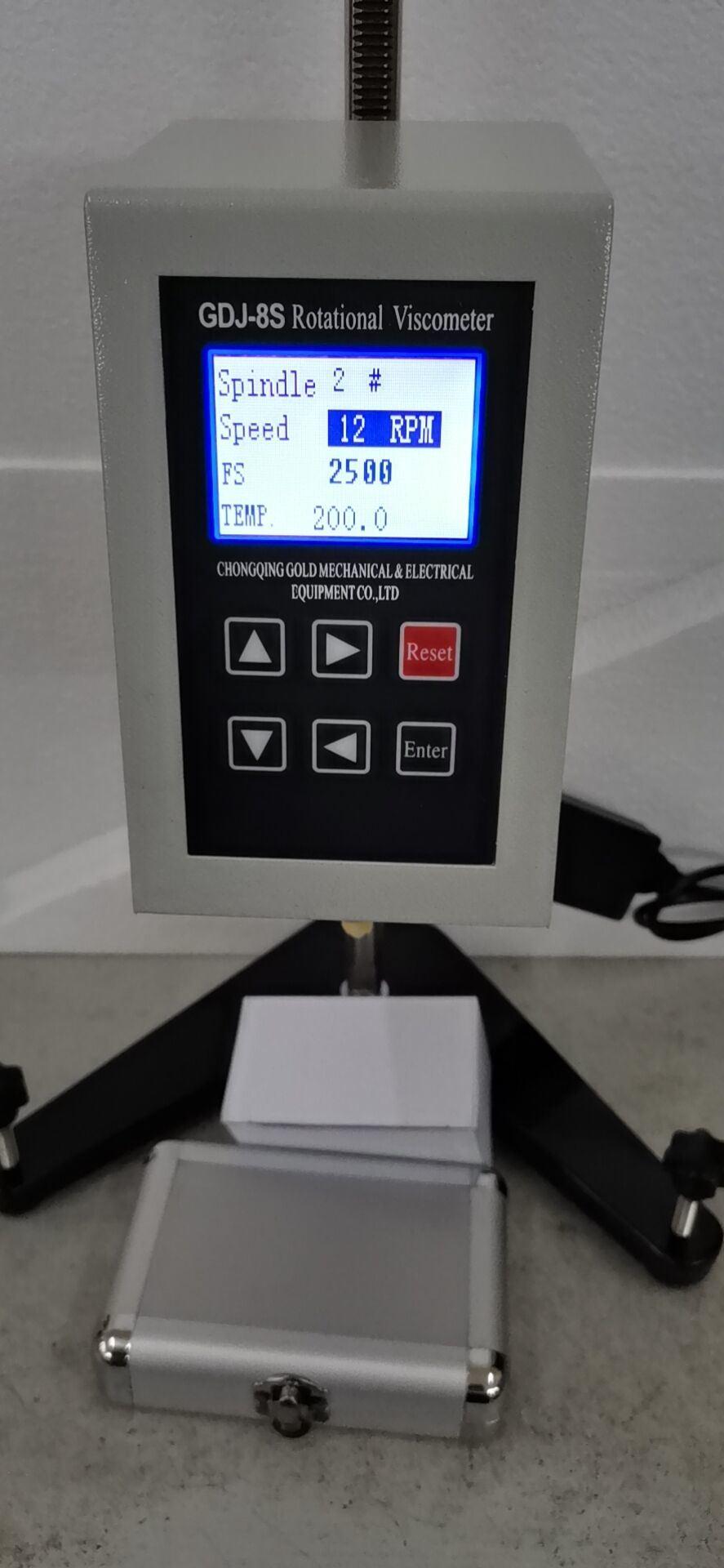

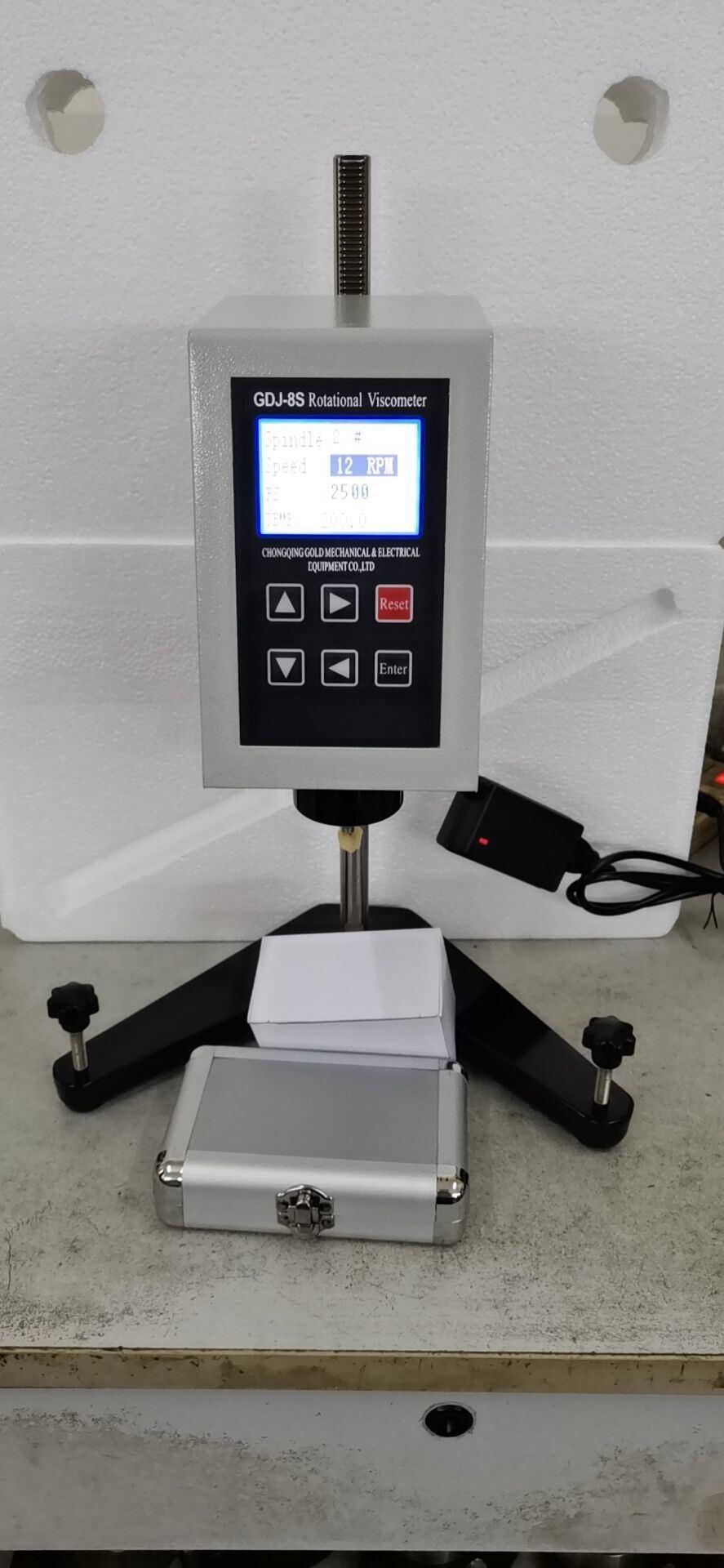

IV.Detail Images:

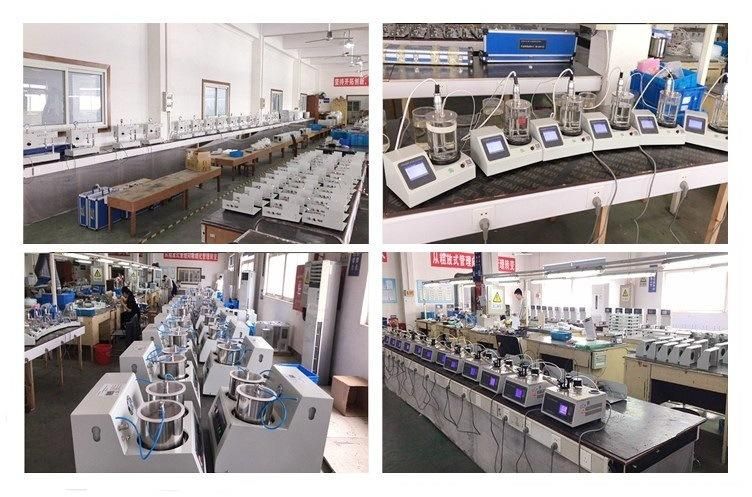

V.About us:
