Haomai 1600 Six Phase Relay Tester High Accuracy Current Injection Device for Substation Secondary Protective and Measurement Relay Test
Haomai Electric Power Automation Co., Ltd.- After-sales Service：7*24 Hours Online Service
- Warranty：1 Years
- Output：Max 120V,30A Per Phase
- Frequncy：DC--3000Hz
- AC Accuracy：0.1%
- Resolution：4 Ma
Base Info
- Model NO.：Relaystar 1600
- Digital Input：10 *10-250VDC or Free Contact
- Digital Output：8*AC(0.5A,250V) , 8 * DC(0.5A,60V)
- PC Control：Available
- Transport Package：Standard Export Wooden Package
- Specification：420*360*210
- Trademark：Relaytestar
- Origin：China
- HS Code：903033900
- Production Capacity：100px,Week
Description
Product Description

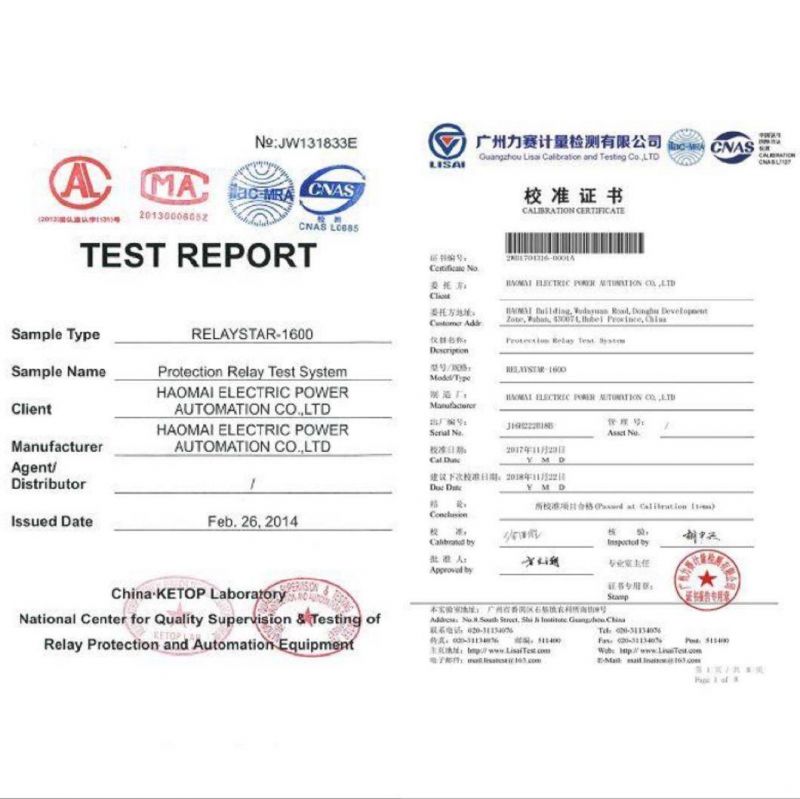

Haomai 1600 six phase relay tester high accuracy current injection device for substation secondary protective and measurement relay test 6-Phase AC(L-N) 6x0…40A 3-Phase AC(L-N) 3x0…80A 1-Phase AC(LL-LN) 1x0…240A DC(L-N) 6x0…±20 A Power 6-Phase AC(L-N) 6x300VA At 40A 3-Phase AC(L-N) 3x450VA At 80A 1-Phase AC(LL-LN) 1x1000VA At 240A DC(L-N) 6x120VA At 20A Accuracy AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A) Resolution 1mA Setting Range 6-Phase AC(L-N) 6x0…150V 3-Phase AC(L-N) 3x0…300V DC(L-N) 6x0…±175V Power 6-Phase AC(L-N) 6x80VA At 150V 3-Phase AC(L-N) 3x100VA At 300V DC(L-N) 6x80VA At 175V Accuracy AC: ±2mV(0.2~2V), ≤0.1% (2~150V) DC: ±10mV (0.5~5V), ≤0.2% (5~175V) Resolution 1mV Auxiliary DCFrequency Range: 0~1200Hz Accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) Resolution: 0.001Hz Phase Range: -360° ~+360° Accuracy: 0.1° Resolution: 0.01° Harmonic Superposition Order: 2~24 Times Distortion: ≤0.5% Certifications Company Profile
Model:Setting Range
Our Advantages
