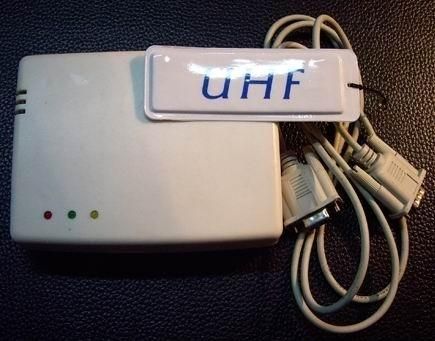

UHF RFID Tester & Writer (DL9600)

Daily RFID Co., Ltd.
  • Function：Identification
  • Reading Range：10 - 25cm
  • Read Prompt：Buzzer
  • Transport Package：1set,Box or Other by Customized
  • Trademark：DAILY
  • Origin：Guangzhou, China

Base Info

  • Model NO.：UHF RFID Tester & Writer (DL9600)
  • Production Capacity：10000 Set,Sets Per Day

Description

Support ProtocolISO18000-6B/ISO18000-6C(EPC G2)Working FrequencyISM 902MHz~928MHz,Or 920MHz~925MHzCustomization860MHz~960MHz Working ModeFHSS or working mode of fixed frequency pulse transmitting set by softwareRF Power20dBm~30 dBm(set by software)
DL9600 UHF Writer & Tester Antenna Integrated Reader.Read-Write performance
 Read SpeedThe average read time for single card is less than 10ms per 64 bitsRead Distance20cm ~ 40cm(according of tag and environment)Write Speed8bits less than 30msWrite Distance10cm ~ 25cm(according tag)Read PromptBuzzer
DL9600 UHF Writer & Tester Antenna Integrated Reader.Data Port interface
 RS232 PortYes
DL9600 UHF Writer & Tester Antenna Integrated Reader.Electric parameterPower SupplyDC+5VPower Consumption4W
DL9600 UHF Writer & Tester Antenna Integrated Reader.Exterior and weightDimension140mm×105mm×34mm Weight500g
DL9600 UHF Writer & Tester Antenna Integrated Reader.Working environment
 Working Temperature-30ºC~70ºC  Product Details:Support ProtocolISO18000-6B/ISO18000-6C(EPC G2)Working FrequencyISM 902MHz~928MHz,Or 920MHz~925MHzCustomization860MHz~960MHz Working ModeFHSS or working mode of fixed frequency pulse transmitting set by softwareRF Power20dBm~30 dBm(set by software)
DL9600 UHF Writer & Tester Antenna Integrated Reader.Read-Write performance
 Read SpeedThe average read time for single card is less than 10ms per 64 bitsRead Distance20cm ~ 40cm(according of tag and environment)Write Speed8bits less than 30msWrite Distance10cm ~ 25cm(according tag)Read PromptBuzzer
DL9600 UHF Writer & Tester Antenna Integrated Reader.Data Port interface
 RS232 PortYes
DL9600 UHF Writer & Tester Antenna Integrated Reader.Electric parameterPower SupplyDC+5VPower Consumption4W
DL9600 UHF Writer & Tester Antenna Integrated Reader.Exterior and weightDimension140mm×105mm×34mm Weight500g
DL9600 UHF Writer & Tester Antenna Integrated Reader.Working environment
 Working Temperature-30ºC~70ºC
