Helmet Retention System Testing Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：Helmet Chin Strap Retention Testing
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：HT-6018-AB
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Products Name：Helmet Retention System Testing Machine
  • Standards：ECE R22.05
  • Application：Helmet and Safety Helmet
  • Certificate：ISO
  • Material：Aluminum Alloy
  • Initial Load：15kg
  • The Mass of Impact Weight：10kg
  • Impact Height：750mm (Adjustable)
  • Control Ways：Computer Control
  • Electricity：220V 50Hz
  • Transport Package：Strong Wooden Case
  • Specification：It′s according ECE R22.05 standard
  • Trademark：HOTOTECH
  • Origin：Dongguan China
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

Rise devicePneumatic rise device (It's controlled by software , or manual)Initial load15kg (It's will according to the standard customized)Impact weight10kg (It's will according to the standard customized)SensorHigh accuracy displacement sensor catch the dataControl ways Computer control Electricity220V 50HZ

Testing Machine images show

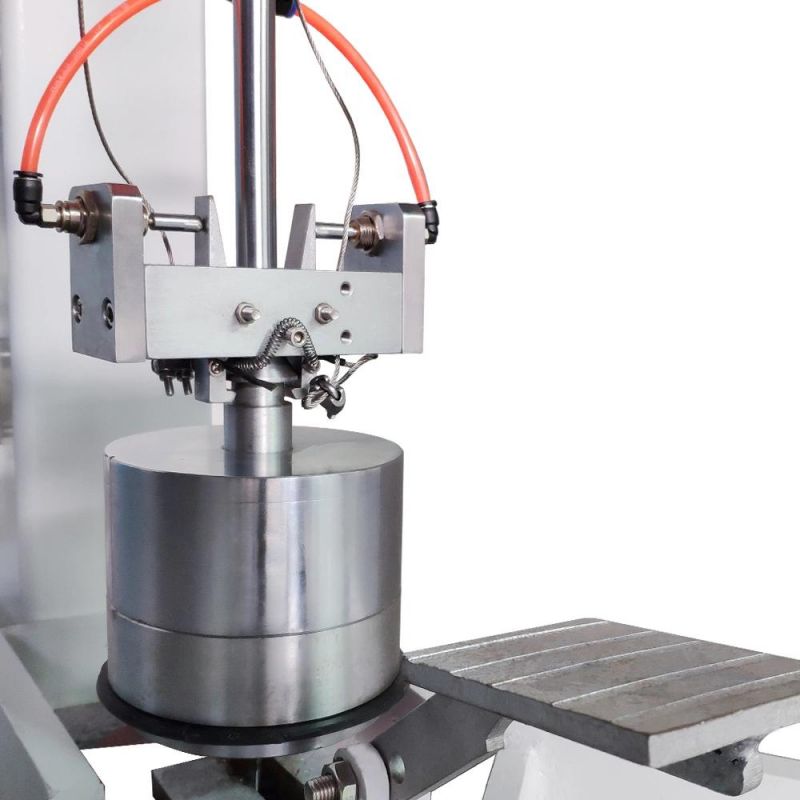

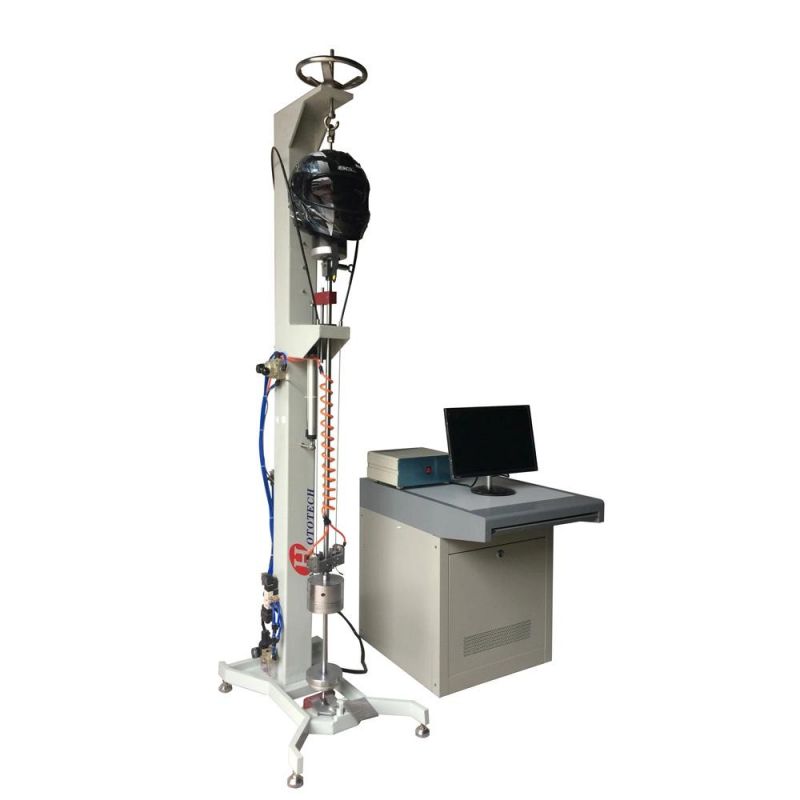

Helmet Retention System Testing Machine

Helmet Retention System Testing Machine
