• Model NO.：HZJY-683
• Power：Electronic
• Model Number：Hz-683
• Usage：Auto Testing Machine
• Language：English
• Max Reading：9999
• Interface：RS-232c
• Power Supply Voltage：198VAC~240VAC
• Frequency：50Hz
• Warranty：1 Year
• After Sales Service：Yes
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030332000
• Production Capacity：100 PCS,Month

ParameterLeakage current and insulation resistanceOutput VoltageHZ683: (NC)1V~1000VDCAccuracy<10G:3%, ≥10G: 5%, ≥100G:10%Measurement Range100kΩ~10TΩ
10V: 100kΩ~100GΩ;100V: 1MΩ~1TΩ;1000V: 10MΩ~10TΩMax Reading9999RangeAutomatic and ManualSpeed55 times/second,15 times/second,3 times/secondAdjustmentOpen-circuit Zero-Adjust for each rangeResult DisplayShow, current, resistance, peak value, and sorting resultCharging Timer999.9sComparator30 sets record,GD/NG Beep: GD,NG,OFF setting.InterfaceRS-232C interface Handler interface
(AT682SE optional interface)OthersVFD four color high-definition screen,keypad lock and data hold functionGENERAL  FEATURESPower SupplyVoltage: 198VAC~240VAC  Frequency: 50Hz  Power: Max 30VADimension 264(W)mm x 107(H)mm x 350mm(D)  Weight5kgORDERING  INFORMATIONAccessoriesATL507: Test Clip            ATL108: RS232 Interface CableTest Voltage0.5KV ,1KV,2.5KV,5KV, 10KVResistance Range0.1M ~ 400GΩMeasuring Time1 minute to 10 minutesShort Circuit Current5mATemperature-10 ~ 40 ºCRelative Humidity20 to 80%Power Supply180 ~ 270VAC, 50Hz/60Hz ± 1%Accuracy± 10%

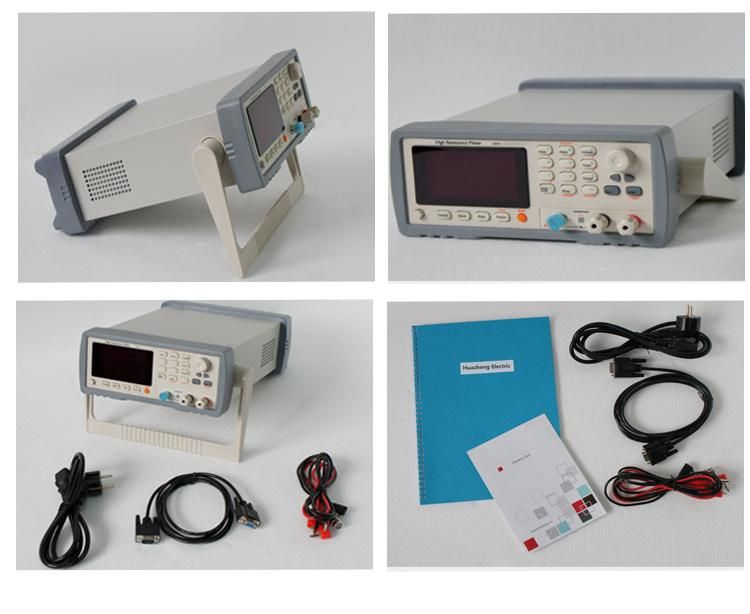

III.Detailed Photos





IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

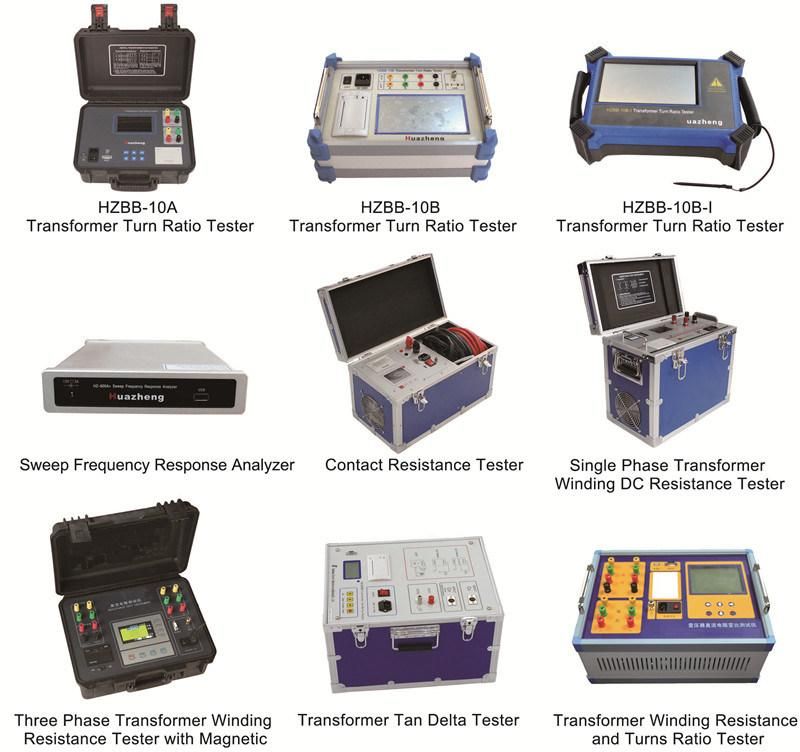

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
