• Model NO.：GD-2806H
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. GD-2806H Trademark GOLD Origin China HS Code 9031809090 Production Capacity 200PCS/Month

Product Description

GD-2806H ASTM D36 Automated Bitumen Softening Point Tester by ring-and-ball method



Introduction:

The Automatic Asphalt Softening Point Tester is designed and made as per GB/T4507 Standard Test Method for Softening Point of Bitumen of national standard of People's Republic of China ,T0608 Softening Point Test (Ring-and-Ball Apparatus) in the industrial standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).
The Automated Softening Point Tester is used  to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various of asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.


Features:

1. The Softening Point-Ring and Ball Apparatus adopts microcomputer to control the test. Automatically stir, linear heating, automatically get the result and automatically print the test result.
2. The beaker adopts high temperature resisting glass material. The sizes of steel ring and ball can meet test standards.
3. Small desktop structure. LCD display. Ligh touch panel. It can determine four samples at a time. Easy to use and results reliable.


Specifications:

1. Power supply: AC 220V (-5%~+10%), 50 Hz;
2. Measurement range:
    (1) Heating medium: distilled water(softening point under 80 ºC) +5 ºC~+80ºC
    (2) Heating medium: glycerin (softening point over 80 ºC) 32 ºC~160 ºC.
3. Temperature resolution: 0.1 ºC
4. Cubage of beaker: 1000 ml
5. Stirrer: the stirring speed can be adjusted continuously.
6. Heating rate: it will be adjusted to 5.0±0.5 ºC/ min automatically after three minutes
7. Heating power: 600 W
8. Test result: LCD screen shows results and printer to print.
9. Ambient temperature: The temperature shall be lower than 35 ºC and keep stable. There shall not be any airflow.
10. Relative humidity: ≤85%
11. Maximum power consumption: 700 W
12. Test samples: 2 or 4 samples
13.Computer port: RS-232C communication port
14.Outline dimension: 400mm×300mm×490mm

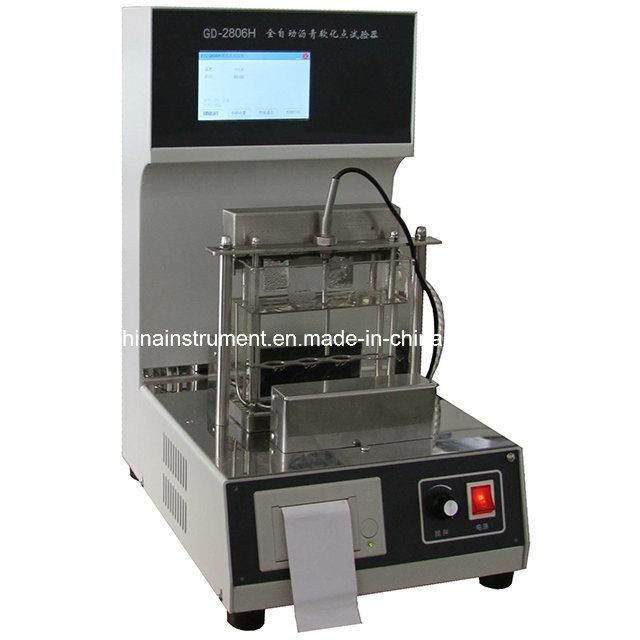

Real Picture of GD-2806H Automatic Softening Point Apparatus:
