• Model NO.：GW-010B
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-010b
• Print：Print The Test Result
• Until：Kg,N,Lb Switchable
• Testing Stroke：800mm
• Motor：AC Frequency Conversion Motor
• Dimension：50*50*170cm
• Power：AC 220V.50Hz
• Transport Package：Standard Export Safety Packing
• Specification：30kg
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-010B Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-010b Print Print The Test Result Until Kg,N,Lb Switchable Testing Stroke 800mm Motor AC Frequency Conversion Motor Dimension 50*50*170cm Power AC 220V.50Hz Transport Package Standard Export Safety Packing Specification 30kg Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

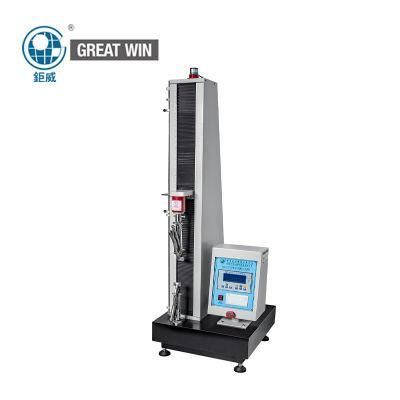

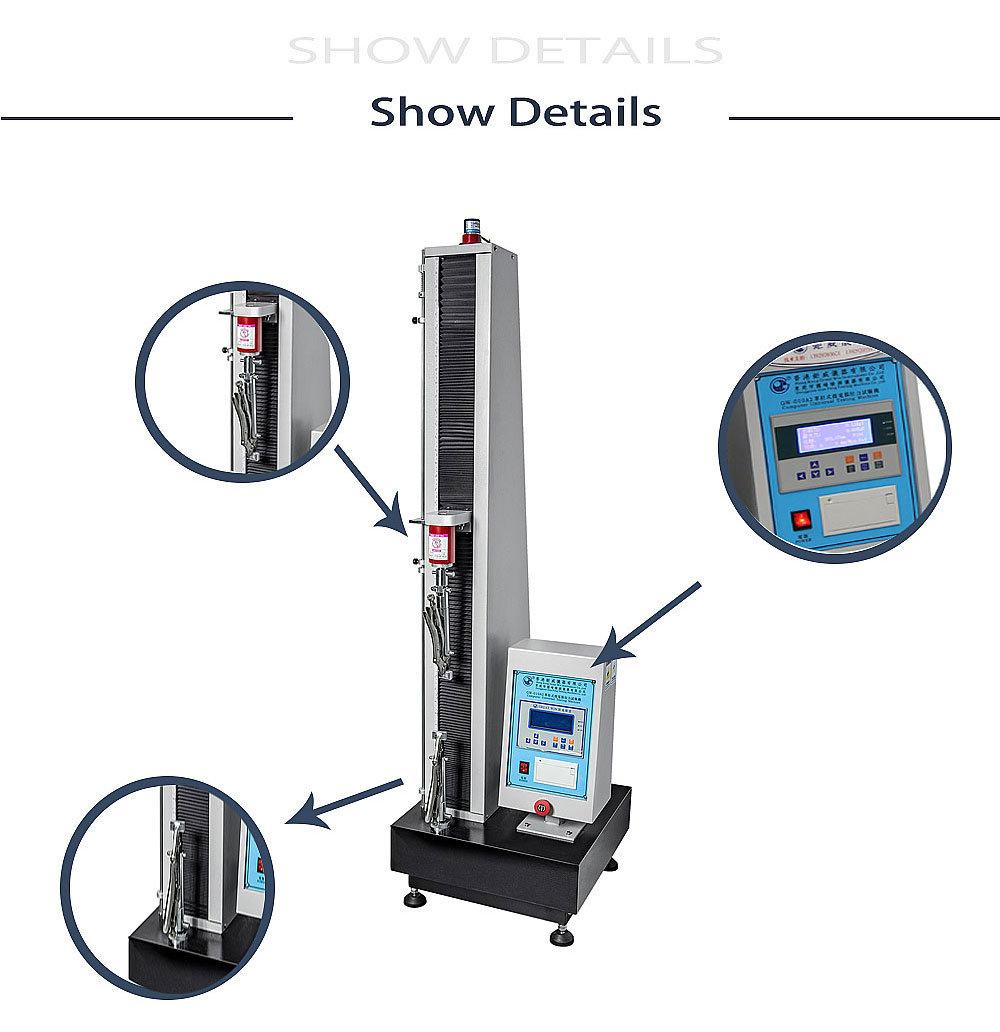

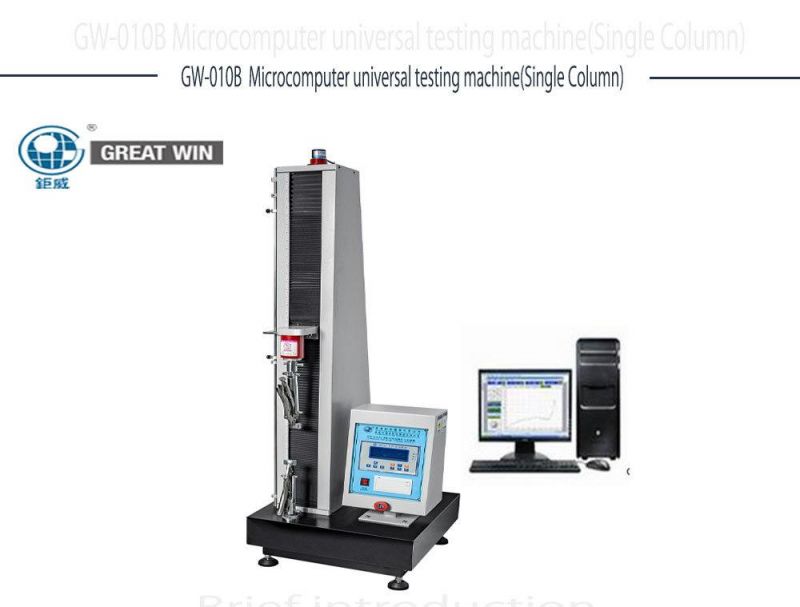

Single Column Computer System Universal Tensile Tester(GW-010B)


•Brief introduction:

This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile, etc., which are the basic facilities for input quality control, physical inspection, material research.

This machine can print the test result with computer.can set up different grips.

•Technical Specifications:



Model	GW-010B Computer system universal testing machine(Single Column)
Max. load:	200kg
Unit:	kg, N, Ib switchable
Load resolution:	1/10000
Load Accuracy:	±1%
Stroke:	800mm
Testing speed:	0-500mm/min adjustable
Motor:	AC frequency conversion motor
Dimension:	50*50*170cm
Weight:	121kg
Power:	220V,15A

•Standard for:
GB,ISO7500/1,JJG475-88,ASTME4,DIN5122,
JISB7721/B7733,EN1002-2,BS1610,CNS9471/9470

•Attached accessories:
1.GW-G: Pliers grips
2. 2pcs cutting moulds(one tear cutting moulds ,one tension cutting moulds)
3. 1  PCS  printer
business PC with 19 inch screen,
software CD, (for computer desk, customer prepared by themselves.)



What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
