Balancing Machine for Roller Rotor

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5

Base Info

  • Model NO.：PHQ-500H
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Certificate：Ce,ISO,SGS,BV.
  • Max. Mass of Workpiece：5000kg
  • Delivery Time：30 Days
  • Warranty：1 Year
  • Number of Packing：2 PCS
  • MOQ：1 Set Rotor Dynamic Balancing Machine
  • Color：Blue
  • Usage：Auto Testing Machine
  • Item：Rotor Dynamic Balancing Machine
  • Transport Package：Packed in Standard Export Wooden Case
  • Specification：ISO9001: 2008 CE SGS
  • Trademark：JP
  • Origin：Shanghai China
  • HS Code：9031100090
  • Production Capacity：1000 Sets,Month

Description

Basic Info.

Model NO. PHQ-500H Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Power Source AC380V Oil Cylinder Position Under Certificate Ce,ISO,SGS,BV. Max. Mass of Workpiece 5000kg Delivery Time 30 Days Warranty 1 Year Number of Packing 2 PCS MOQ 1 Set Rotor Dynamic Balancing Machine Color Blue Usage Auto Testing Machine Item Rotor Dynamic Balancing Machine Transport Package Packed in Standard Export Wooden Case Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 9031100090 Production Capacity 1000 Sets/Month

Product Description

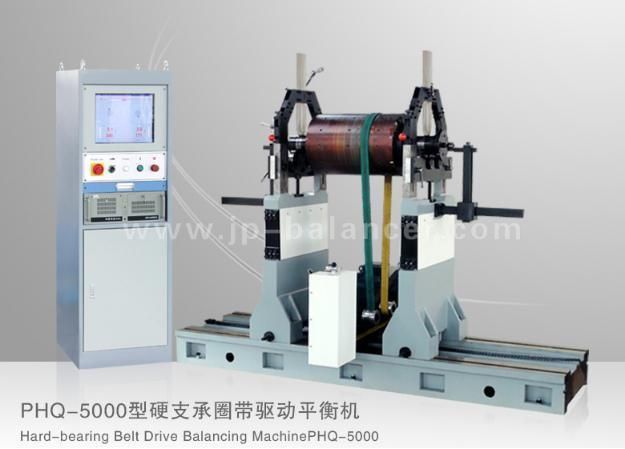

PHQ-5000(JP 580) Belt drive balancing machine

Production parameters:
Technical data at a glancePHQ-5000
Max Mass of Workpiece(kg)5000
Max Diameter of Workpiece (mm)Φ2400
Distance Between Two Support Bearings (mm)500~2200
Journal Diameter Scope of Workpiece (mm)Φ40~380
Diameter Scope of Driving Belt (mm)Φ50~1000
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 795,18531)
Motor Power (kw)152)
Length of Bed (mm)2500
Min Achievable Residual Unbalance Amount (emar)≤1g· mm/kg
Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Balancing Machine for Roller Rotor

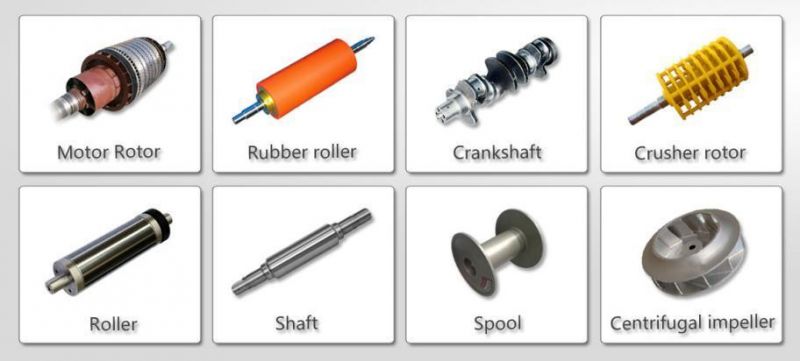

Range of Application

Horizontal Balancing Machine for Electrical Motor (PHQ-500) is also widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

Balancing Machine for Roller Rotor
Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

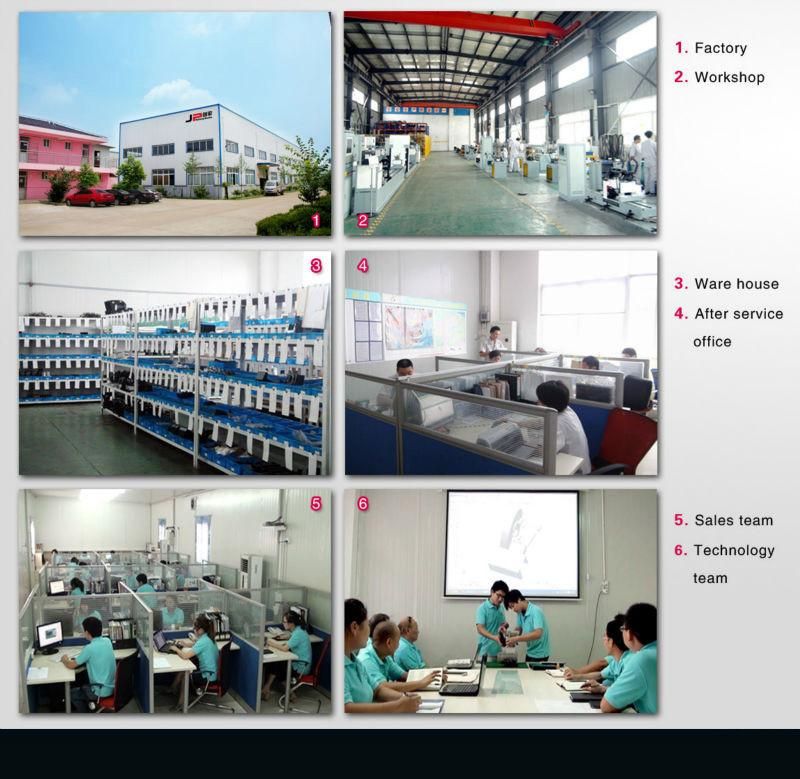

Factory Outlook
Balancing Machine for Roller Rotor

 Certificates
Balancing Machine for Roller Rotor

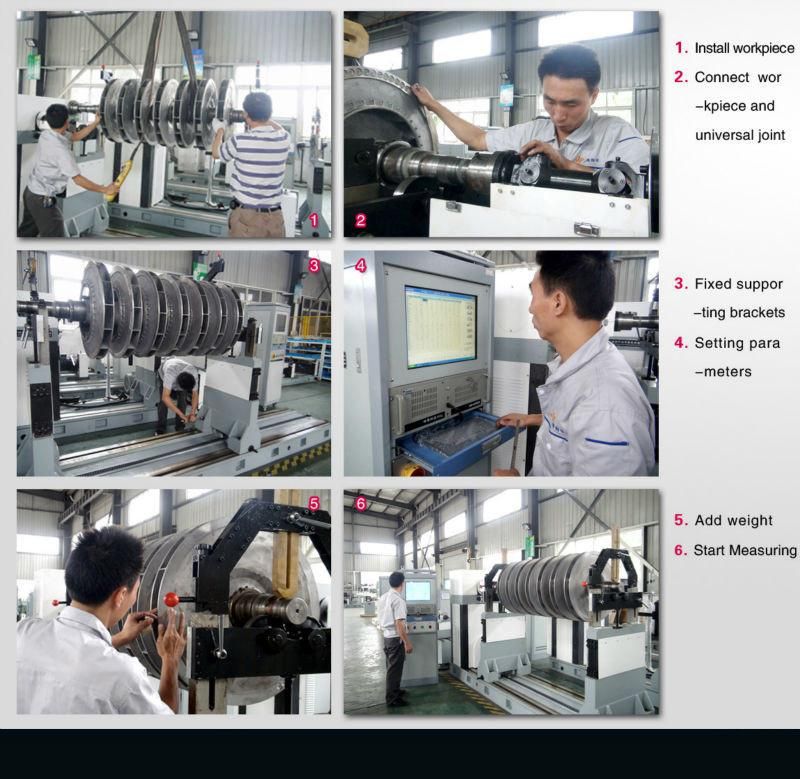

Workshop debugging
Balancing Machine for Roller Rotor
