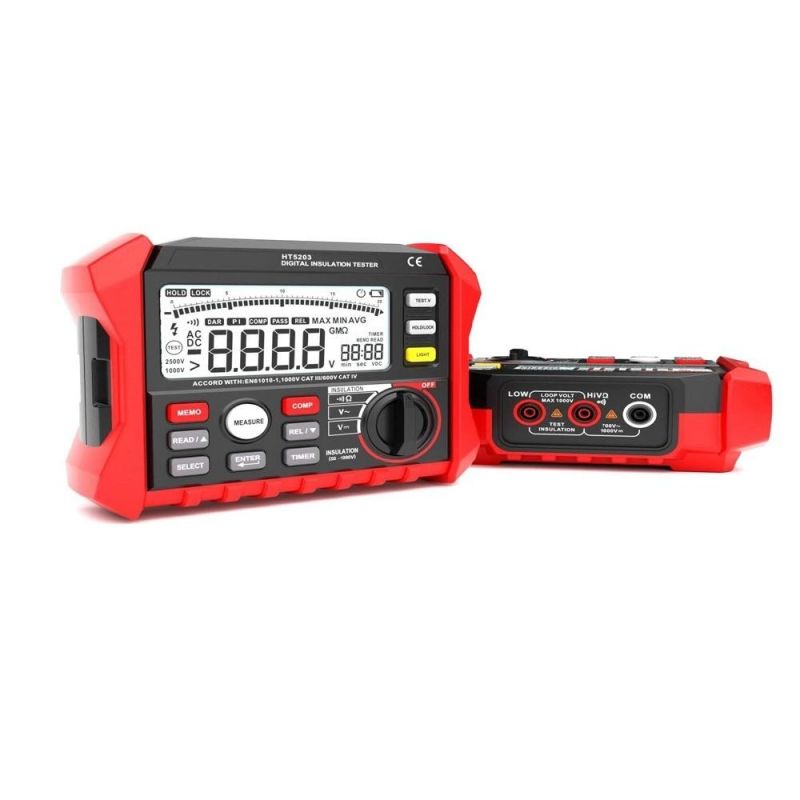

Insulation Tester Wirh Auto Calculate Pi and Dar Insulation Tester Megger Low Battery 220V
Dongguan Hong Tu Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Insulation Tester
- Display：Digital
- Weight：1kg
- Power Supply：6*Lr14 Batteries
Base Info
- Model NO.：HT5203
- Short Circuit Current：Approx.2mA
- Transport Package：4PCS in 1 Carton
- Specification：180*140*65mm
- Trademark：HOTOTECH
- Origin：Guangdong, China
- Production Capacity：100000PCS,Year
Description
SPECIFICATIONS
FEATURE
GENERAL
Source Output Voltage
Measuring Range
Auto Calculate PI and DAR
Power Supply6x LR14 batteries
50V(0%~+20%)
0.01MΩ~50MΩ±(3%+5)
Store /Load Function
100V( 0%~+20%)
0.01MΩ~ 100MΩ±(3%+5)
Compare function
Product Size
180mm x 140mm x65mm
250V( 0%~+20%)
0.01MΩ~250MΩ±(3%+5)
Auto discharge for capacitive load
500V( 0%~+20%)
0.01MΩ~500MΩ±(3%+5)
Timer Function for insulation test
Product Weight
Approx.950g
1.00GΩ~5.00GΩ±(5%+0.1GΩ)
Lock function for insulation test
1000V(0%~+20%)
5.00GΩ~ 10.00GΩ±( 10%+0.2GΩ)
Low Battery Indication
Safety Rating
EN61010-1
EN61557-1
EN61326-1
CAT.IV 600V
CAT.II 1000V
Short circuit current Approx*.2mA
DCV and ACV Test
DC Voltage Test
0.1~1000V±0.5%
Continuity test
AC Voltage Test
0.1~750V±1%
Auto power Off
Continuity Test
0.01 Ω~ 200 Ω±0.5%
Digital and analog display
