• Model NO.：WAW-2000D
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V,220V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：1500kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1354*800*2805mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

Constant stress uniform deformation constant displacement three closed loop control and program control dealingNumber of Screw drivers4Max. Load(KN)100 200 /300600100012002000   Load Accuracy≤± 1%/ ≤± 0.5%Load Range2%~100%FS Load Resolution1/300000Deformation Measurement Range 2%~100%FSDeformation Accuracy≤± 1%Displacement Resolution 0.01mmTesting speeds (mm/min)0.1~1180.1~1230.1~1230.1~700.1~700.1~70Adjustable crosshead speed(mm/min)450450350350320320Displacement Error≤±0.5%Max. Piston Stroke(mm)200200200200/250250250   Max. Tension Test Space (mm)780780900950/9809301250Max. Compression Test Space550550650700640850Column Effective Spacing(mm)485485500560/580610800   Clamping MethodHydraulic Automatic ClampFlat Specimen Clamping Width(mm)80*8080*8090*90100*100120*110150*120   Compression Plate Size Φ 160mmBending Roller Distance450mmWidth Of Bending Rollers 120mmPower Supply3-phase, AC380V, 50Hz   (Can Be Customized)

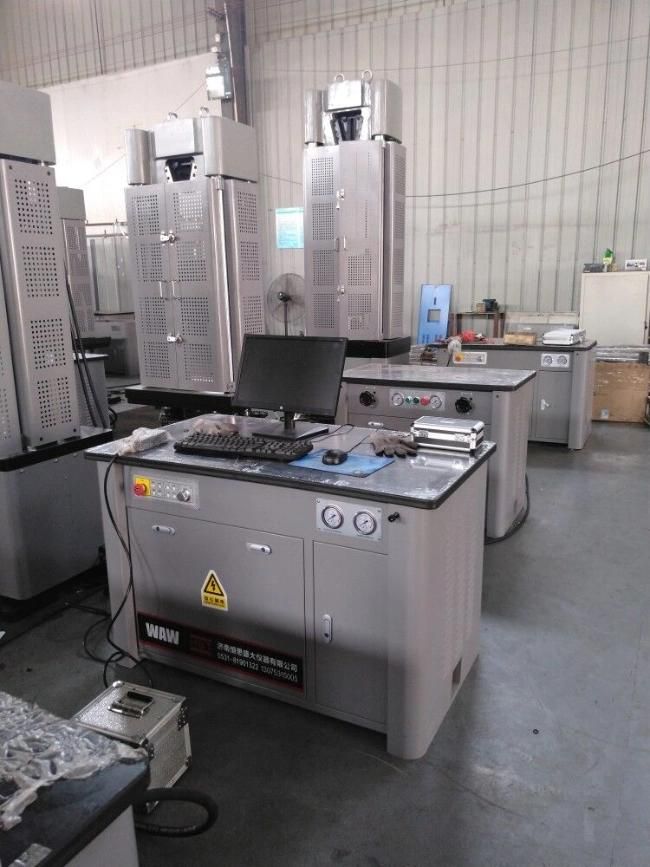

Oil Source control cabinet:

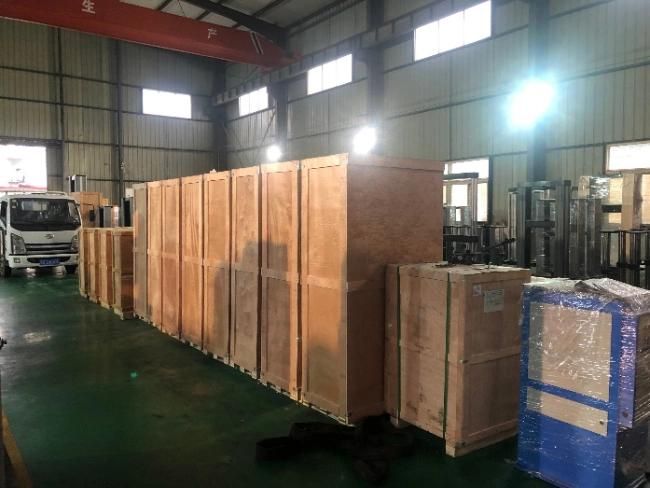

Package & Transportation :

Our customer feedback:

Exhibition site:


CE Certificate:

Company information
