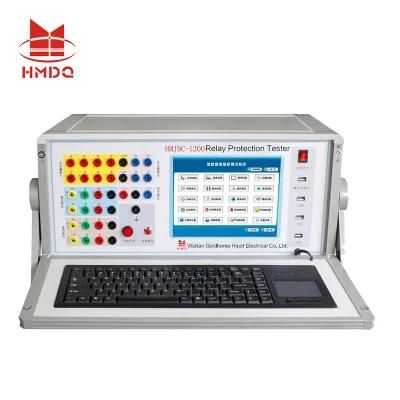

Six Phase Relay Protection Tester/Secondary Current Injection Test Set

Wuhan Goldhome Hipot Electrical Co., Ltd.
  • Type：Strength Testing Machine
  • Maxcapacity：No
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：LCD

Base Info

  • Model NO.：HMJBC-1200
  • Control：Computer Control
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Time Measuring Range：0.1ms - 9999s
  • Accuracy of Measurement：<0.1ms
  • Phase Voltage / Line Phase Output Power：70va , 140va
  • Harmonic Time：1-20
  • Frequency Range (Fundamental)：20-1000Hz
  • Output Precision：0.5 Degree
  • Product Name：Production Relay Tester
  • Work Temperature：-10°c~ 50°c
  • Transport Package：Wooden Box with Foam Inside
  • Specification：customize
  • Trademark：GDHM
  • Origin：Hubei, China(Mainland)
  • HS Code：9030820000
  • Production Capacity：200sets,Month

Description

Current output              0~±10A / phase,  0~±30A / 3 parallelOutput Precision  0.5 degree

AC voltage output

Phase voltage output (effective value) 0~120V  Output Precision0.5 degreeLine voltage output (effective value)   0~240VPhase voltage / Line phase output power    80VA / 100VAFrequency range (fundamental)                  20~1000HzHarmonic time          1~20

DC voltage output

Phase voltage output range       0~±160V  Output Precision0.5 degreeLine voltage output range     0~±320VPhase voltage / Line phase output power     70VA / 140VA

10 path digital input and 8 path digital output

Time measuring range      0.1ms ~ 9999saccuracy of measurement<0.1ms
