• Model NO.：NDW-200
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Trademark：Chengyu
• Origin：China
• HS Code：9024101000
• Production Capacity：1000

ModelNDW-200Max torque200 NmTest Range10 ~ 200 NmTest classClass 1Control methodComputer controlTorque value relative error±1%Torque repeatability error±1%Torque effective test range(F·S)2%~100%F·S (4~200Nm)Torque resolution0.02 NmEffective distance between two chucks  (moving space between two chucks)0-500mmConcentricity accuracy between two clamps0-500mmTorsion angle value relative error≤ Φ 0.2mm, in the range of 1000mmTorsion angle display range≤±1%Torsion angle display rangeUnlimited (or 99999°)Torque angle resolution(°)0.1°Torque angle resolution(°)0.05-800Torsion speed1-720°/min Stepless speedTorsion speed relative error≤±1% of setting vlauePower SupplyAC 220V±10%,50HzTest rotating directionTwo ways: forward & reversalMain Host weight180kg

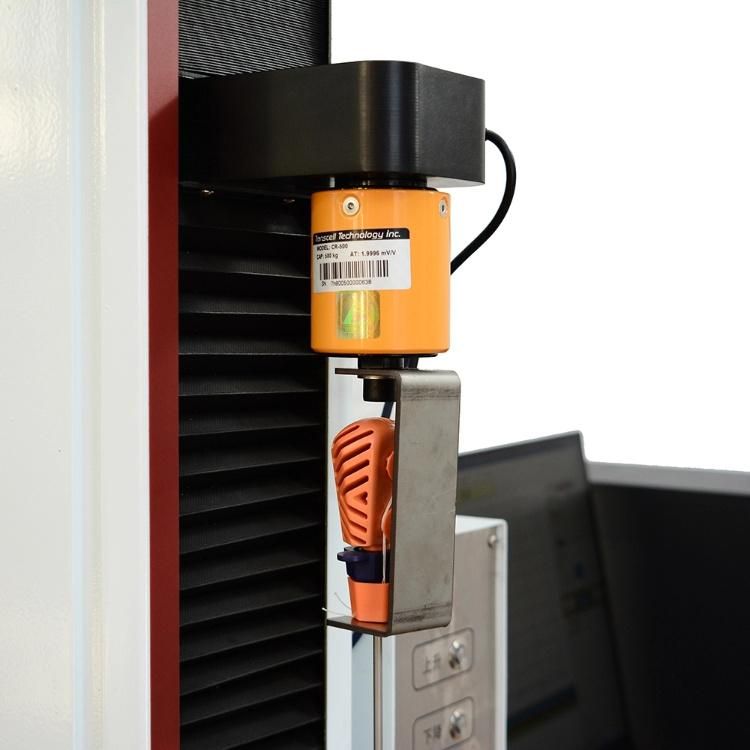

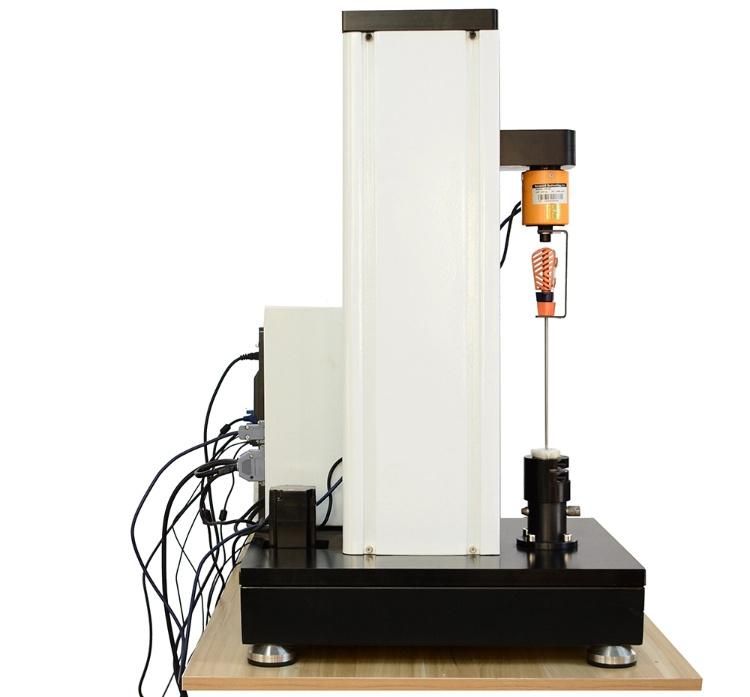

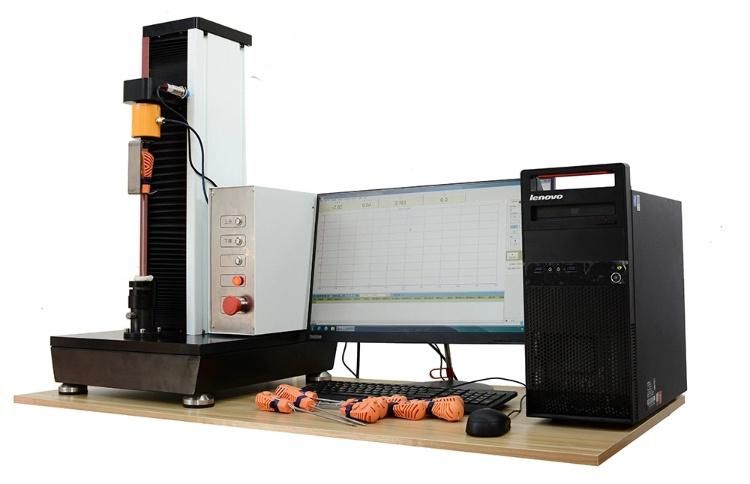

4. Details Images



























FAQ

1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
