• Model NO.：GD-02002
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Item Name：En50086 Single Wire and Cable Tester
• Applicable Standards：IEC60332, En50086
• Application 1：for Vertical Flame Propagation of Single Cable Tes
• Application 2：Measure The Combustion Condition of Melting Droppi
• Chamber Size：1200mm*300mm*450mm
• Cabient Material：Stainless Steel
• OEM Service：Yes
• Training：Your Technicals Can Get Free Training in Our Facto
• Installation：We Can Send Our Engineers for Installation
• Warranty：1 Year
• Transport Package：Packed in Veneer Case
• Specification：Refer to detailed description
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10 Sets, Month

Basic Info.

Model NO. GD-02002 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Na Item Name En50086 Single Wire and Cable Tester Applicable Standards IEC60332, En50086 Application 1 for Vertical Flame Propagation of Single Cable Tes Application 2 Measure The Combustion Condition of Melting Droppi Chamber Size 1200mm*300mm*450mm Cabient Material Stainless Steel OEM Service Yes Training Your Technicals Can Get Free Training in Our Facto Installation We Can Send Our Engineers for Installation Warranty 1 Year Transport Package Packed in Veneer Case Specification Refer to detailed description Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10 Sets/ Month

Product Description

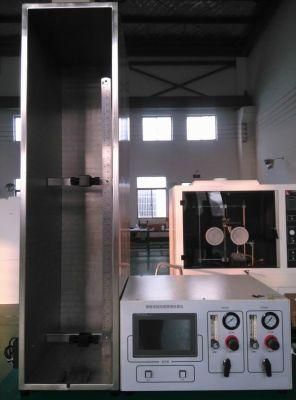

 EN50086 Single wire and cable vertical combustion testerIntroduction:

The single wire and cable vertical combustion tester is used to test the flame retardant performance of the insulation layer of the wire and cable under abnormal conditions such as excessive heat and current. It can be used for vertical flame spread test of electric wire and cable, and can also check the burning condition of dew under flame condition.

Note: the door of the test box is for decoration and dustproof. According to the standard requirements, the experiment should be open.

Standards:

1. IEC 60332-1-1,2,3
2. EN 50086-1-1994
3. GB/T 18380.11,12

Features:

1. Stainless steel cabinet, inner chamber is 1200mm*300mm*450mm(height*width*depth);
2. Two pieces of a stainless steel pole, which can tie single piece cable;
3. 1kw mixing type standard burner which can supply standard test fire source;
4. Control box equipped with pressure gauge, reducing valve, electronic flow meter and cut off valve;
5. Control box equipped with gas one-way valve to ensure the safety;

Our Services:
Pre-sale Service:

Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical data and operation manual sent for evaluation.
After-sale Service:

Training how to install the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
