High Voltage Tester Oil Type Transformer Withstand Voltage Tester AC DC Hipot Tester with AC Microohmmeter
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Type：AC DC Hipot Tester
- Accuracy Grade：0.5
- Display：Needle
- Weight：0-100Kg
- Power Source：AC220V
- Transformer Type：Oil Immersed
Base Info
- Model NO.：GDJZ
- Output Voltage：AC50kv DC70kv
- Capacity：3kVA,5kVA,10kVA,15kVA,20kVA and So on
- Application：Withstand Voltage Test and Leakage Current Test
- Transport Package：Plywood Case
- Trademark：GOLD
- Origin：Chongqing, China
- HS Code：9030849000
- Production Capacity：500 Pieces,Month
Description
Capacity
KVA
GDJZ-50 Series
GDJZ-100 Series
GDJZ-150 Series
AC
DC
AC
DC
AC
DC
3kVA
50KV
70KV
5kVA
50KV
70KV
100KV
140KV
10kVA
50KV
70KV
100KV
140KV
150kV
210KV
15kVA
50KV
70KV
100KV
140KV
150kV
210KV
20kVA
50KV
70KV
100KV
140KV
150kV
210KV
25kVA
50KV
70KV
100KV
140KV
150kV
210KV
30kVA
50KV
70KV
100KV
140KV
150kV
210KV
50kVA
50KV
70KV
100KV
140KV
150kV
210KV
Notice
If the maximum voltage is less than 100kv we will offer dry HV transformer for the tester, otherwise we will offer oil HV transformer for the tester;
The capacity and maximum voltage output could be customized according to the requirements of customer if you can not find the right one in this table;
The weight listed in the table is HV transformer only it does not include the weight of main control box. Please confirm the total weight of the tester with our sales engineer before order;
FAQ
1. Q: What is the language? After sale service,the Warranty?
A:English version or as your requirement.Warranty : 1 year.
2. Q: Does it output AC or DC or AC&DC?
A: For model GDJZ, it's AC and DC output. For model GDJ, It's AC output.
3. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: Some models have insulation oil, no battey, which does not influence the delivery.
4. Q: Where is it used?
A: Testing dielectric strength of High-voltage electrical equipment, electrical components, insulation material. For example,cable, high-tension switch etc.
5. Q: What types of testing equipment?What's the difference?
A: There are dry, oil-immersed and inflatable,three types. Differences as follow:
Dry: light weight, volume light, can rewind.
Inflatable: interrupter resistance, and light weight.
Oil-immersed: capacity, cheap, easy maintenance, mainstream products.
Product Details

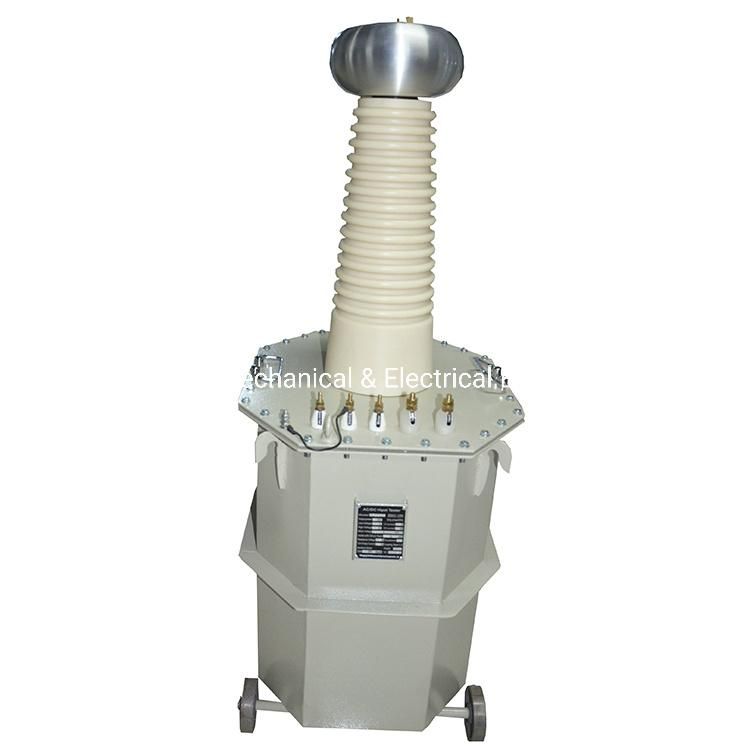

Oil Type Transformer

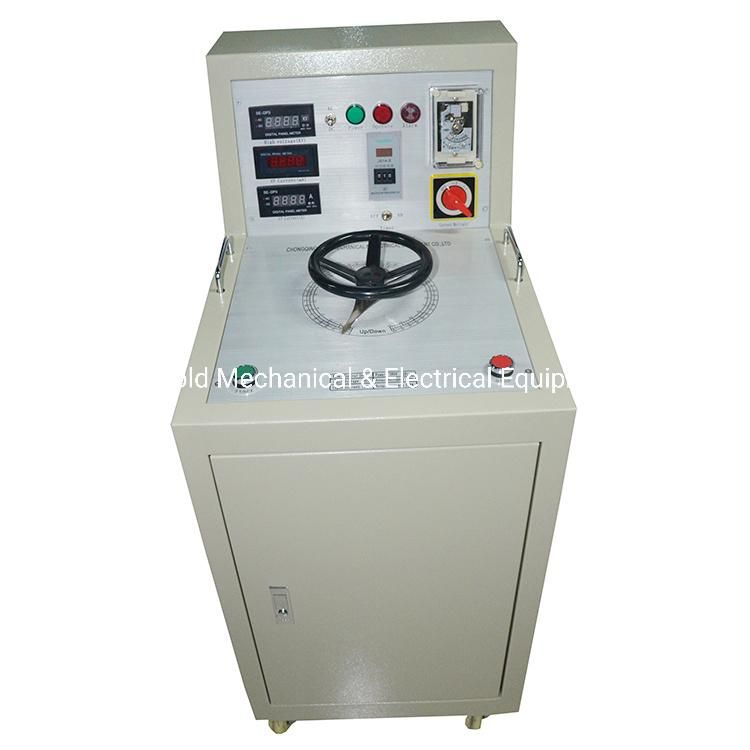

Controller for Large Capacity
