Wire Harness Color Sequence Detector (WL-DC1)

Suzhou Crown Electronic Technology Co., Ltd.
  • Max Diameter of Workpiece：Max. Width 50mm
  • Mass Scope of Workpiece：Single Row House Connector
  • Type：Wiring Harness Color Sequence Detector
  • Maxcapacity：Detection Accuracythigh Precision
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：WL-DC1
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：None
  • Model：Wl-DC1
  • Trigger：Auto Trigger
  • Detection Accuracy：High Precision
  • House Connector Width：Max.50mm
  • Row of House Connector：Single Row
  • Wire Placement Requirements：Arbitrarily Placed
  • Support Output：FM-9A Supports I,O Output
  • Features：Small Size and Light Weight
  • Machine Net Weight：10.7kg
  • Dimensions：43X26X38cm
  • Functions：Identify Wire Color, Determine Correct Position
  • Transport Package：Wooden Case
  • Specification：43x26x38cm
  • Trademark：Crown
  • Origin：China, Jiangsu
  • HS Code：9026209090
  • Production Capacity：50-120PCS,Min

Description

Single row

Wire placement requirementsArbitrarily placedSupport outputFM-9A supports I/O outputFeaturesSmall size and light weightDimensions43x26x38cmWeight10.7kgFunctions

Identify wire color, determine correct position, determine if wire terminal inserted in place, detect poor wire harness and alarm NG



Features:


  • Test items:

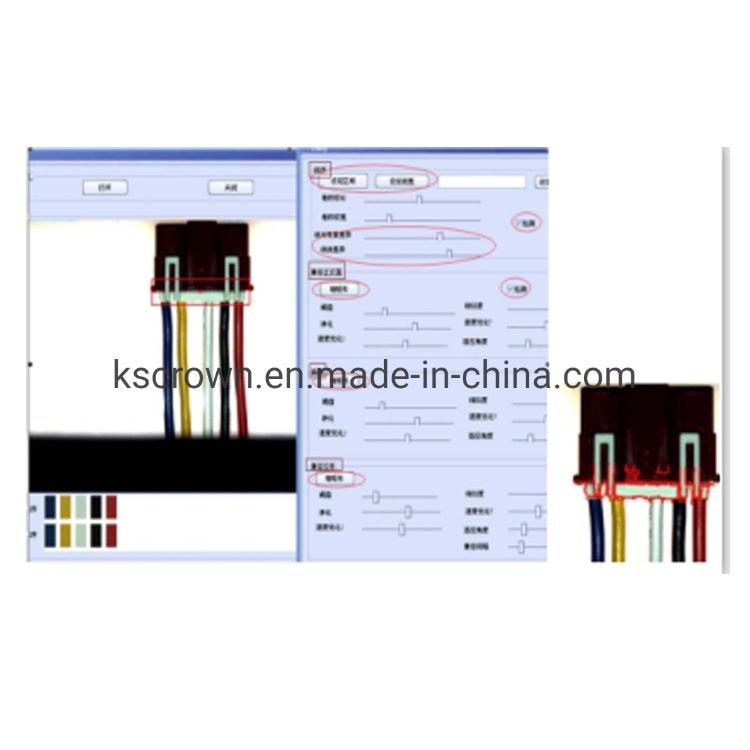

    (1) Automatically identify the color of each wire of the harness and systematically determine whether the position is correct.

    (2) Automatically judge whether the wire terminal hole is inserted incorrectly or in place

    (3) Automatically display the wire position of the bad line sequence, and give an audible alarm prompt NG

  • Automatically triggers after the material is stable, no need for foot switch or other IO input trigger

  • The detection accuracy is high, and even if characters are printed on the surface of the wire, the system can eliminate the interference of characters and accurately distinguish the color line sequence. Detection time <0.2s/pcs

  • You can place the harness to be tested in the inspection frame at will, without strict placement restrictions.

  • FM-9A can support I/O output, with small size and light weight

  • Integrated embedded device, low power consumption (<35W), anti-virus

  • Easy to use, easy to replace the material under test


Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Wire Harness Color Sequence Detector (WL-DC1)

Product show:

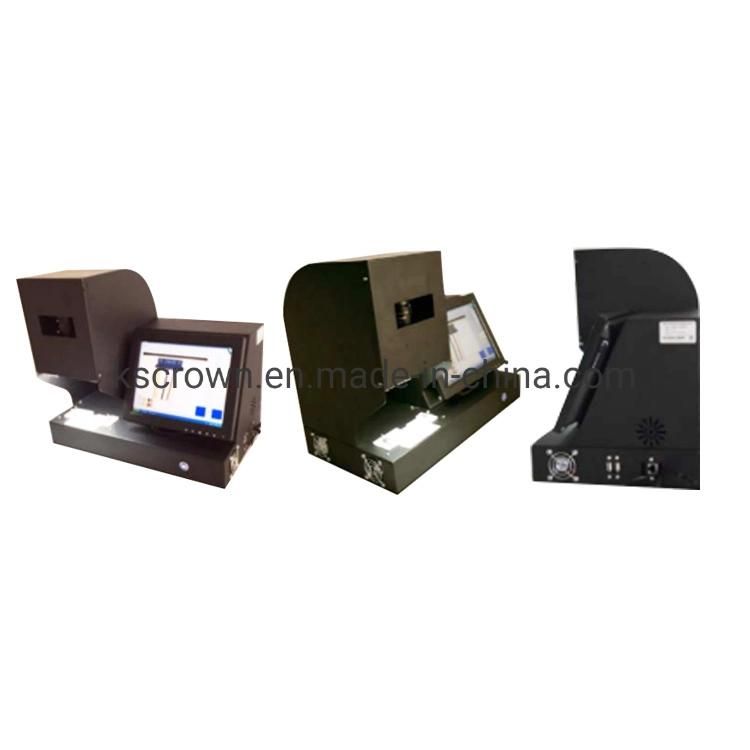

Wire Harness Color Sequence Detector (WL-DC1)
