100kg Load Fiber Tensile Strength Testing Machine
Dongguan Haida Equipment Co., Ltd.- Warranty：One Year
- Type：Tensile Testing Machine
- Maxcapacity：200kn
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：HD-B609B-S
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Control and Display：LCD Controller or Computer
- Test Speed：0.01 to 500 mm,Min
- Resolution：1,250, 000
- Accuracy：0.5%
- Certificate：CE, ISO, SGS
- Delivery Time：15 Days After Receie The Deposit
- Max. Stroke：1000mm (Including Fixture)
- Screw：High Precise Ball Screw
- Elongation Accuracy：0.001mm
- Transport Package：Strong Wooden Case
- Specification：ASTM D903; GB,T16491; GB,T1040; GB,T8808; GB13022;
- Trademark：Haida
- Origin：Donguan, China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description

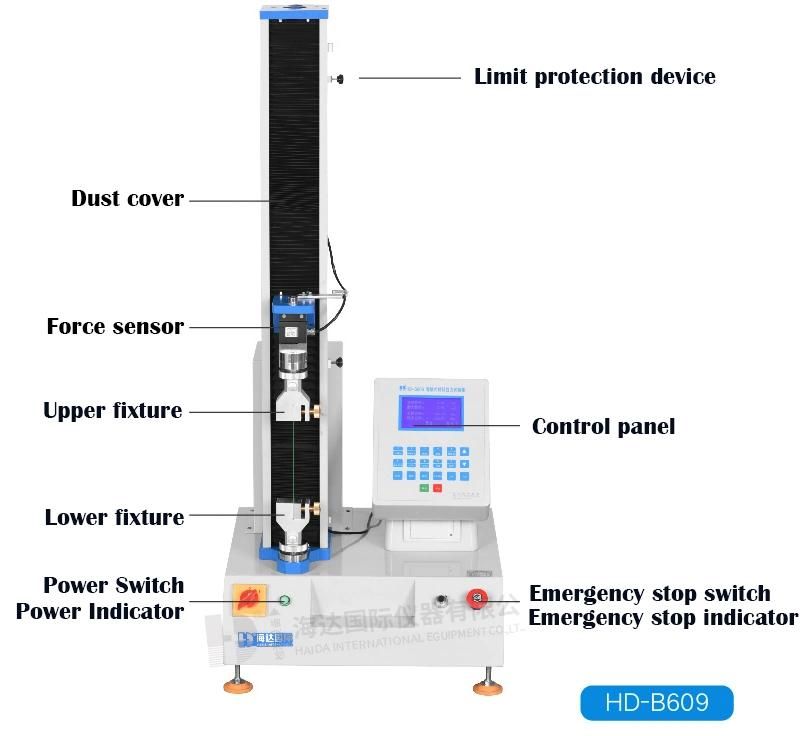

Features of Rubber Material Tension Resistance Strength Test Machine:
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
