• Model NO.：SXOT
• Power Supply：AC 200V-240V ,50Hz
• Test Precision：1%
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：1000 Units

Basic Info.

Model NO. SXOT Power Supply AC 200V-240V ,50Hz Test Precision 1% Transport Package Plywood Case Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030899090 Production Capacity 1000 Units

Product Description

General Information:

Keywords: Oil Dielectric Strength Tester
Oil Breakdown Tester
Transformer Oil Dielectric Strength Tester

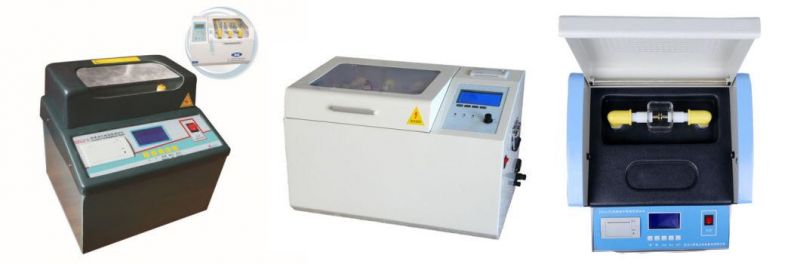

SXOT-II conforms to international standard IEC-156 and national standard GB507-86, can be used for power frequency dielectric break down test on the transformer oil, capacitor oil, electric device, insulation tool, electric manufacturer and etc. It's widely used in the fields of power system, petroleum, chemical industry, railway station, power station, electric manufacturer and etc.


Features:
√  Self detecting function. The regulator could return to zero start automatically.
√  Controlled by micro computer, easy to operate.
√  Build-in printer.
√  Automatic magnetic bar stir, to eliminate uneven and bubble of oil.
√  The user could select the test times, static stirring time, sound/light alarm continuously printing or stop printing.

The equipment to match the standard IEC 156, and the instrument is fully automatic type.

Specification:
Power supply: AC 200V-240V ,50HZ ±5%
Test voltage: : AC 0~100KV
Limitation current: 5mA
Test precision: 1%
Voltage boosting rate:  2KV/s±10%
Presetting: 1-9 times
Stirring time: 0-1 minute 9 seconds
Static time: 0-10 minutes 39 seconds
Environmental temperature: 0-35ºC
Relative humidity: ≤75%RH
Power: 300VA
Electrodes Gap Size: 2.5mm
Volume: 420×320×325mm
Weight: 28KG

Warranty: One year quality guarantee after shipment.

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
