• Model NO.：TOB-FX-10

Basic Info.

Model NO. TOB-FX-10

Product Description

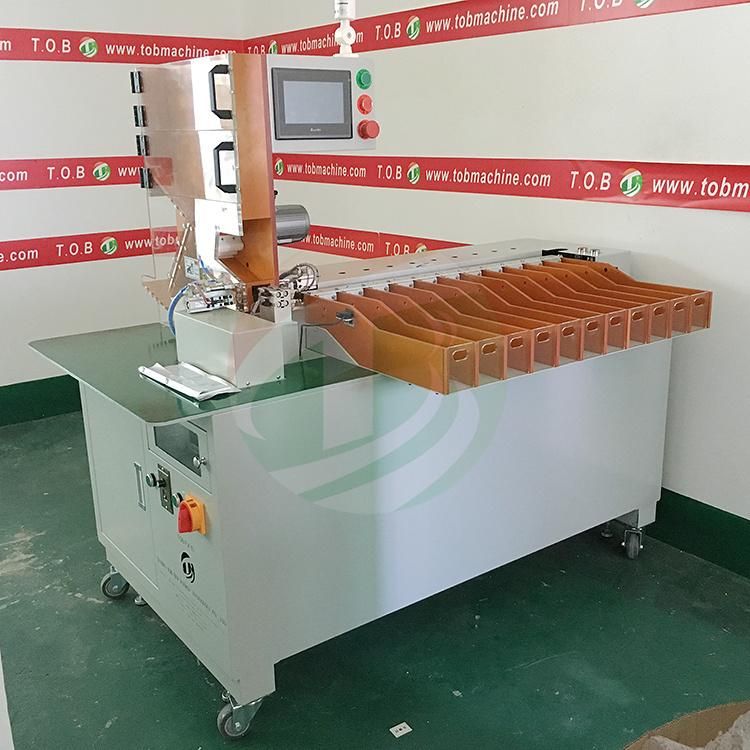

18650 Lithium Battery Automatic Internal Resistance/Voltage Sorting Tester Machine

 1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.2. 10 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650, 26700 cells, sort by cell's voltage and impedance up to up to 10 groups3. Automatic sorting control4. Fast sorting speed (3600 batteries/hr)5. Easy to refill cells during the process6. Wheels design, easy to move the machine to any operating place

Model	TOB-FX-10
Voltage supply	220V/50HZ, can be customized
Power	1.6kw
Air Pressure	0.4-0.8Mpa
Display screen	7.5 inch touch screen, 3-axis PLC programmer
Suitable for	18650 battery
Receiving channel	11 channels, 10 sorting channels,  1 unqualified channel
Internal resistance setting	0mΩ-999.9 mΩ
Voltage setting	0-6V
Weight	<200KG
Code sweeping function	No, can be customized
Production efficiency	About 5000pcs/h
Feeding	By hopper, 500pcs cells one time
External connection	Customizable automatic connection padding machine
Tester	Standard tester: HOPETECH HK3560 High speed tester Voltage accuracy 0.00005V Internal resistance precision 0.01 mΩ

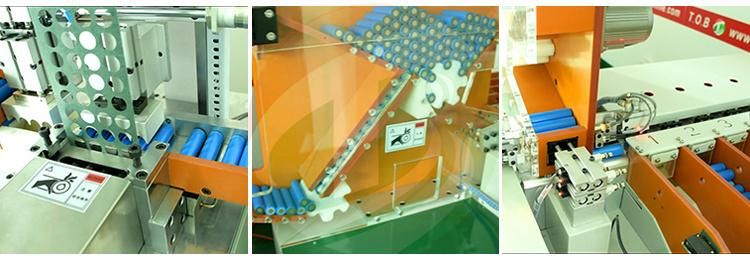

Motion device	Step shifting using closed-loop stepper motor, and the positioning is accurate. The synchronous belt conveys the cell to prevent the cell surface damaged
Advantage	1. Automatic collection the production quantity to show current production efficiency2. Test data can be stored in U disk3. Customizable scan code and database data docking4. Optional cell dynamic tester, Practical embodiment the quality and load performance of cell5. The equipment debugging is simple, easy to learn and easy to understand, with fault alarm
Package size	L1650*W1250*H1690mm
Weight	About 350kg

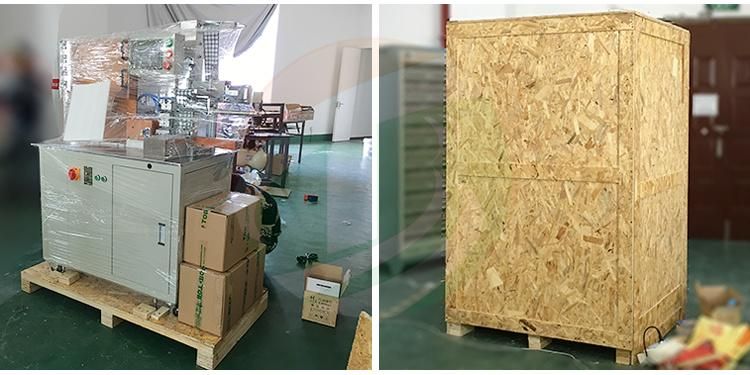

Standard Packing
