Tumbling Barrel for IEC 60068-2-31 and BS 1363 Test Equipment
Guangzhou Zhilitong Electromechanical Co., Ltd.- Warranty:One Year
- Type:Plug & Socket Tester
- Load Way:Mechanical Load
- Display:Digital
- Control:Electricity
- Weight:100-500Kg
Base Info
- Model NO.:ZLT-GT2A
- Power Source:AC220V
- Usage:Simulate Repeated Falls
- Certification:CNAS Calibration Provided
- Material:Stainless Steel ,Hard Wood
- MOQ:1 PC
- Delivery:in 20-25 Days
- Transport Package:in Plywood Carton
- Specification:IEC60598 IEC60068-2-32 BS1363 figure 20 IEC60312
- Trademark:ZLTJC
- Origin:Guangzhou, Guangdong, China
- HS Code:9031809090
- Production Capacity:Stock Available
Description
Basic Info.
Model NO. ZLT-GT2A Power Source AC220V Usage Simulate Repeated Falls Certification CNAS Calibration Provided Material Stainless Steel ,Hard Wood MOQ 1 PC Delivery in 20-25 Days Transport Package in Plywood Carton Specification IEC60598 IEC60068-2-32 BS1363 figure 20 IEC60312 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock AvailableProduct Description

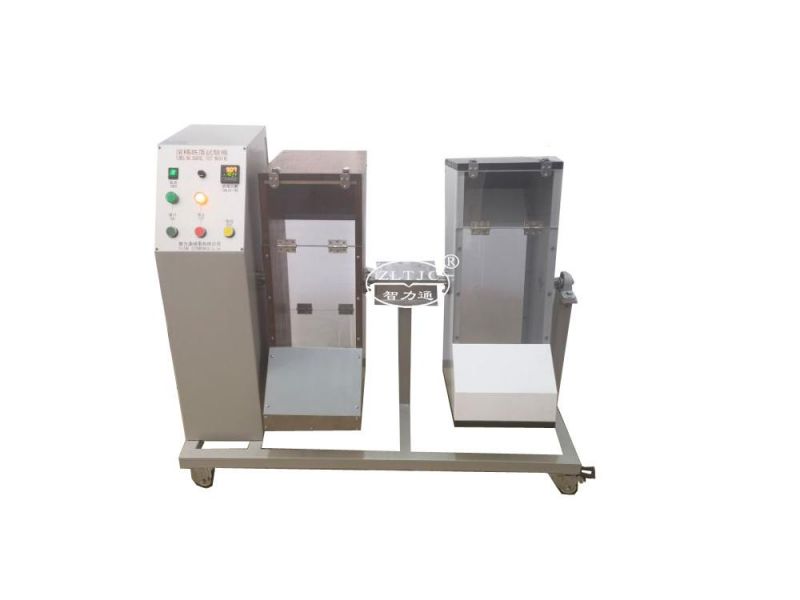

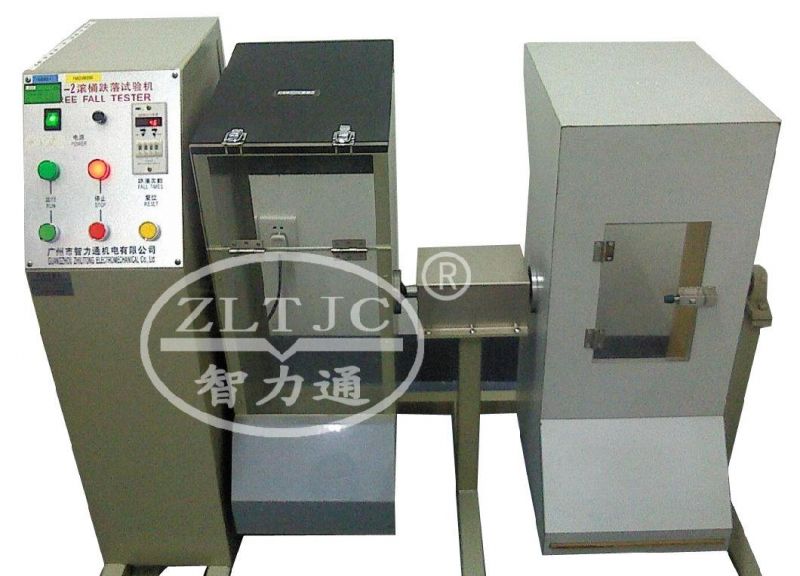

Tumbling Barrel Test Machine for IEC 68-2-31 and BS 1363.Product details: The ZLT Tumbling Barrel Tester simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.
Model: ZLT-GT2A, is to determine the mechanical strength of electrical appliances or electrical components in accordance with IEC60068-2-32 Amendment 2,and BS 1363 figure 20, employs a large clear acrylic access door for easy viewing and access to the chamber.

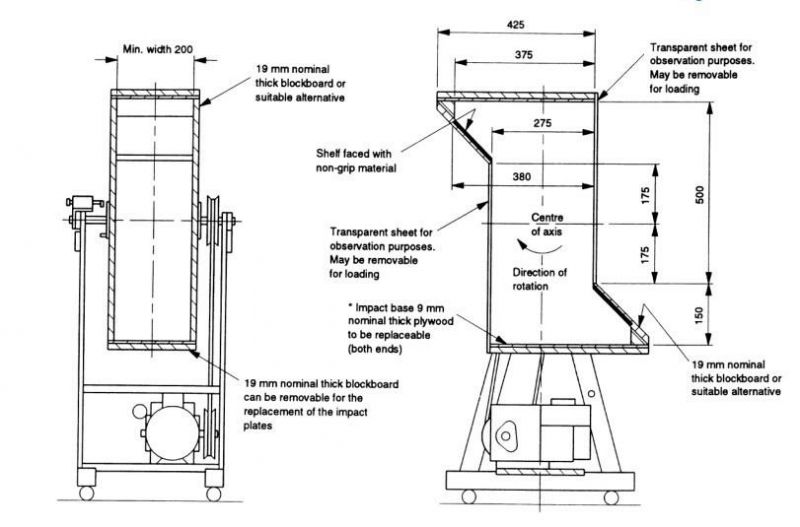

Inner height: 675mm and 650mm
Fall height: 500mm .
Chute length: 275mm.
Bottom Impact Surface: 3mm steel backed with 19mm hardwood.
