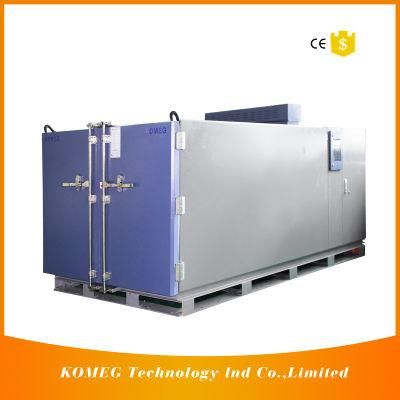

Stainless Steel Environmental Test Chamber Walk-in Test Chamber for Diesel Generator and Motors

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V ,220V
  • Certification：CE, ISO
  • Warranty：1 Year
  • Interior Size：W 2000 mm X H 2700 mm X D 2200 mm
  • Exterior Size：W 2200 mm X H 3000 mm X D 3650 mm
  • Temperature Range：10ºC ~70ºC

Base Info

  • Model NO.：KMHW-12R
  • Temp. Fluctuation：±0.5ºC
  • Temp. Uniformity：Temp. Uniformity
  • Temp. Deviation：≦±2.0ºC
  • Heat up Rate：Average 2° C , Min
  • Cooling Rate：Average 3°c,Min
  • Construction：Split Type and Installation on Site
  • Inside Material：SUS304 Stainless Steel
  • Transport Package：Standard Wooden Case
  • Specification：About 12m³
  • Trademark：KOMEG
  • Origin：Mainland, China
  • HS Code：90321000
  • Production Capacity：1000PCS,Year

Description

Specification of Walk-in ChambersModelKMHW-12Volume(m³)12CBMInterior DimensionsExterior DimensionsSafety Devices(standard)No fuse breaker, overpressure, overheat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicatorControl SystemBalanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor, single-stage or cascade refrigeration system,CFC free refrigerantControllerPanel7-inch LCD Touch panel, Chinese or English display selectableOperation modelProgram or fixpoint runningMemory capacity120 programs,1200steps, all repeat 999 cycles, part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or ~5V DCVComm.portRS-232 or RS-485 (Software is an option)Temp. rangeMaximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºCHumidity Range10%,20%,30%~95%Temp. constancy±0.5 ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0 ºCHumidity uniformity±5.0%R.HAmbient Temp.+5 ºC~+35 ºCWiring methodAC 380±10% 50Hz,3 phase 4 wires +Ground WiresHeat uptime+20 ºC~+80 ºC, Within 60 minPull downtime+20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Note:
1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available

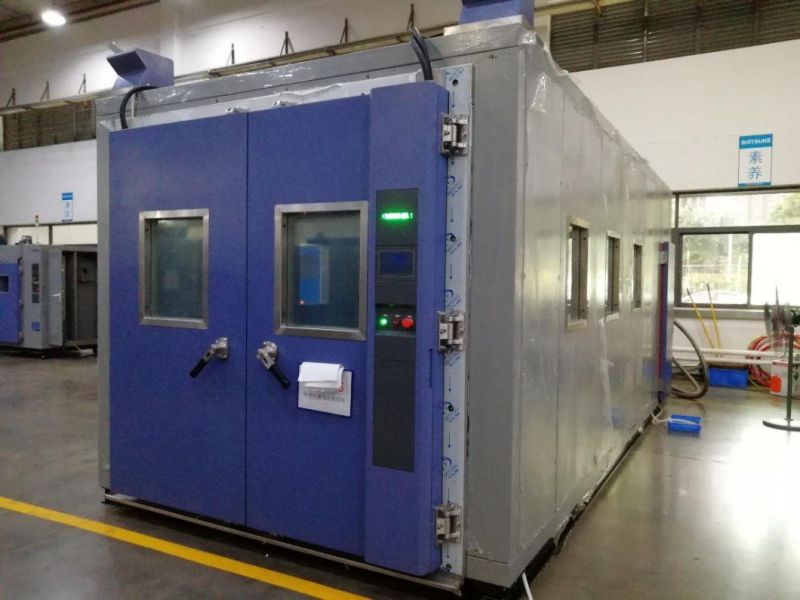

Stainless Steel Environmental Test Chamber Walk-in Test Chamber for Diesel Generator and Motors
Our climate chambers are high-precision appliances for environmental simulation. These chambers are able to generate exact climate profiles and climatic cycles as well as allowing you to perform alternating temperature tests with and without the addition of humidity. Our aim is to offer you the best possible tools for quality assurance through validated test results with maximum reproducibility.
Stainless Steel Environmental Test Chamber Walk-in Test Chamber for Diesel Generator and MotorsStainless Steel Environmental Test Chamber Walk-in Test Chamber for Diesel Generator and Motors

Designed for demanding environmental simulations, KOMEG Climate Chambers produce an extremely uniform and stable temperature and humidity distribution. Humidity is maintained accurately and quickly, thanks to the innovative dew point humidity control. Quiet operation and availability of carbon-neutral models distinguish Kambic climate chambers as high-end products for research and development studies, quality control, production facilities and laboratory testing. With our environmental test chambers, you can perform precise temperature and climatic tests, weather, ageing and stability tests.
Stainless Steel Environmental Test Chamber Walk-in Test Chamber for Diesel Generator and MotorsStainless Steel Environmental Test Chamber Walk-in Test Chamber for Diesel Generator and Motors
FAQ

Q1: What is your Warranty service for the KOMEG machine/chamber?
A1: We offer a 1-year warranty service. If any quality problems on our side occurred in this period, we will send you a replacement and cover the cost of shipping and component parts.

Q2: What's your period and terms of delivery?
A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangements to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.

Q3: What're your terms of payment?
A3: T/T, L/C, and other payment terms are all acceptable.

Q4: Is it ok for the customization service?
A4: Yes, inner chamber size, structure, color, other special parameters can be all customized as per your own specific request.
