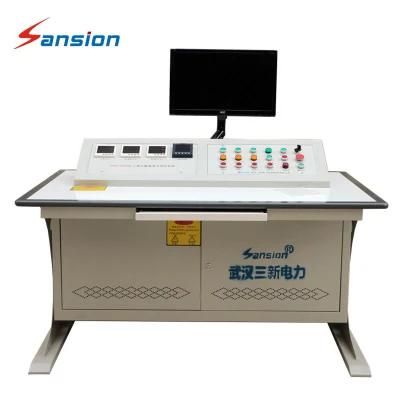

Best Price Primary Injection High Current Test Set for Current Load Test 5000A Primary Current

Sansion Power Electric Co., Ltd.
  • Accuracy Grade：0.5
  • Display：Digital,Needle,LED at Option
  • Control：Manual,Auto at Customized
  • Weight：0-100Kg
  • Power Source：AC 110V,220V at Customized
  • Oil Cylinder Position：Under

Base Info

  • Model NO.：DDG
  • Output Current：500~10000A
  • Input Voltage：220V or 380V
  • Transport Package：Plywood Case
  • Specification：IEC ISO9001 SGS
  • Trademark：Sansion
  • Origin：Wuhan, China
  • HS Code：9030339000
  • Production Capacity：100 Units

Description

ModelRated Capacity
(KVA)Rated InputRated OutputImpendence Voltage
%No-load Current
%StructureRegulatorCurrent InjectorCurrent(A)Voltage(V)Current(KA)Voltage(V)DDG-1.5/5001.51.56.82200.53<8<6CompactDDG-3/10003313.602200.5/16/3<8<6Compact/SeparateDDG-6/20006627.002201/26/3<8<6SeparateDDG-12/4000121237.504002/46/3<8<6SeparateDDG-15/5000151537.504002.5/56/3<8<6SeparateDDG-30/100003030754005/106/3<8<6SeparateDDG-45/150004545112.54007.5/156/3<8<6SeparateNote:"Rated output", left value is output in series, right value is in parallel
For example"0.5/1":"0.5"is in series;"1"is in parallel.

Please contact with us for further information, our  technically expereinced expertise team will select correctly designed test set for you.

Warranty: One year quality guarantee after shipment.
