• Model NO.：NRM-7
• Power Source：DC
• DC Voltage：60kv, Other Voltage Can Be Optional
• Pulse Voltage：100kv
• Bandwidth：120MHz
• Cable Impedance：50 Ohms
• Accuracy for 2Hz：< 0.15%
• Accuracy for 2Hz-200Hz：< 1.5%
• Accuracy for 200Hz-5MHz：< 2%
• Accuracy for >5MHz：< 4%
• Input R/C (Megaohm/PF)：400,8
• Standard Voltage Ratio：1000:1
• Length of Cable：4.5
• Transport Package：Plywood Case
• Trademark：NANR
• Origin：Wuhan China
• HS Code：9030339000
• Production Capacity：5000 Sets Per Year

Basic Info.

Model NO. NRM-7 Power Source DC DC Voltage 60kv, Other Voltage Can Be Optional Pulse Voltage 100kv Bandwidth 120MHz Cable Impedance 50 Ohms Accuracy for 2Hz < 0.15% Accuracy for 2Hz-200Hz < 1.5% Accuracy for 200Hz-5MHz < 2% Accuracy for >5MHz < 4% Input R/C (Megaohm/PF) 400/8 Standard Voltage Ratio 1000:1 Length of Cable 4.5 Transport Package Plywood Case Trademark NANR Origin Wuhan China HS Code 9030339000 Production Capacity 5000 Sets Per Year

Product Description

1. Product Introduction

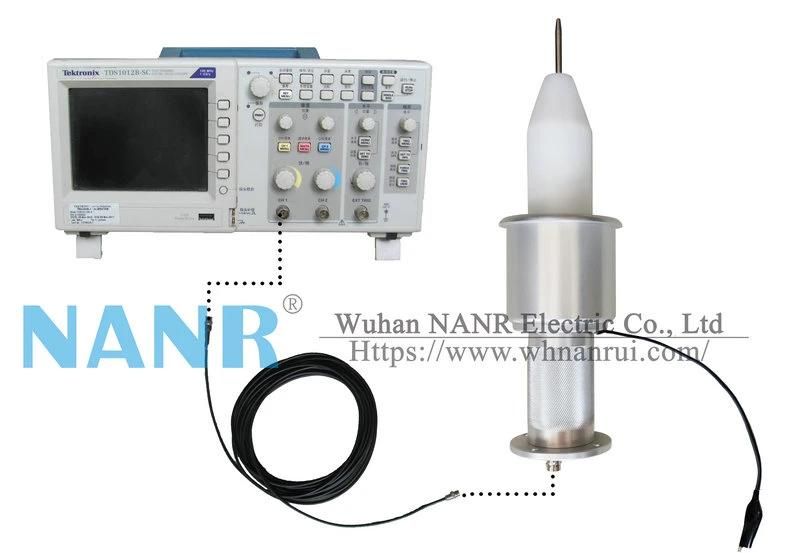

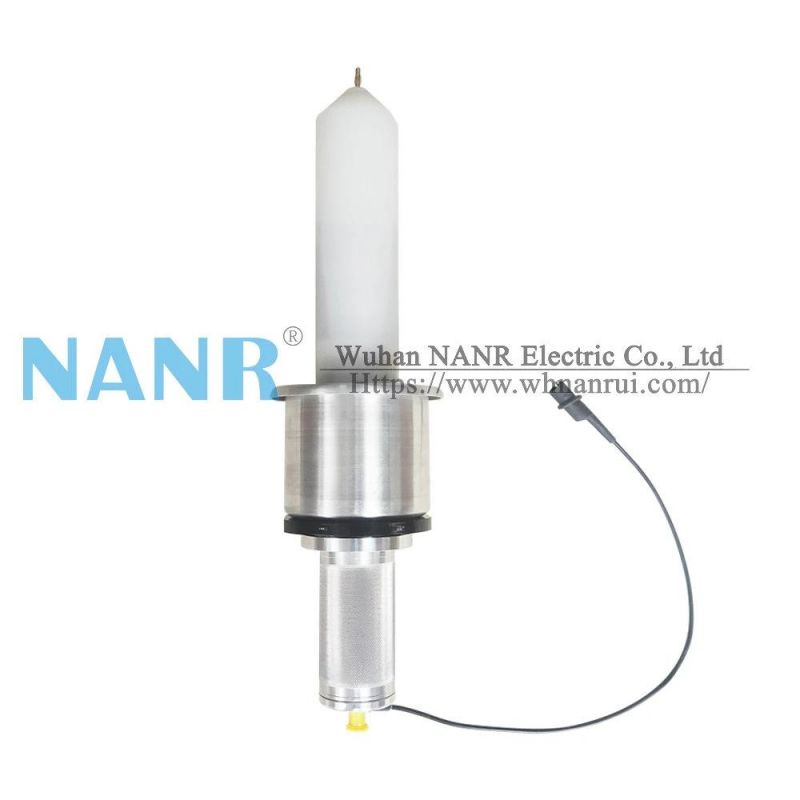

NRM series high voltage probe is used in the development and testing of DC high-voltage power supplies, X-ray power supplies, electrostatic precipitator power supplies, medical power supplies, CT or PECT drive power supplies or various pulse high-voltage power supplies.
This newly developed high-voltage probe, not only can it meet the most demanding space electric field interference environment, but it can also be used under special temperature and environment. It has been tested and approved by many top universities and laboratories in China. Some users of this series of high-voltage probes include the Strong Magnetic Field Center of Huazhong University of Science and Technology, Tsinghua University, North China Electric Power University, Wuhan University of Technology, Southwest Institute of Physics for Nuclear Industry and other units..

2. Technical parametersRemarks:

Item	NRV-60	NRV-100	NRV-150	NRV-200	NRV-300	NRV-400
DC/Pulse voltage (kV)	60/120	100/180	150/240	200/300	300/420	400/550
Max frequency (MHz)	20	20	20	16	12	8
Length of cable (m)	9.2	9.2	9.2	9.2	9.2	9.2
DC Accuracy	< 0.1%	< 0.1%	< 0.1%	< 0.1%	< 0.1%	< 0.1%
10Hz-1MHz Accuracy	1%	1%	1%	2%	2.5%	3%
>1MHz Accuracy	3%	3%	3%	3%	4%	4%
Impedance (Mohms)	800	1600	2000	2800	4500	7000
Length (cm)	50	60	75	99	135	180
Diameter (cm)	28	28	29	40	61	61
Capacity (about pf)	27	25	27	24	20	16
Base diameter (cm)	25.4	25.4	30	50.8	76	76
Standard voltage ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1

Voltage: higher voltage can be customized.

3. Product characteristics
1) Standard BNC interface, compatible with all manufacturers of oscilloscopes;
2) Configure special interface to connect the oscilloscope or multimeter to measure;
3) NRV series high voltage probe adopts the low temperature coefficient resistors imported from America and capacitors which is extremely stable for temperature, frequency and voltage;
4) NRV series high voltage probe using fully symmetrical shielding measures to reduce the proximity effect (stray capacitance) and maximally guarantee the consistency and stability of the test;
5) The high and low frequency of NRV series high voltage probe had been calibrated strictly, even the coaxial cable for high frequency is also compensated by frequency, so that to ensure each frequency band can realize accurate measurement;
6) NRV series high voltage probe trough special compensation, it does not need additional calibration when using different manufactures of oscilloscope.
