• Model NO.：GD-H1035
• Loading Method：Dynamic Load
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• ASTM D874：Sulfated Ash From Lubricating Oils and Additives
• Applicable Standards：GB,T2433, ISO3987, ASTM D874
• Heating Method：Imported Electric Heating Wire Heating
• Temperature Control Mode：Imported Pid Temperature Controller
• Temperature Control Range：Normal Temperature ~800c
• Temperature Control Accuracy：+,-10c
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：refer to ASTM D874
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1035 Loading Method Dynamic Load Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under ASTM D874 Sulfated Ash From Lubricating Oils and Additives Applicable Standards GB/T2433, ISO3987, ASTM D874 Heating Method Imported Electric Heating Wire Heating Temperature Control Mode Imported Pid Temperature Controller Temperature Control Range Normal Temperature ~800c Temperature Control Accuracy +/-10c Warranty 1 Year Transport Package Wooden Case Specification refer to ASTM D874 Trademark GOLD Origin China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

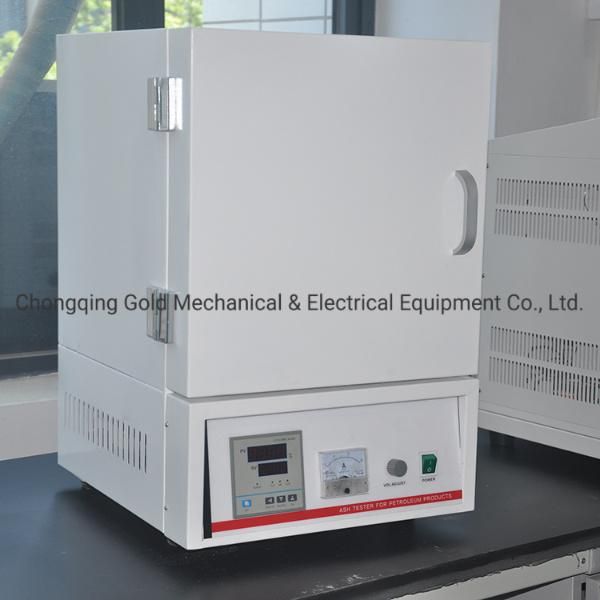

GD-H1035 Ashing Furnace for Ash Determination according to ASTM D874 Sulfated Ash Content Test


Introduction:

1. The Sulfated ash test method (ASTM D 874) has long been used as a quantitative measure of the ash forming metallic constituents in the lubricating oils and additives. to To measure sulfated ash in lubricants by igniting the sample burning it in a crucible until only ash and carbon remain.
2. The Ashing Furnace mainly applies to unused lubricating oils containing additives and from additive concentrates in biodiesel. The sample is ignited and burned in a crucible until only ash and carbon remain. After cooling, the residue is treated with sulfuric acid and heated at 775°C until carbon oxidation is complete. The ash is then cooled, re-treated with sulfuric acid, and heated at 775°C to constant weight. The final weight is the sulfated ash content.


Parameters:

1. Applicable standards: GB/T2433, ISO3987, ASTM D874
2. Heating method: imported electric heating wire heating
3. Temperature control mode: imported PID temperature controller
4. Temperature control range: normal temperature ~800ºC
5. Temperature control accuracy: ±10ºC


Key Features:

1. The hot ceramic furnace has good heat preservation effect to avoid burns to the staff
2. Microcomputer processing and PID control, digital display setting and actual temperature, accuracy 0.1ºC, Pt100 RTD temperature probe
3. Porcelain silicon evaporating dish, 50~100ml, 120~150ml, in line with standard requirements
4. Loose-leaf furnace door, convenient to switch
5. The electrical control box is separated from the heating box to reduce damage to the electrical box caused by high temperature
6. Split structure, easy to operate
7. Imported electric furnace wire heating, extending the service life
8. The casing is made of high quality cold rolled steel plate


Ashing Furnace for Ash Determination according to ASTM D874 Sulfated Ash Content Test:
