• Model NO.：GDOT-3B
• Weight：0-100Kg
• Power Source：AC220V
• Output voltage：0-100kV optional
• Power distortion rate：<3%
• Voltage increasing speed：0.5~5kV,s adjustable
• Voltage accuracy：2%* reading + 2 digital
• Transport Package：Standard Export Wooden Box
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan, China

Basic Info.

Model NO. GDOT-3B Weight 0-100Kg Power Source AC220V Output voltage 0-100kV optional Power distortion rate <3% Voltage increasing speed 0.5~5kV/s adjustable Voltage accuracy 2%* reading + 2 digital Transport Package Standard Export Wooden Box Specification ISO, SGS Trademark HV Hipot Origin Wuhan, China

Product Description

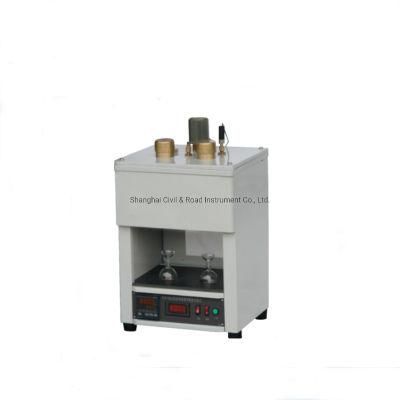

GDOT-3B 100kV 3 Cups Insulation Oil Breakdown Voltage (BDV)Tester/Insulation Oil Dielectric Strength Tester

GDOT-3B 100kV 3 Cups Insulation Oil Breakdown Voltage Tester GDOT-3B takes a single-chip microcomputer as the core, realizes all the test automation, high measurement accuracy, greatly improves the work efficiency, and also greatly reduces the labor intensity of the staff.


Standards

IEC 156:1995 Insulating liquids- Determination of the breakdown voltage at power frequency


Features

Adopts a microprocessor, three cups in one, and automatically completes the operations of boosting, holding, stirring, standing, calculating, printing, etc., and can perform oil circulation withstand voltage test in the range of 0-100kV.
LCD screen display.
The operation of this instrument is simple, the operator only needs to make simple settings, and the instrument will automatically complete the test of 1-3 oil samples according to the settings. For each oil sample, the breakdown voltage value and number of cycles are automatically stored. After the test is completed, the thermal printer can print out the breakdown voltage value and average value of each oil sample.
Power-down hold, can store 100 test results, and can display the current ambient temperature and humidity.
It adopts single-chip microcomputer control for uniform speed boost, and the voltage frequency is accurate to 50Hz, making the whole process easy to control.
With over-voltage, over-current limit and other protection to ensure the safety of operators.
With temperature measurement display function and system clock display.
Standard RS232 interface, can communicate with computer.


Specifications


Output voltage	0-100kV optional
Power distortion rate	<3%
Voltage increasing speed	0.5~5kV/s adjustable
Display	Large LCD screen
Electrode gap	standard 2.5mm
Boost times	1~10 times
Standing time	15 min (adjustable)
Boost interval	5 minutes (adjustable)
Booster capacity	1.5kVA
Measurement accuracy	±3%
Power input	AC220V± 10%, 50Hz±1Hz
Power	200W
Working temperature	0-45ºC
Humidity	<75%RH
Dimension	585mm*390mm*410mm
Weight	43kg
